Features :

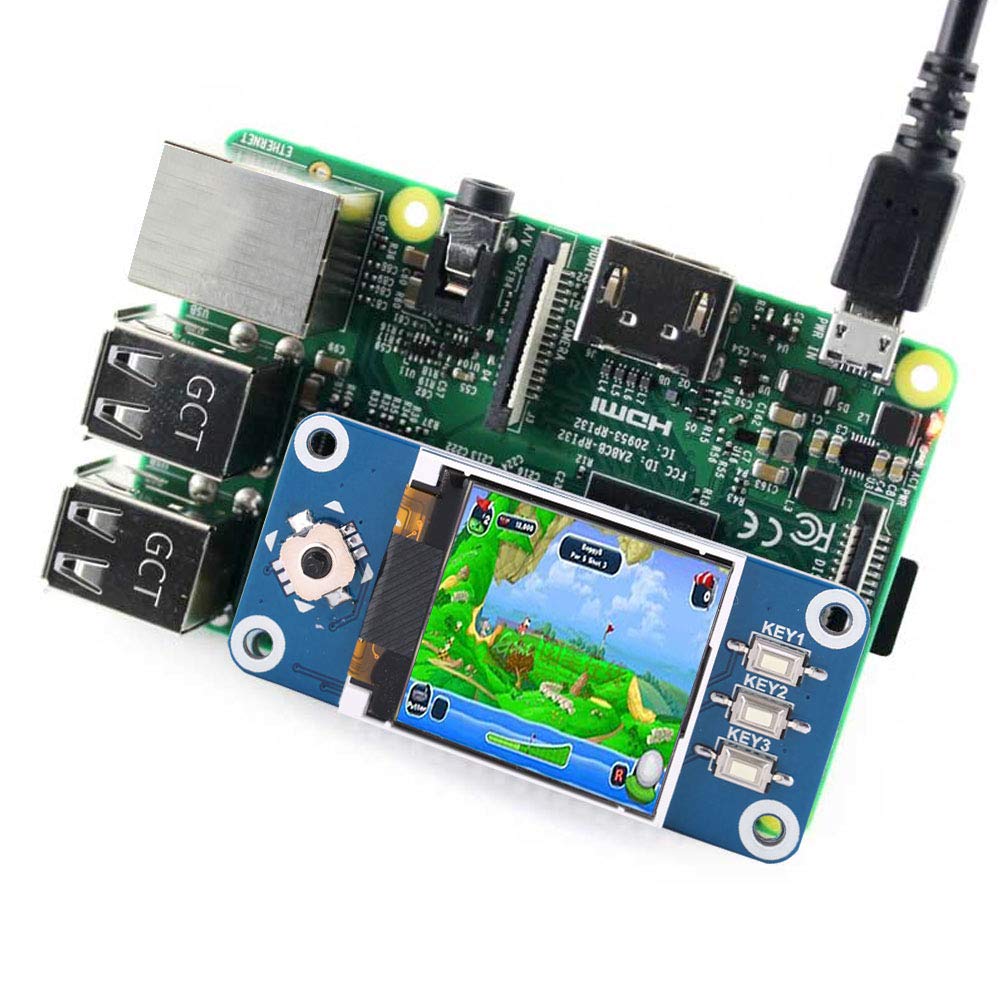

1 . It is an ideal replacement for raspberry monitors .
2 . Standard for raspberry connection , compatible for raspberry 2B / 3B / zer0 / zer0 W and can be inserted directly .

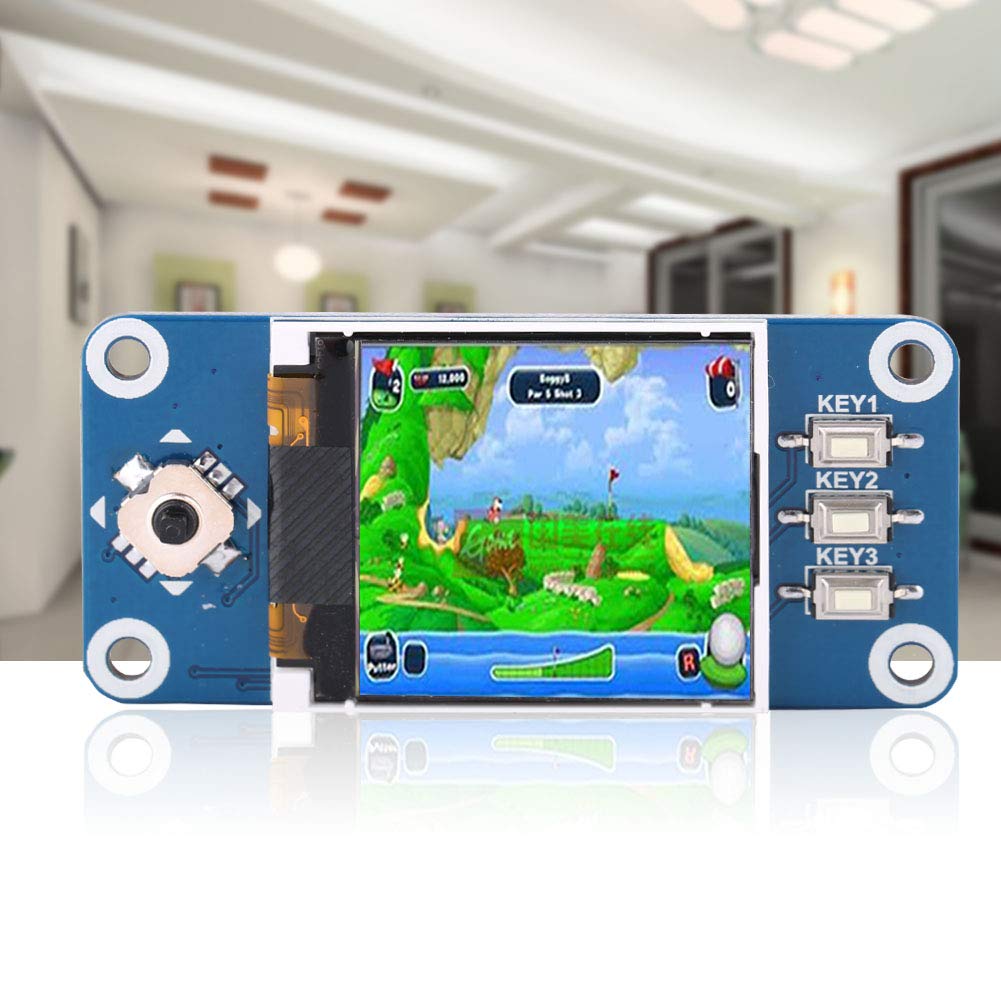

3 . 128 x 128 resolution , better display effect .
4 . 1 joystick (5 positions) , 3 buttons , convenient and practical .
5 . With development resources and manual (examples for raspberry / for arduin / STM32) .
Specification :
Driver : ST7735S
Interface : for SPI
Display color : RGB , 65K color
Resolution : 128x128
Backlight : LED
Operating voltage : 3 . 3V
Size : 6 . 5 * 3 m / 2 . 6 * 1 . 2 in
Weight : approx . 22g
Interface :
SYMBOL
For raspberry PIN (BCM)
DESCRIPTION
KEY1
P21
Button 1/GPIO
KEY2
P20
Button 2/GPIO
KEY3
P16
Button 3/GPIO
Joystick Up
P6
Joystick Up
Joystick Down
P19
Joystick Down
Joystick Left
P5
Joystick Left
Joystick Right
P26
Joystick Right
Joystick Press
P13
Joystick Press
SCLK
P11/SCLK
for SPI clock input
MOSI
P10/MOSI
for SPI data input
DC
P25
Data/Command selection (high for data , low for command)
CS
P8/CE0
Chip selection , low active
RST
P27
Reset , low active
BL
P24
Backlight
Package list :
1 * Screen Module
1 * Screw Kit
