for PI zero2 W Dual Network Expansion Board USB-to-Ethernet HUB Type-C Powered Ethernet/USB2.0 HUB HAT Expansion Board for PI Zero/Zero W, Zero 2W (Expansion Board+case)
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

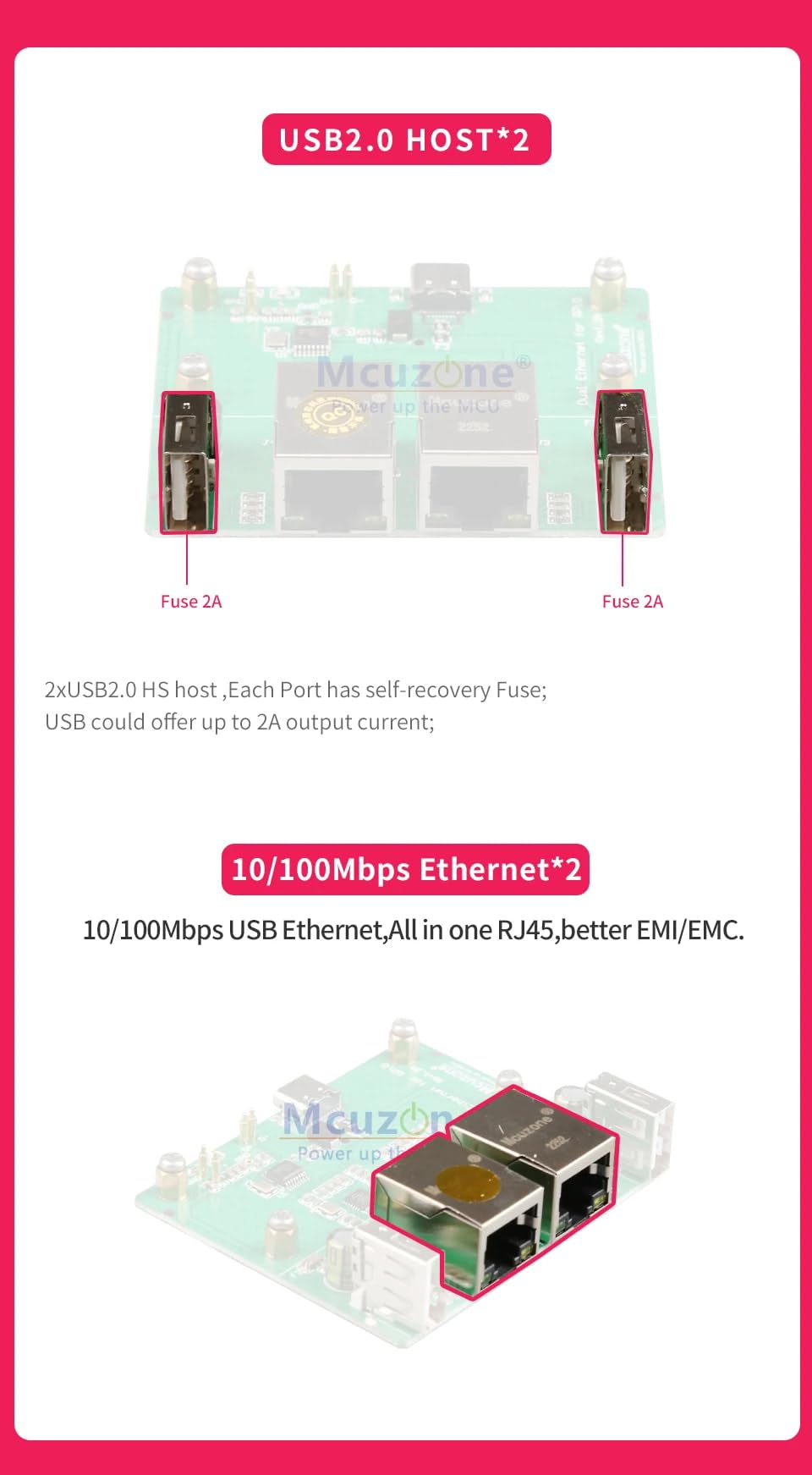

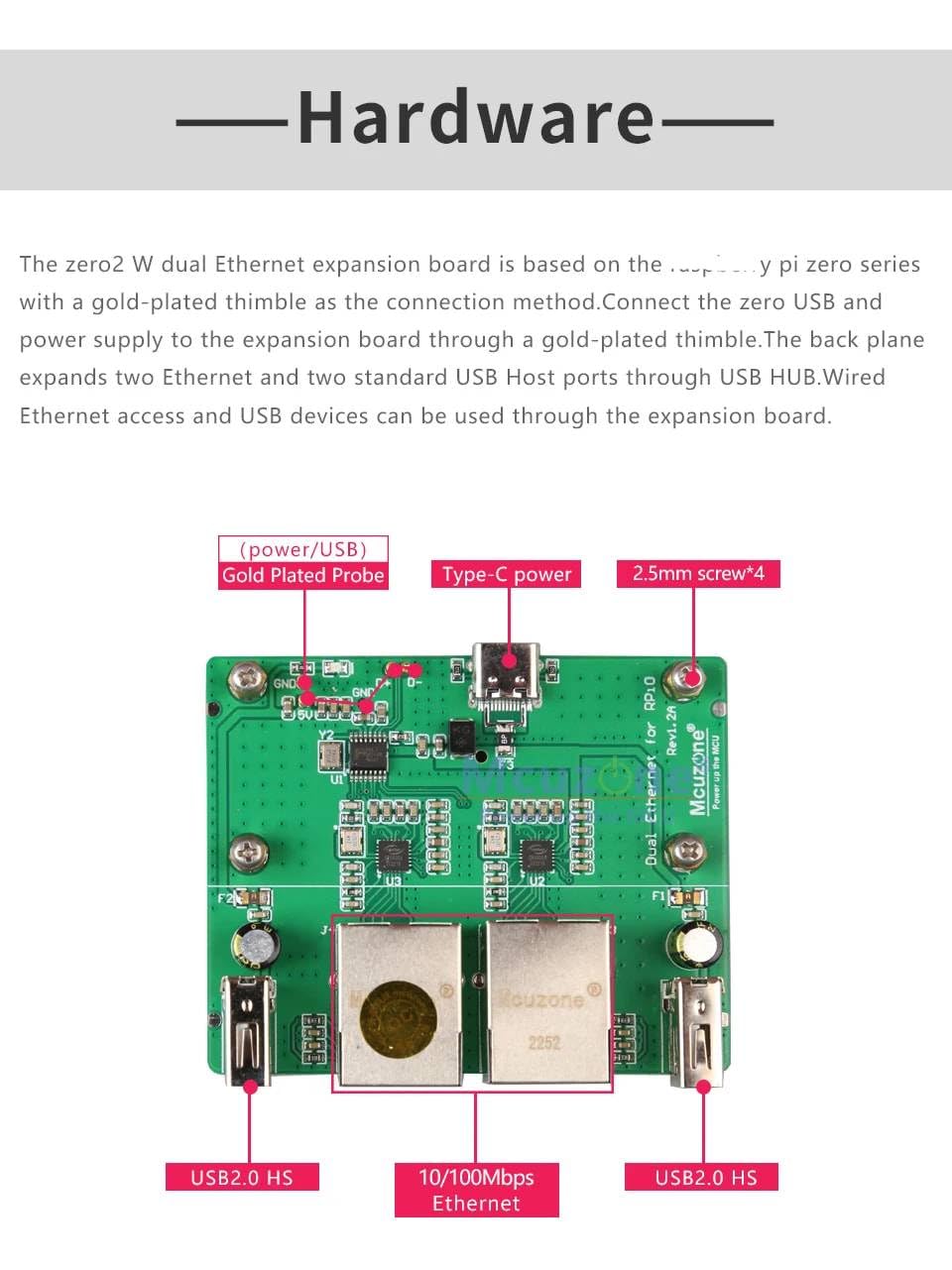

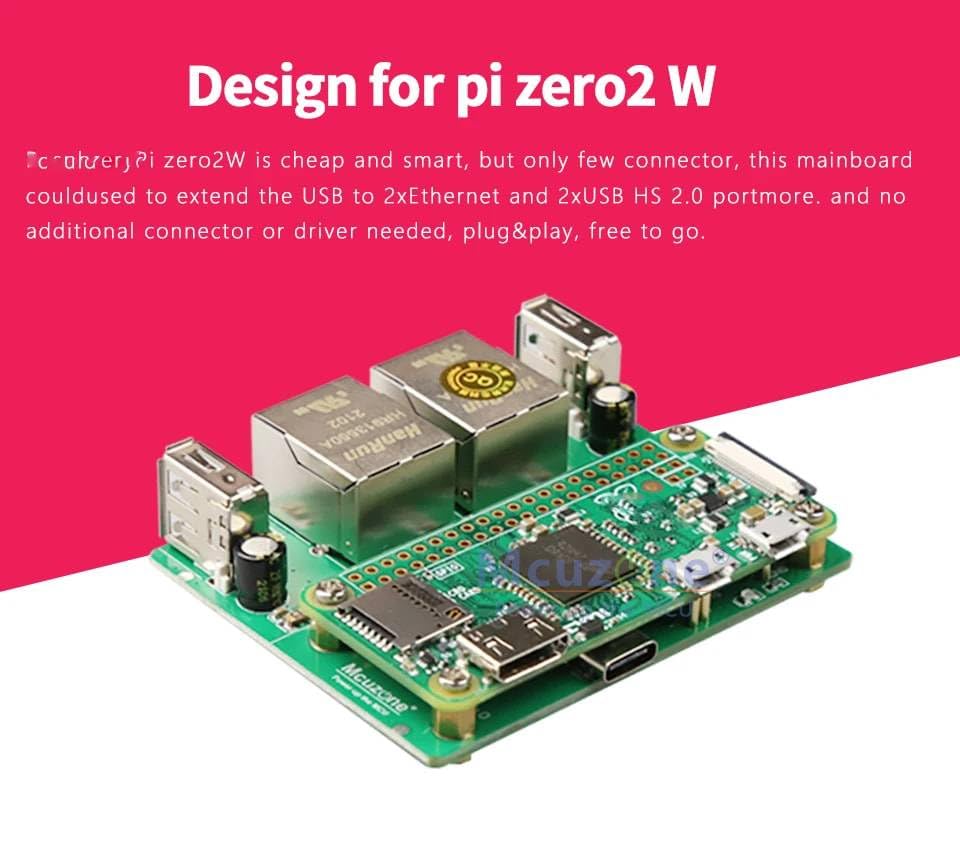

•Integrated USB to Ethernet drive free, plug and play.Megabit single-port expansion board is based on the PI zero2 series of a gold-plated thimble as the connection mode of the carrier board. Connect the zero's USB and power supply to the baseplate via a gold-plated thimble. Baseboard is expanded via USB HUB.Two Gigabit Ethernet ports and two standard USB Host ports are displayed. The expansion board enables wired Ethernet Access and USB devices.
•Optional aluminum alloy shell: Aluminum alloy material is more conducive to heat dissipation, size fit,

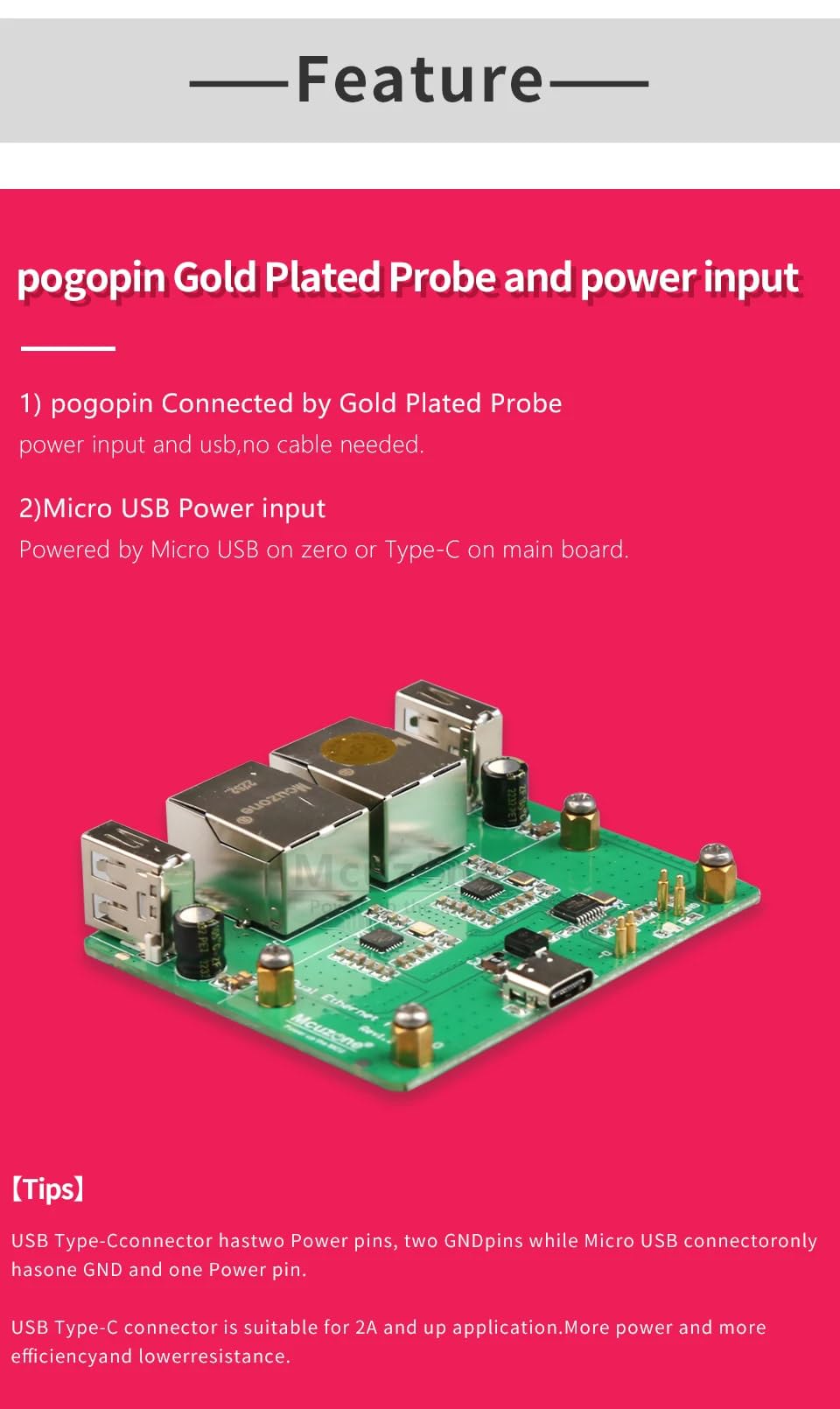

•pogopin thimble connection, power supply and communication, simple and reliable, does not occupy the PI GPIO pin; Onboard USB Type-C power supply interface, can be powered through this Type-C, for PI zero no power supply; It is recommended that the Type-c interface supply power for large current output. USB 2.0 high-speed host interface, each USB has a self-recovery protection circuit;
