Note: Please be aware that products from the USA may come with an input voltage of 110V - 120V, requiring the use of an appropriate step-down transformer for compatibility. Understanding the device's wattage is essential for selecting the correct power converter.
Product Specifications
| Condition | new |
|---|---|
| Asin | B07T72XF62 |
| Category | Tools & Home Improvement |
| Subcategory | Multi Testers |
| Leafcategory | BISS Basic |
| MPN | Acogedor3knfgwghrq |
| Color | Black |
| Origin | USA |
| Brandname | Acogedor |
| Height | 3.94 |
| Length | 3.94 |
| Width | 3.94 |
| Weight | 1 |
Product Details
GUARANTEE: If there any issue about this product, please us, we will give the best solution in the first time. we guarantee replacement or refund.
What's Inside The Box ?
1 x Non-Contact Phase Sequence Detector;1 x User Manual
Product Ranking
#5 in Ohmmeters
#144780 in Industrial & Scientific
Product Description
Specification:
Model: ETCR1000C
Functions: Phase detection (Positive phase, reverse phase and phaseloss), Live wire examination, Simple Power detection, Breakpoint location and Line maintenance.
Power Supply: DC 3V2*AA dry battery , Continuously working for 70 hours
AC Voltage Range(V): AC 70 - 1000V, 40/65Hz (Sine Continuous Input)
Clamp Wire Size: External Diameter 1.6-16mm

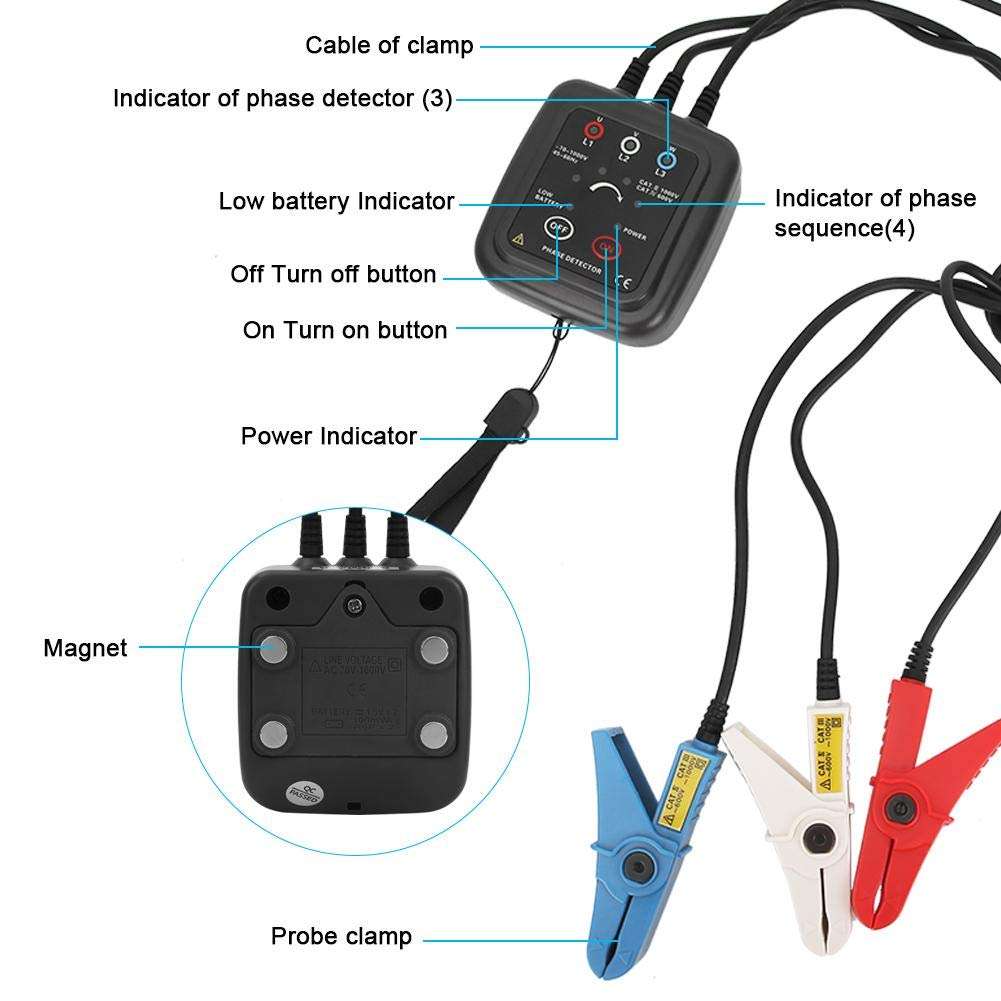

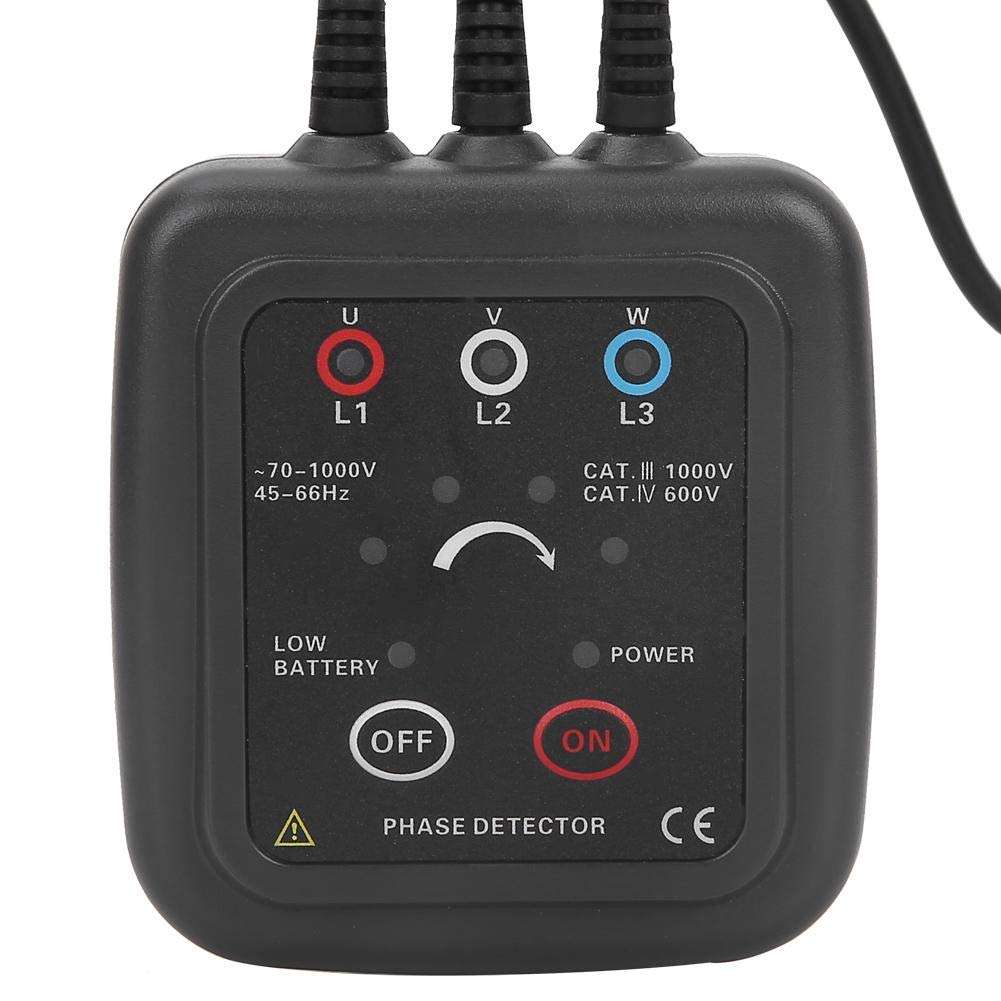

LED Display:
(Positive Phase Sequence)
The four phase-sequence lamps light in order (clockwise).
(Negative Phase Sequence)
The four phase-sequence lamps light in order (counterclockwise).
(Live Power)L1,L2,L3 lamp light up in the voltage setting range.
(Phase Loss) L1 or L2 or L3 does not light.
(Short Circuit)L1 or L2 or L3 does not light.
Buzzing:
(Positive phase) The instrument emits intermittent short beeps;
(Reverse phase) The instrument emits a continuous long beep.
Power On Indication: Power on indication light turns on; Low power, low battery light on
Magnetic force: Four magnets on the back of the meter, which are attached to the distribution box and can withstand 800g quality.
Auto Power off: After 5 minutes, the meter automatically cut off power supply.
Meter Dimension: Width, height, thickness 70mm*75mm*30mm
Clamp Length: 0.6m
Weight: 317g
Working Temperature and Humidity: -10℃-55℃; below 80%rh
Storage Temperature and Humidity: -20℃-60℃; below 90%rh
Maximum Measured Voltage: AC 1000V
Dielectric Strength: 5.4kVrms
Maximum rated Power: 100mVA
Safety Provisions: EN61010-1: 2001, EN61010-031: 2002, Pollution level 2, CAT 3 (600V), Transient over-voltage 6000V
Package list:
1 * Non- Phase Sequence Detector
1 * User Manual
Product Description
Specification:
Model: ETCR1000C
Functions: Phase detection (Positive phase, reverse phase and phaseloss), Live wire examination, Simple Power detection, Breakpoint location and Line maintenance.
Power Supply: DC 3V2*AA dry battery , Continuously working for 70 hours
AC Voltage Range(V): AC 70 - 1000V, 40/65Hz (Sine Continuous Input)

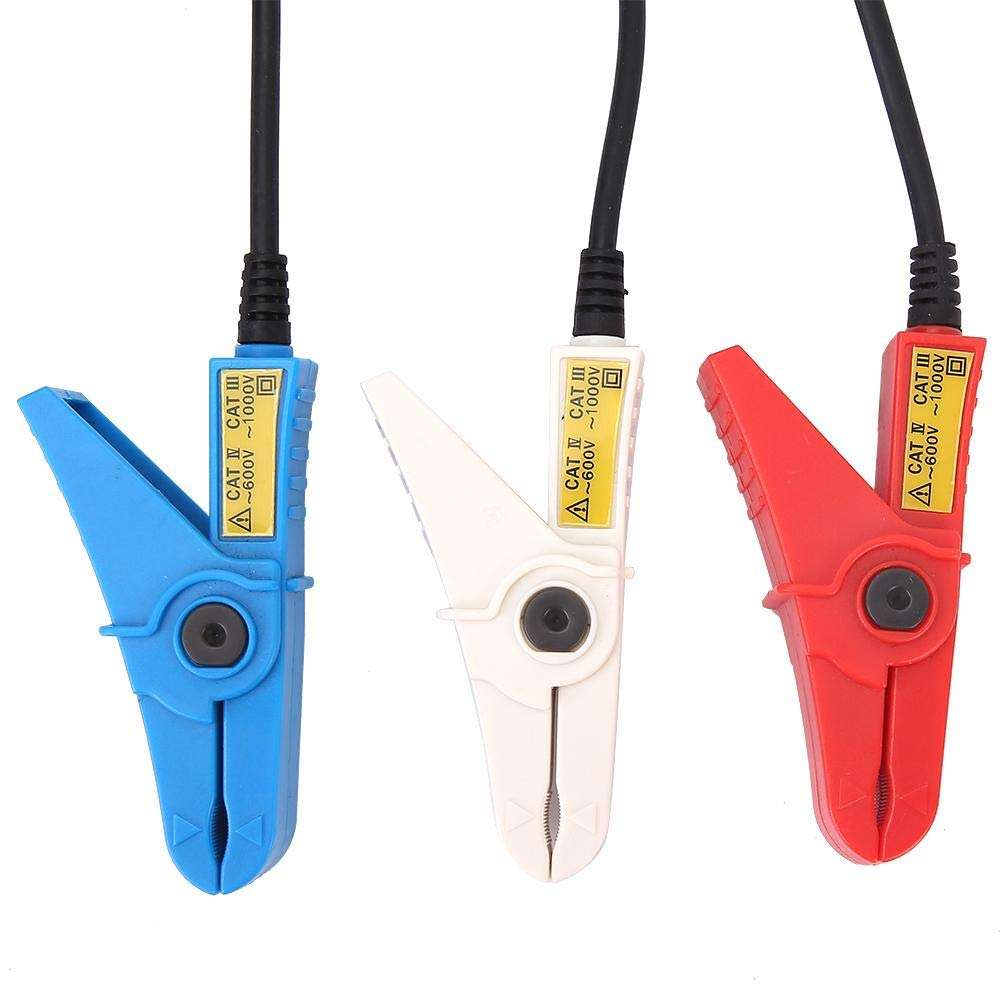

Clamp Wire Size: External Diameter 1.6-16mm
LED Display:
(Positive Phase Sequence)
The four phase-sequence lamps light in order (clockwise).
(Negative Phase Sequence)
The four phase-sequence lamps light in order (counterclockwise).
(Live Power)L1,L2,L3 lamp light up in the voltage setting range.
(Phase Loss) L1 or L2 or L3 does not light.
(Short Circuit)L1 or L2 or L3 does not light.
Buzzing:
(Positive phase) The instrument emits intermittent short beeps;
(Reverse phase) The instrument emits a continuous long beep.
Power On Indication: Power on indication light turns on; Low power, low battery light on
Magnetic force: Four magnets on the back of the meter, which are attached to the distribution box and can withstand 800g quality.
Auto Power off: After 5 minutes, the meter automatically cut off power supply.
Meter Dimension: Width, height, thickness 70mm*75mm*30mm
Clamp Length: 0.6m
Weight: 317g
Working Temperature and Humidity: -10℃-55℃; below 80%rh
Storage Temperature and Humidity: -20℃-60℃; below 90%rh
Maximum Measured Voltage: AC 1000V
Dielectric Strength: 5.4kVrms
Maximum rated Power: 100mVA
Safety Provisions: EN61010-1: 2001, EN61010-031: 2002, Pollution level 2, CAT 3 (600V), Transient over-voltage 6000V
Package list:
1 * Non- Phase Sequence Detector
1 * User Manual
