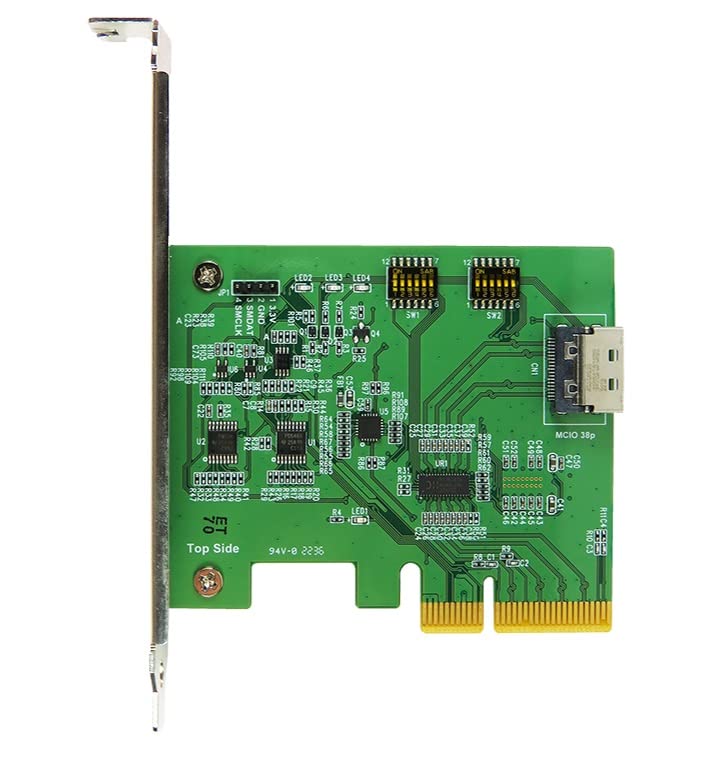

PCIe x4 Gen4 with ReDriver to MCIO 38P Add in Card

‌PCIe x4 Gen4 with ReDriver to MCIO 38P Add In Card

Features :

Supports Server BMC management

Supports Industrial Grade temperature range

MCIO 38P to PCI Express x4 Gen4 convert

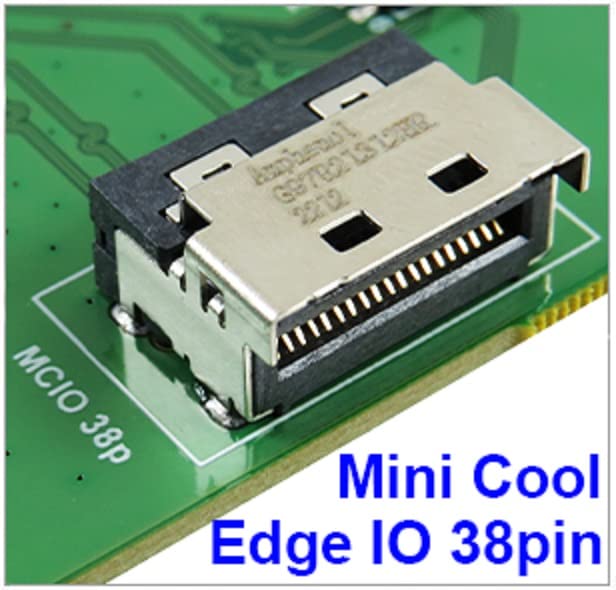

Built- in SFF-TA-1016/MCIO 38P, 30u Gold connector

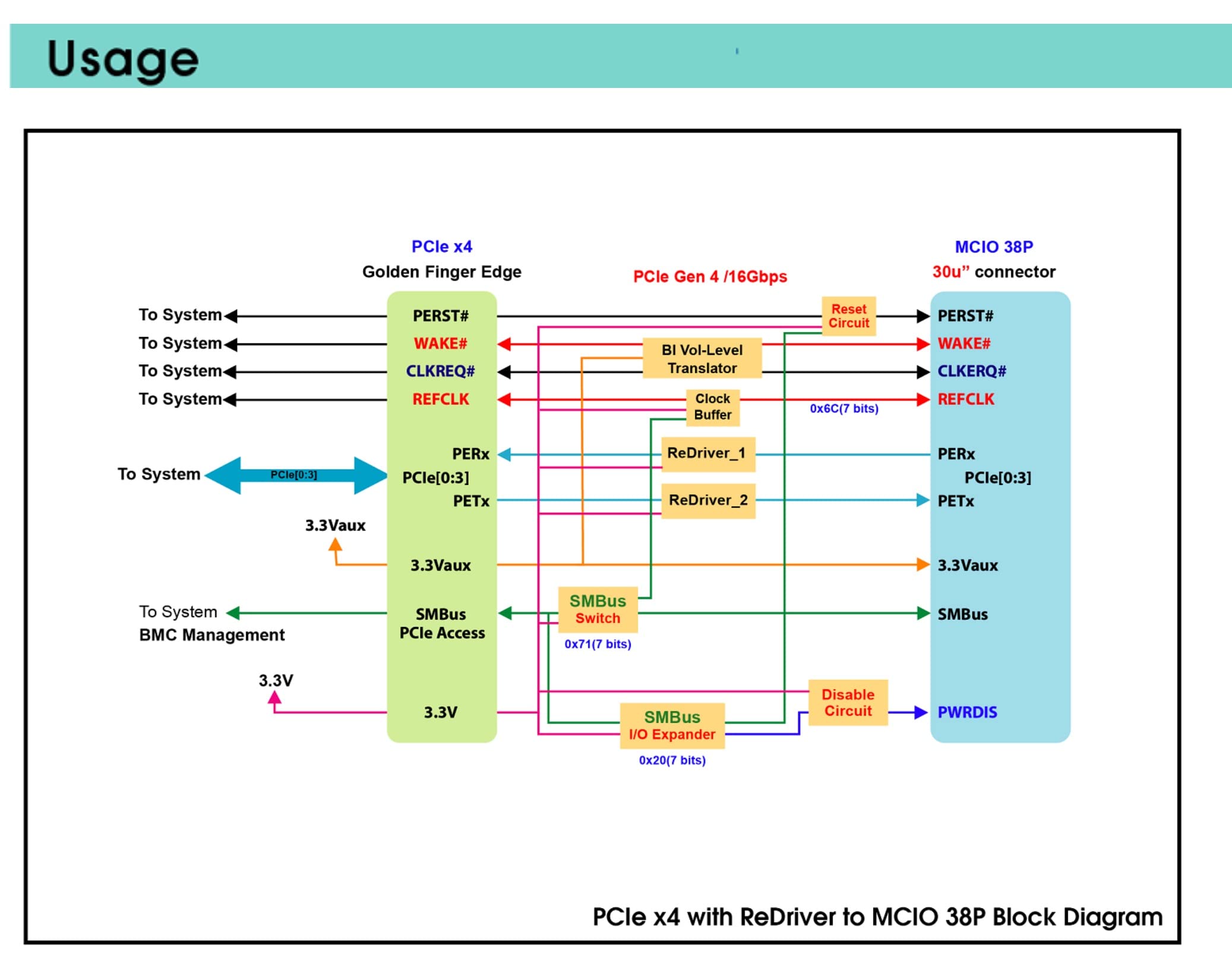

Built-in ReDriver to extend PCIe 4.0, 16GT/s 16 lanes differential pair signals data link width, and may provide programmable linear equalization, output swing and flat gain

Built- in PCIe 100MHz Clock buffer to drive longer trace lengths and more longer cable, Address: 0x6C(7 bits)

Built- in SMBus Switch, Address: 0x71(7 bits)

Built- in SMBus I/O Expander, Address: 0x20(7 bits) for MCIO 38P PWRDIS control

Supports PCIe PERST# for OOB(out of band) management to remote MCIO 38P Reset

Built- in WAKE# bidirectional voltage-level translator for Open-Drain output to be used over longer trace lengths and longer cable

Built- in CLKREQ# bidirectional voltage-level translator for Open-Drain output to be used over longer trace lengths and longer cable

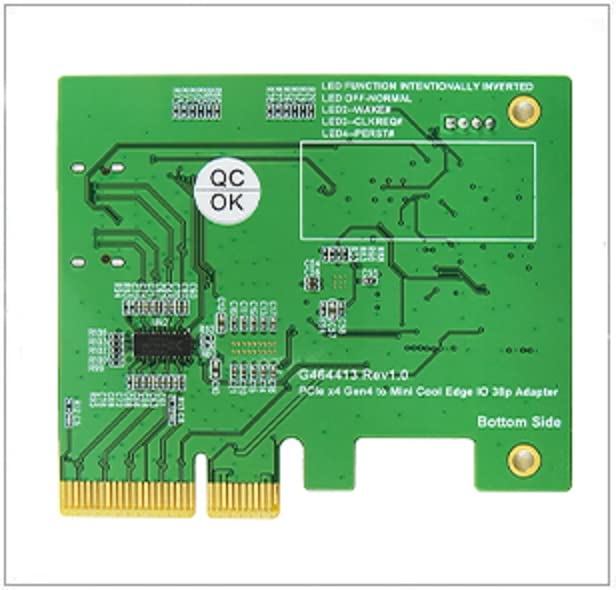

LED1 Green LED on indicates AIC ready

LED2 Green LED on to off indicates PCIe WAKE# signals

LED3 Green LED on to off indicates PCIe CLKREQ# signals

LED4 Green LED on to off indicates PCIe PERST# signals

Design follows the Intel Pinout.

Specifications :

PCI Express Base Specification Rev 4.0

PCIe_CEM_SPEC_R4_V1_0_08072019_NCB

Compliant with SFF-TA-1016 Specification Version 1.0

Operating System Support :

Windows 7

Windows 8 &8.1

Windows 10

UEFI 2.3.1 or later

Micro SATA Cables PN # MCIO-2004-AIC
