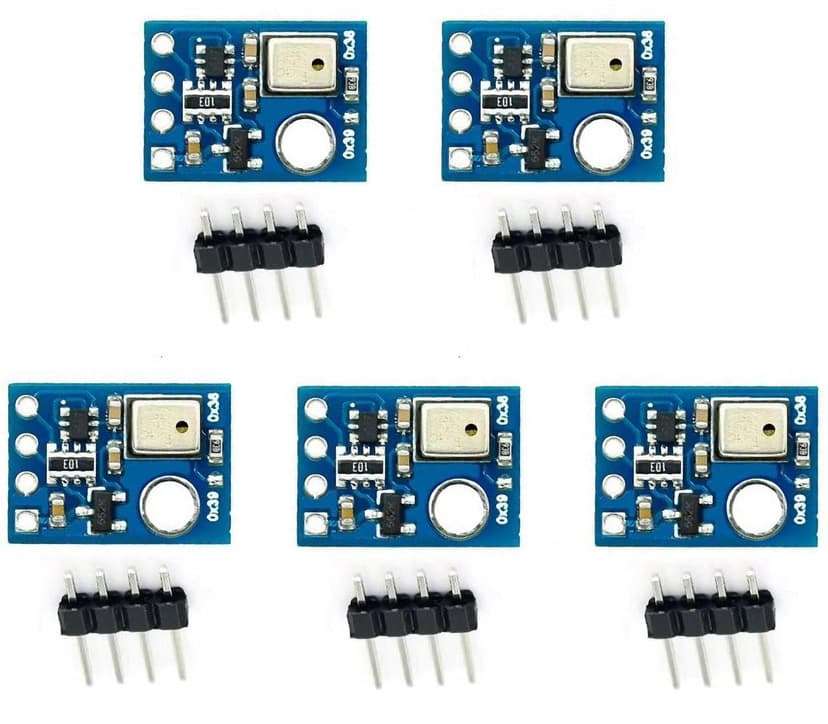

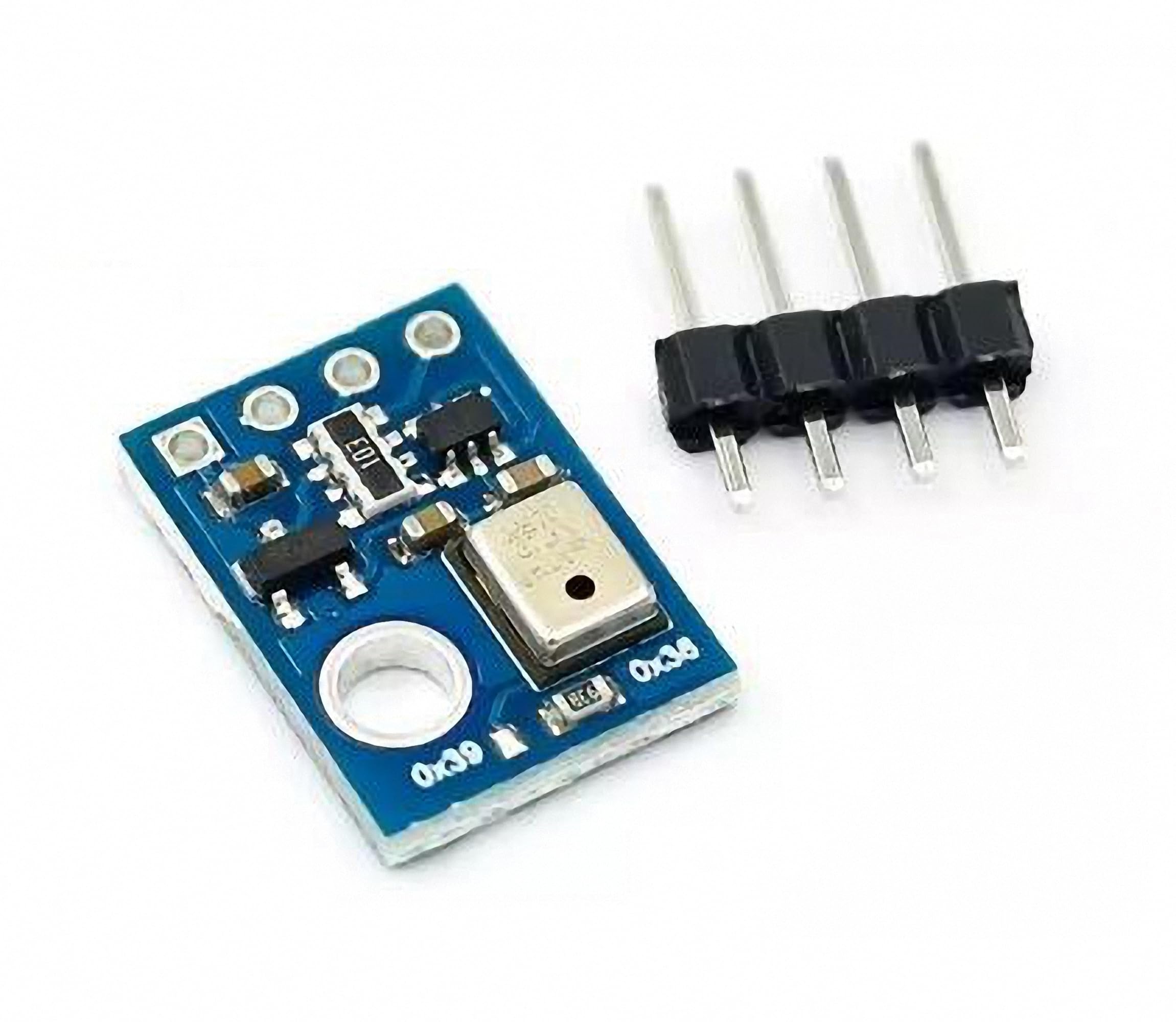

PAMEENCOS 5pcs AHT10 Temperature Humidity Sensor Module High Precision Humidity Sensor Probe Replacing SHT20
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

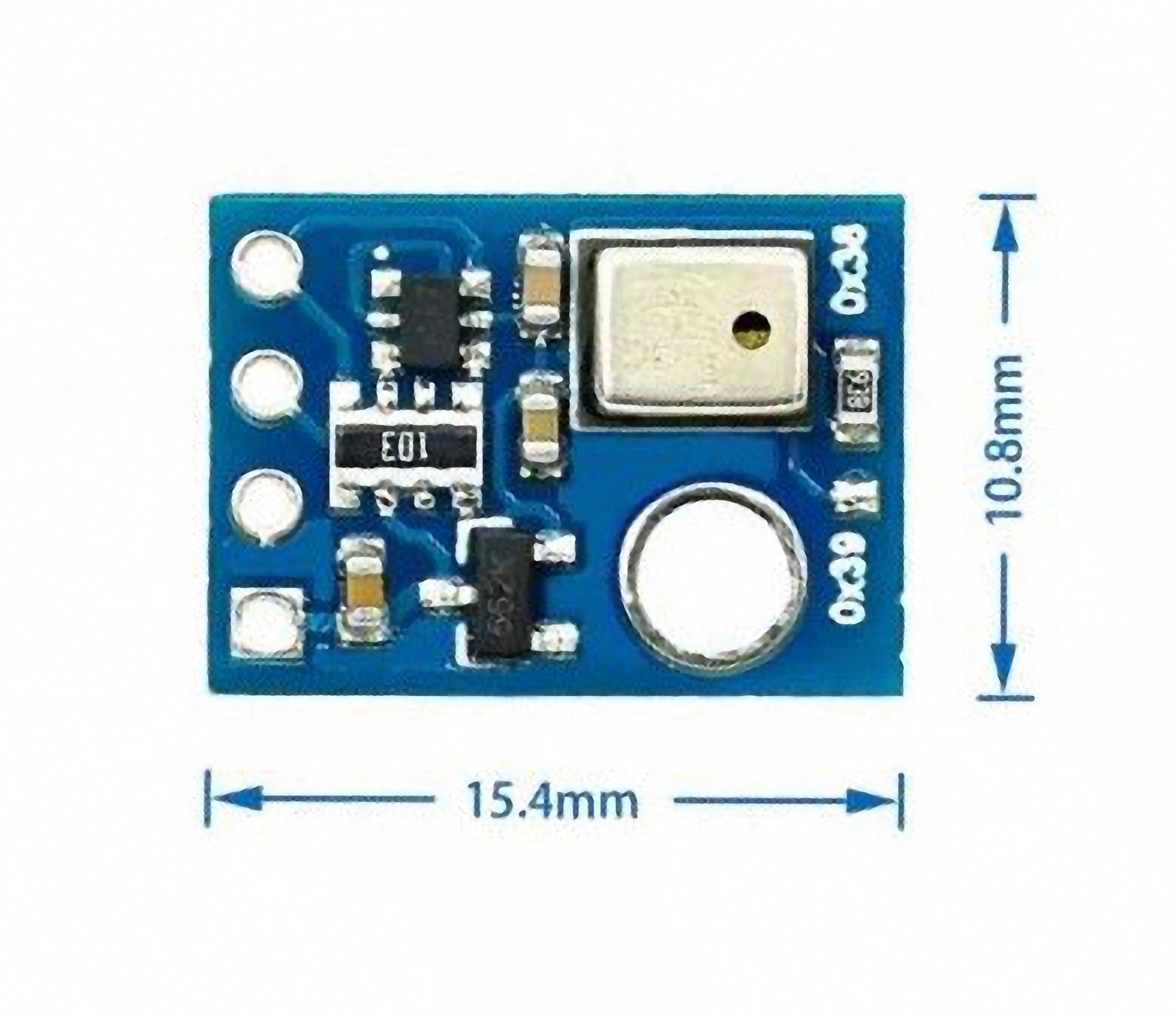

•【Description】The AHT10, a new generation of temperature and humidity sensors, sets a new standard in terms of size and intelligence: it is embedded in a two-row flat pin-less SMD package suitable for reflow, with a base of 4 x 5mm and a height of 1.6mm.
•【Features】The sensor outputs a calibrated digital signal in standard I 2C format. With a newly designed ASIC dedicated chip, an improved MEMS semiconductor capacitive humidity sensor and a standard on-chip temperature sensor, the AHT10's performance has greatly improved and even exceeded the reliability level of the previous generation of sensors, and the new generation of temperature and humidity sensors have been improved to provide more stable performance in harsh environments.
•【Specifications】Interface type: I2C. Working voltage: 1.8-6.0V. Interface size: 4*2.54mm spacing. Humidity accuracy: typical ±2%. Humidity resolution: 0.024%. Temperature accuracy: typical ±0.3℃. Temperature resolution: typical 0.01℃. Working temperature: -40℃--85℃.
