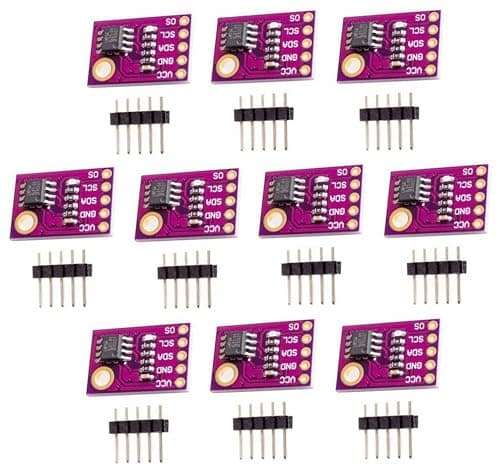

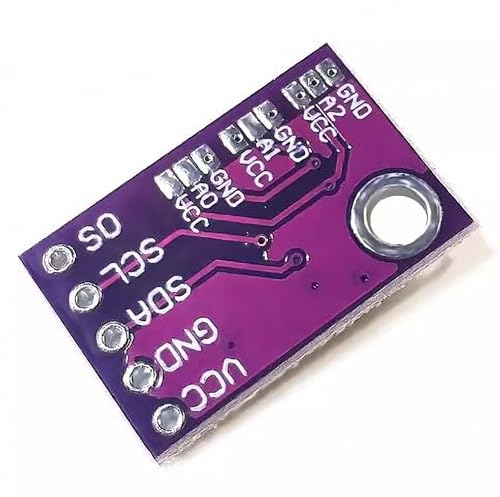

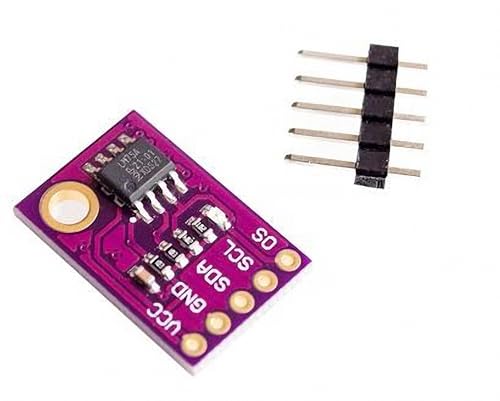

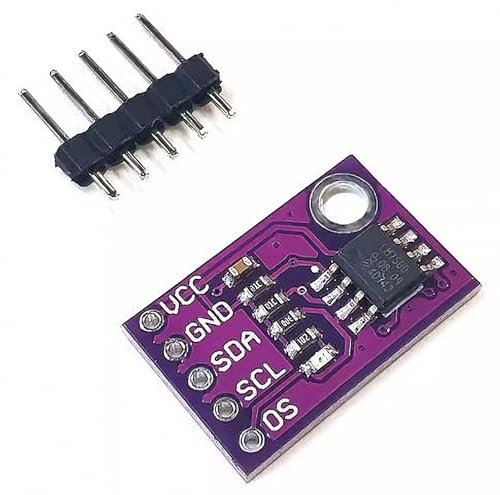

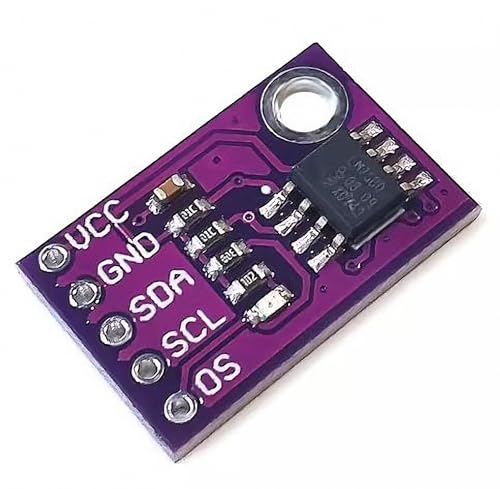

PAMEENCOS 10pcs LM75 LM75A/B Temperature Sensor High Speed I2C Interface High Precision Development Board Module
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•【Description】The LM75A or B is a high-speed I2C interface temperature sensor that converts temperature directly into a digital signal in the temperature range of -55 ° C to +125 ° C, with an accuracy of 0.125 ° C.
•【Features】I2C bus interface, device address 7-bit slave address 1001xxx, the same bus can expand 8 devices; Power supply range: 2.8V ~ 5.5V.
•【Specification】Temperature range: -55℃ ~ +125℃; The 11-bit ADC provides a temperature resolution up to 0.125 ° C; Temperature accuracy: (plus or minus 2 ℃ to 25 ℃ ~ 100 ℃) (+ / - 3 ℃ to 55 ℃ ~ 125 ℃)
•【Functino】Programmable temperature thresholds and hysteresis set points; To reduce power consumption, the current consumed in the off mode is only 1.0μA; When powered on, the device can be used as an independent temperature controller.
•【ESD Protection】Under the JESD22A114 standard, 2000V HBM mode can be passed; Under the JESD22A115 standard, 200V MM mode can be passed; Under the JESD22-C101 standard, 1000V CDM mode can be passed; Latch tests under JEDEC standard (JESD78) up to 100mA.
