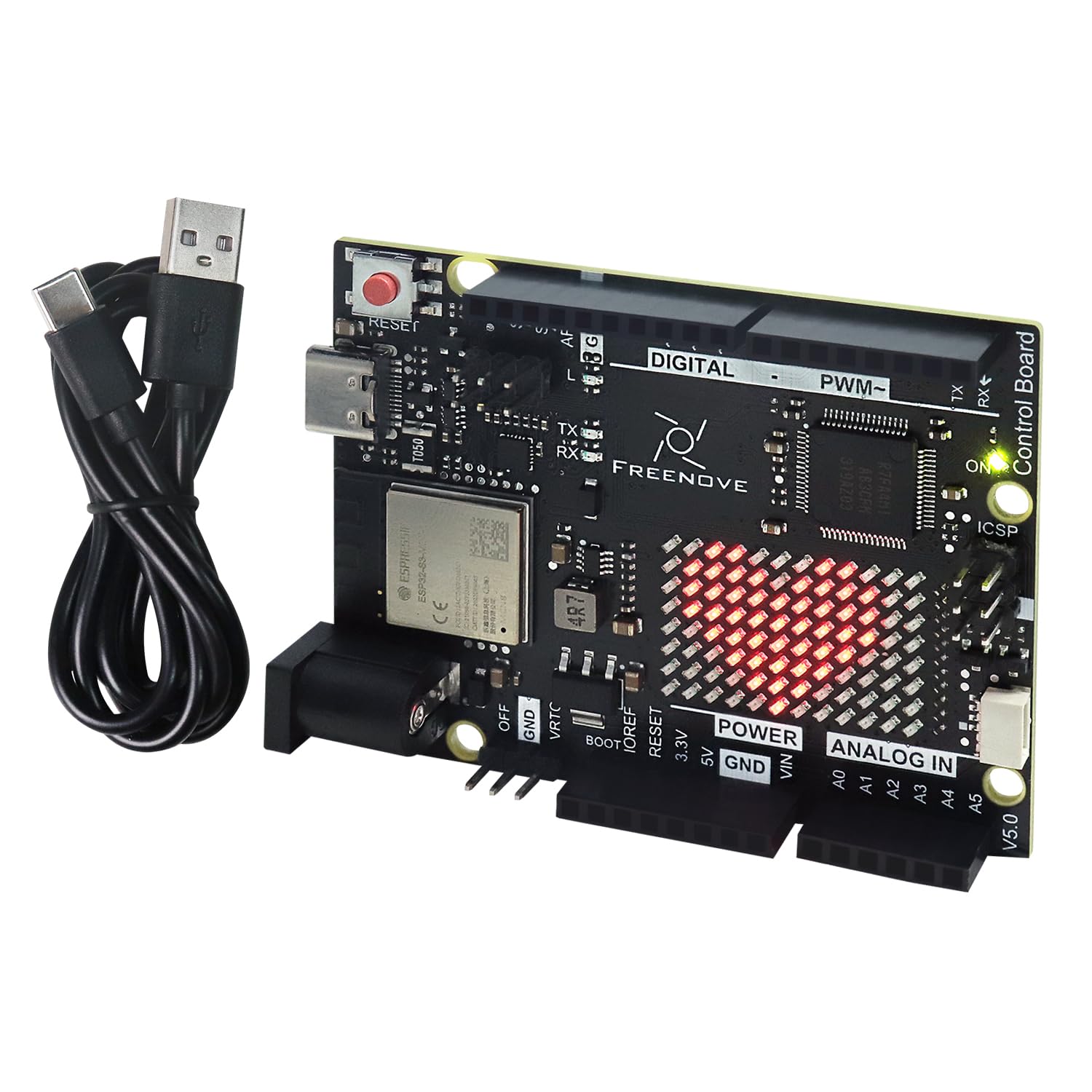

new | Freenove Control Board V5 Rev4 WiFi (Compatible with Arduino IDE), Arm Cortex-M4 Microcontroller, Onboard ESP32-S3, LED Matrix, USB-C Connector, Example Projects and Code Tutorial
Brand : FREENOVE
new | Freenove Control Board V5 Rev4 WiFi (Compatible with Arduino IDE), Arm Cortex-M4 Microcontroller, Onboard ESP32-S3, LED Matrix, USB-C Connector, Example Projects and Code Tutorial
Brand : FREENOVE

*Prices subject to change due to market. The price shown in the checkout is the guaranteed price.
₹ 4,623.00
M.R.P :₹ 6,472.00

5% OFF

Availability :
In Stock

*Prices subject to change due to market. The price shown in the checkout is the guaranteed price.
₹ 4,623.00
M.R.P : ₹ 6,472.00

5% OFF

Availability :
In Stock
Delivery :
Available This pincode is not serviceable! Please try with a different pincode Checking...
Quantity
7 days Replacement
7 days Replacement
Manufacturers Warranty
Manufacturers Warranty
Top Brand
Top Brand
Free delivery
Free delivery
Secure Transaction
Secure Transaction
Blue Dart Delivered
Blue Dart Delivered
Contact For Bulk Product Enquiry
100% Guarantee Safe Checkout
  • visa
  • mastercard
  • discover
  • Maestrocard
  • paypal
  • americanexpress
  • paytm
  • upi
Note: Please be aware that products from the USA may come with an input voltage of 110V - 120V, requiring the use of an appropriate step-down transformer for compatibility. Understanding the device's wattage is essential for selecting the correct power converter.
Product Specifications
Conditionnew
AsinB0D479M512
CategoryElectronics
SubcategorySingle Board Computers
LeafcategorySINGLE_BOARD_COMPUTER
ColorV5 (Rev4) WiFi
CPU Processornone
CPU ManufacturerRenesas
CPU Speed48
Processor Count1
OriginUSA
BrandnameFREENOVE
Weight1
Operating SystemEmbedded
Warranty Description1 year
RAM Memory Installed Size32 KB
RAM Memory TechnologyLPDDR4
Product Details
Latest Version: Upgrade to Arm Cortex-M4 Microcontroller with 48 MHz main core clock speed, 256 KB flash and 32 KB RAM, onboard ESP32-S3 for WiFi and Bluetooth
Onboard LED Matrix: Bright 12x8 red LED matrix, ideal for creative projects with animations or plotting sensor data, eliminating the need for additional hardware
Compatibility: Fully compatible with Blue Rev4 WIFI board; some code and libraries may not be compatible with Blue Rev3 board
Detailed Tutorial: Provides step-by-step guide and several typical projects with code and explanations (The download link can be found on the product box) (No paper tutorial)
Easy to Use: Just connect the board to your computer (installed IDE and driver) with the USB cable to program it
What's Inside The Box ?
Control Board V5
Product Ranking
#1144 in Single Board Computers (Computers & Accessories)
Product Description
Purchase Options:

V5 WiFi has onboard ESP32-S3 module and 12x8 red LED matrix, V5 Mini does not.
This option includes the V5 WiFi board.

Overview:

This latest upgraded board is armed with a powerful 32-bit microcontroller and an ESP32-S3 for wireless connectivity.
Brace yourself for increased processing power, expanded memory, on-board 12x8 LED matrix, and other on-board peripherals.

We provide free technical support to help you with any questions and problems.

Tutorial and Code:

Comes with detailed tutorial and complete code. (Download needed, no paper tutorial.)
Including several typical projects with code and explanations.

The download link can be found on the product box.

Technical Specifications:

Microcontroller:
    Renesas RA4M1 (Arm Cortex-M4)
Pins:
    Digital I/O pins: 14
    Analog input pins: 6
    DAC: 1
    PWM pins: 6
Communication：
    UART: 1
    I2C: 1
    SPI: 1
    CAN: 1
Power:
    Circuit operating voltage: 5 V (ESP32-S3 is 3.3 V)
    Input voltage (VIN): 6-24 V
    DC current per I/O pin: 8 mA
Clock speed:
    Main core: 48 MHz
    ESP32-S3: up to 240 MHz
Memory:
    Main core: 256 KB flash, 32 KB RAM, 8 KB EEPROM
    ESP32-S3: 384 KB ROM, 512 KB SRAM
Dimensions:
    Width: 69 mm
    Length: 54 mm

Package Includes:

1 x Freenove control board V5 (Rev4) WiFi
1 x USB A to C cable
