new | uxcell ER32 10mm 8mm Spring Collet Chucks High Precision 0.008mm 0.015mm for CNC Engraving Machine Lathe Milling Tool
Brand : uxcell
new | uxcell ER32 10mm 8mm Spring Collet Chucks High Precision 0.008mm 0.015mm for CNC Engraving Machine Lathe Milling Tool
Brand : uxcell

*Prices subject to change due to market. The price shown in the checkout is the guaranteed price.
₹ 3,888.00
M.R.P :₹ 5,443.00

5% OFF

Availability :
In Stock

*Prices subject to change due to market. The price shown in the checkout is the guaranteed price.
₹ 3,888.00
M.R.P : ₹ 5,443.00

5% OFF

Availability :
In Stock
Delivery :
Available This pincode is not serviceable! Please try with a different pincode Checking...
Quantity
7 days Replacement
7 days Replacement
Manufacturers Warranty
Manufacturers Warranty
Top Brand
Top Brand
Free delivery
Free delivery
Secure Transaction
Secure Transaction
Blue Dart Delivered
Blue Dart Delivered
Contact For Bulk Product Enquiry
100% Guarantee Safe Checkout
  • visa
  • mastercard
  • discover
  • Maestrocard
  • paypal
  • americanexpress
  • paytm
  • upi
Note: Please be aware that products from the USA may come with an input voltage of 110V - 120V, requiring the use of an appropriate step-down transformer for compatibility. Understanding the device's wattage is essential for selecting the correct power converter.
Product Specifications
Conditionnew
AsinB0D1CJFVRZ
CategoryTools & Home Improvement
SubcategoryCollets
LeafcategoryTOOL_CHUCK
MPNa24030900ux0916
OriginUSA
Brandnameuxcell
Weight1
Product Details

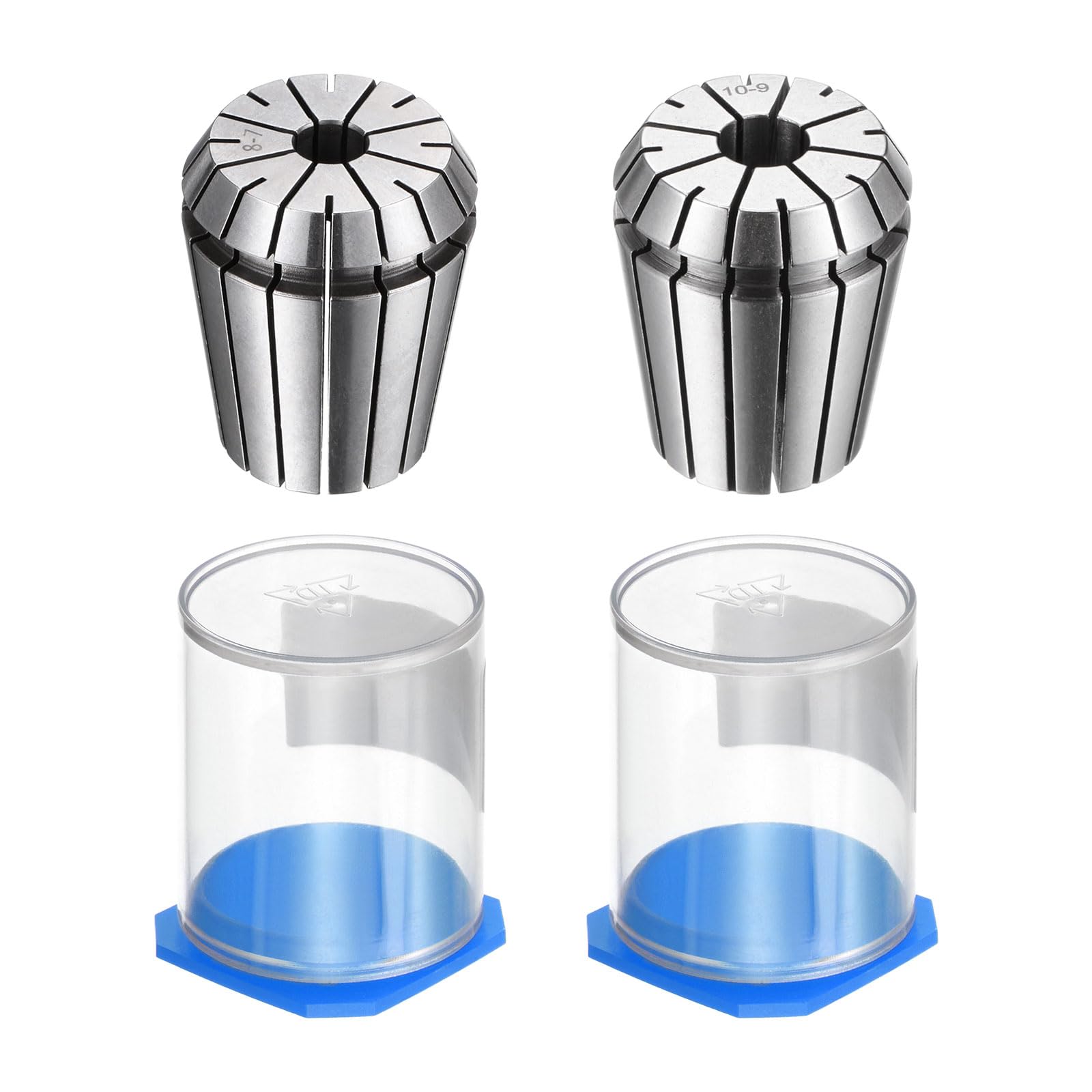

Size - Model: ER-32, Clamping Diameter: 10mm, 8mm, Precision: 0.008mm/0.0003", 0.015mm / 0.0006", Outer Diameter(Max): 33mm / 1.3", Total Height: 40.5mm / 1.59"
Material - The 8mm Spring Collet Chuck is made of 40Cr Steel, general hardness, and wear resistance, and is sturdy for your long-lasting use. The 10mm Spring Collet Chuck is made of 65Mn Spring Steel, with high abrasion resistance, high tensile strength, high elasticity, good clamping force, good elasticity, and not easily deformed.
Precision - 0.0008mm/0.0003-inch, 0.015mm / 0.0006-inch. All critical collet surfaces are precision ground for a precise fit, enhanced clamping force and good resilience.
Applications - Suitable for manual vertical or horizontal milling machines, drilling machines, CNC milling lathe tools, work-holding engraving machines, high-speed machines, and other equipment.
Package Content - 1pcs x 10mm Clamping Dia Spring Collet, 1pcs x 8mm Clamping Dia Spring Collet
Product Description
Description:
1. This ER collet is used for CNC milling lathe tools and work-holding engraving machines.
2. Collet must be placed into collet chuck nut before inserting into collet chuck.

Install and Disassembly Instruction:
1. Put the collet into the nut, turn it slightly, and wait until the eccentric part of the nut is recessed into the circlip groove, push the collet evenly to fit it into the nut.
2. Install the collet and nut on the chuck body or the spindle of the machine tool together, put the engraving tool into the clamping hole, use a wrench to tighten the nut until the engraving tool is firmly clamped.
3. When replacing the engraving tool, use a wrench to loosen the nut to bring out the chuck and engraving tool, remove the engraving tool, push the collet to make it exit, and then replace the collet with other size as needed.
Product Description
Description:
1. This ER collet is used for CNC milling lathe tools and work-holding engraving machines.
2. Collet must be placed into collet chuck nut before inserting into collet chuck.

Install and Disassembly Instruction:
1. Put the collet into the nut, turn it slightly, and wait until the eccentric part of the nut is recessed into the circlip groove, push the collet evenly to fit it into the nut.
2. Install the collet and nut on the chuck body or the spindle of the machine tool together, put the engraving tool into the clamping hole, use a wrench to tighten the nut until the engraving tool is firmly clamped.
3. When replacing the engraving tool, use a wrench to loosen the nut to bring out the chuck and engraving tool, remove the engraving tool, push the collet to make it exit, and then replace the collet with other size as needed.
