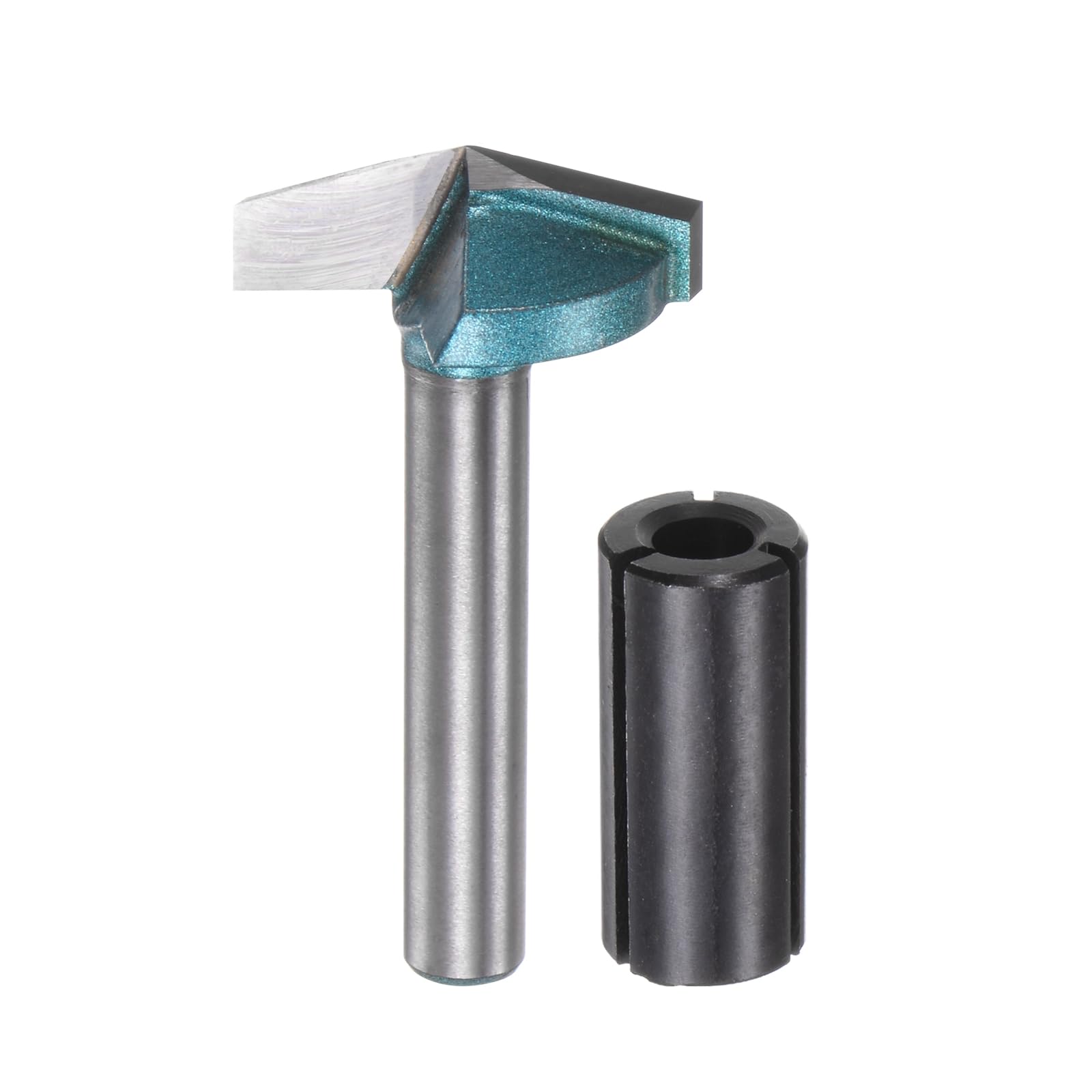

Size - The V groove router bits' diameter is 22mm/0.9", the shank diameter is 6mm/0.2", the cutting depth is 8mm/0.3", and the total length is 42.5mm/1.7", and the equipped conversion collet's diameter is 12.7mm/0.5", and the total length is 28mm/1.1".The maximum speed is 24000rpm.
Material - The V grooving router bits are made of carbide material, which allows for quick hole opening and clean cutting and is durable and long-lasting, ensuring smooth and precise cutting functions.
Features - This end mill trimming bit features a 150-degree V-shaped design that creates V-shaped grooves exactly how you need them and can add decorative furniture and plaques.
Usage - The V-type router bit simply attaches them to a suitable router and then adjusts the cutting depth and speed according to the material being worked on for optimal results, equipped with conversion collet. Suitable for pine, plastic plates, density boards, sandalwood, acrylics, chipboard, compression plates, birch, ash trees, basswood and other wood composite materials.
Application - This router bit is versatile and can be used for a wide range of woodworking tasks, including making signs, engraving letters, and creating detailed carvings on wood surfaces, can be used on CNC and other automatic routers as well as hand-held and table-mounted portable routers.
