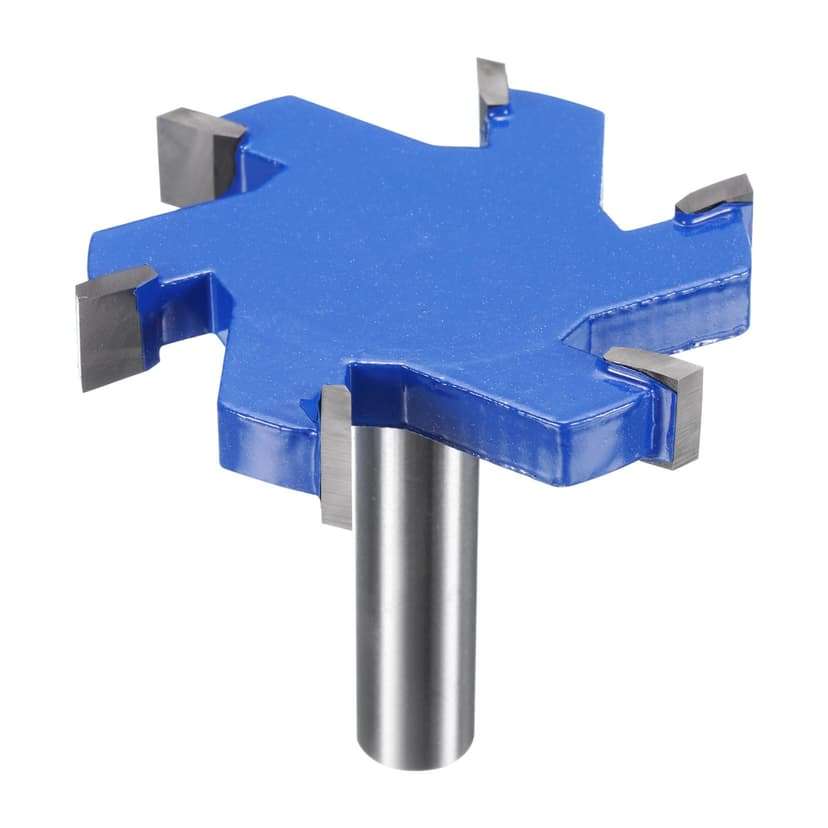

Size - Shank diameter: 12mm / 15/32"; cutting diameter: 65mm / 2-9/16"; cutting depth: 10mm / 13/32"; cutting length: 26.15mm / 1-1/32"; overall length: 58mm / 2-9/32"; style: 6 wing slotting cutter (Provides higher cutting performance and precision, greater stability, improved chip evacuation and reduced vibration compared to 2, 3 or 4 wings.)
Material - Sharp carbide tip is hard, durable, and heat-resistant for precise, clean cuts. Spray coating has a smooth, even surface that resists rust and corrosion. 45# carbon steel body, high strength, durability and good wear resistance. High frequency welding, integrated cutter and shank.
Usage - Use on electric routers, edge trimmers, CNC and other automatic routers as well as hand-held and table-mounted portable routers (such as woodworking engraving machines, trimming machines). Rabbet router bit can be adjusted to achieve the desired depth and width of the slot or rabbet.
Applications - Rabbeting router bits are suitable for solid wood, MDF, laminate, particle board, plywood, and chipboard. Avoid cutting metal and non-wood materials. Cut rabbets, slots or grooves with a T-shaped profile, and also suitable for flattening boards, resurfacing or planing the top surface of the spoilboard.
Note - Securely clamp or hold down the workpiece to prevent it from moving during routing, ensuring clean and accurate cuts. Maintain a consistent feed rate while routing to achieve smooth and even cuts. Always wear appropriate safety gear to protect yourself.
