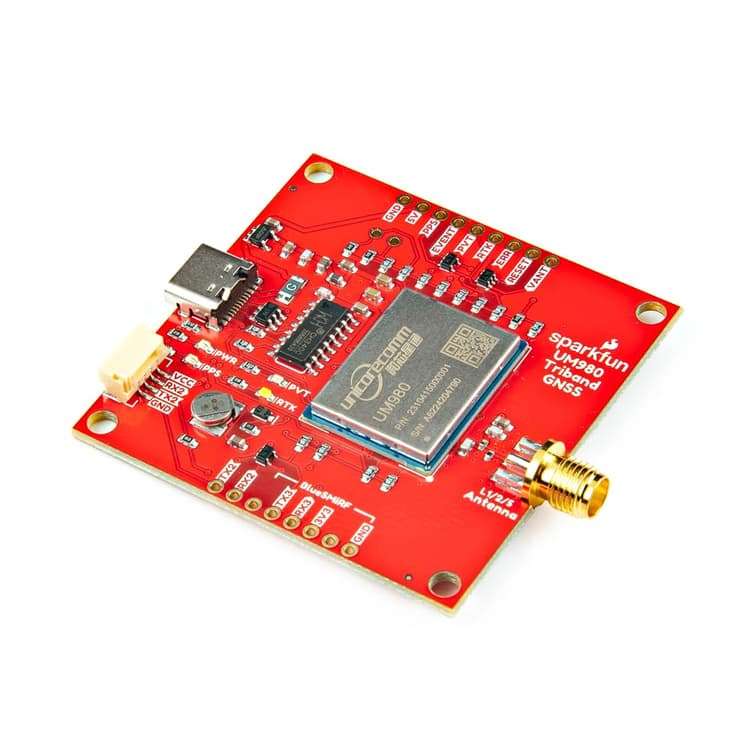

new | SparkFun Triband GNSS RTK Breakout - UM980 1408-Channel GNSS Receiver, high Precision RTK Position Module, USB Type C, Board Dimensions: 2.0in. x 2.0in. (50.8mm x 50.8mm)
Brand : SparkFun
new | SparkFun Triband GNSS RTK Breakout - UM980 1408-Channel GNSS Receiver, high Precision RTK Position Module, USB Type C, Board Dimensions: 2.0in. x 2.0in. (50.8mm x 50.8mm)
Brand : SparkFun

₹ 46,657.00
M.R.P :₹ 77,763.00

40% OFF

Availability :
In Stock

*Prices subject to change due to market. The price shown in the checkout is the guaranteed price.
₹ 46,657.00
M.R.P : ₹ 77,763.00

40% OFF

Availability :
In Stock
Delivery :
Available This pincode is not serviceable! Please try with a different pincode Checking...
Quantity
7 days Replacement
7 days Replacement
Manufacturers Warranty
Manufacturers Warranty
Top Brand
Top Brand
Free delivery
Free delivery
Secure Transaction
Secure Transaction
Blue Dart Delivered
Blue Dart Delivered
Contact For Bulk Product Enquiry
100% Guarantee Safe Checkout
  • visa
  • mastercard
  • discover
  • Maestrocard
  • paypal
  • americanexpress
  • paytm
  • upi
Note: Please be aware that products from the USA may come with an input voltage of 110V - 120V, requiring the use of an appropriate step-down transformer for compatibility. Understanding the device's wattage is essential for selecting the correct power converter.
Product Specifications
Conditionnew
AsinB0CQVF7HCM
CategoryElectronics
SubcategorySingle Board Computers
LeafcategorySINGLE_BOARD_COMPUTER
MPNGPS-23286
Battery Typelithium_ion
CPU ManufacturerARM
Processor Count1
OriginUSA
BrandnameSparkFun
Height0.31496
Length2.32283
Width2.04724
Weight1
Operating SystemLinux
Total USB Ports1
Warranty Description30 Days
RAM Memory TechnologyDDR4
Product Details
The SparkFun Triband GNSS RTK Breakout features the UM980 GNSS high precision RTK position module from Unicore Communications.
The UM980 is a 1408-Channel GNSS Receiver based on the Nebulas IV that is able to simultaneously track GPS L1/L2/L5, GLONASS L1/L2, Galileo E1/E5a/E5b/E6, Beidou B1I/B2I/B3I/B1C/B2a/B2b, QZSS L1/L2/L5, and SBAS. With this board, you will be able to know where your (or any object's) X, Y, and Z location is within roughly the width of your fingernail.
Features: Velocity Accuracy (RMS): 0.03m/s, Time Accuracy (RMS): 20ns, Supports NMEA, RTCM, and Unicore (w/ specific firmware) protocols over UART, Integrated SMA connector for use with multiband GNSS antenna of your choice, Voltage: 5V or 3.3V but all logic is 3.3V, USB Type C Connector, ESD Protection Diodes for USB Data Lines, Built-in Resettable PTC Fuse 6V/1.5A.
We've included a rechargeable backup battery to keep the latest module configuration and satellite data available. This battery helps 'warm-start' the module, decreasing the time-to-first-fix dramatically. This module features a survey-in mode, allowing the module to become a base station and produce RTCM 3.x correction data. A SMA connector is included for a secure connection to a Triband GNSS antenna.
Currently, serial UART is only supported on the UM980 module. All three serial UART ports have been broken out to the USB-C connector via CH340, 4-pin locking JST connector, and BlueSMiRF header. Unique pins have also been broken out to the edge of the board. Various jumpers are also included to configure power and LEDs.
What's Inside The Box ?
Qwiic
Product Ranking
#9391 in Single Board Computers (Computers & Accessories)
Product Description
The SparkFun Triband GNSS RTK Breakout features the UM980 GNSS high precision RTK position module from Unicore Communications. The UM980 is a 1408-Channel GNSS Receiver based on the Nebulas IV that is able to simultaneously track GPS L1/L2/L5, GLONASS L1/L2, Galileo E1/E5a/E5b/E6, Beidou B1I/B2I/B3I/B1C/B2a/B2b, QZSS L1/L2/L5, and SBAS. With this board, you will be able to know where your (or any object's) X, Y, and Z location is within roughly the width of your fingernail. When an RTK solution is reached, the module can achieve a horizontal accuracy of about 8mm (~0.3 inches) and vertical accuracy of 15mm (~0.59 inches). The UM980 is capable of both rover and base station operations.
We've included a rechargeable backup battery to keep the latest module configuration and satellite data available. This battery helps 'warm-start' the module, decreasing the time-to-first-fix dramatically. This module features a survey-in mode, allowing the module to become a base station and produce RTCM 3.x correction data. A SMA connector is included for a secure connection to a Triband GNSS antenna. Currently, serial UART is only supported on the UM980 module. All three serial UART ports have been broken out to the USB-C connector via CH340, 4-pin locking JST connector, and BlueSMiRF header. Unique pins have also been broken out to the edge of the board. Various jumpers are also included to configure power and LEDs.
Product Description
The SparkFun Triband GNSS RTK Breakout features the UM980 GNSS high precision RTK position module from Unicore Communications. The UM980 is a 1408-Channel GNSS Receiver based on the Nebulas IV that is able to simultaneously track GPS L1/L2/L5, GLONASS L1/L2, Galileo E1/E5a/E5b/E6, Beidou B1I/B2I/B3I/B1C/B2a/B2b, QZSS L1/L2/L5, and SBAS. With this board, you will be able to know where your (or any object's) X, Y, and Z location is within roughly the width of your fingernail. When an RTK solution is reached, the module can achieve a horizontal accuracy of about 8mm (~0.3 inches) and vertical accuracy of 15mm (~0.59 inches). The UM980 is capable of both rover and base station operations.
We've included a rechargeable backup battery to keep the latest module configuration and satellite data available. This battery helps 'warm-start' the module, decreasing the time-to-first-fix dramatically. This module features a survey-in mode, allowing the module to become a base station and produce RTCM 3.x correction data. A SMA connector is included for a secure connection to a Triband GNSS antenna. Currently, serial UART is only supported on the UM980 module. All three serial UART ports have been broken out to the USB-C connector via CH340, 4-pin locking JST connector, and BlueSMiRF header. Unique pins have also been broken out to the edge of the board. Various jumpers are also included to configure power and LEDs.
