flagProduct From USA

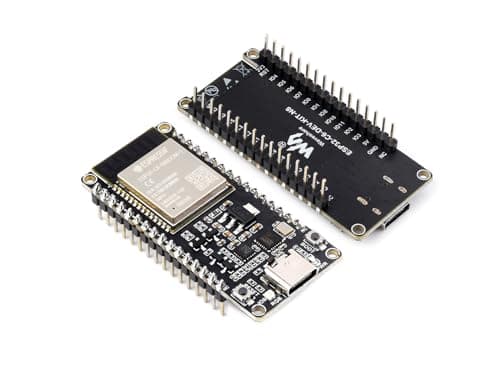

new | waveshare ESP32-C6 RISC-V Microcontroller WiFi 6 Development Board, Adopt ESP32-C6-WROOM-1-N8 Module, 160MHz Single-core Processor, Support USB and UART Development (with Pinheader)
Brand : waveshare
new | waveshare ESP32-C6 RISC-V Microcontroller WiFi 6 Development Board, Adopt ESP32-C6-WROOM-1-N8 Module, 160MHz Single-core Processor, Support USB and UART Development (with Pinheader)
Brand : waveshare
Product Specifications
Conditionnew
AsinB0CNVDL98Y
CategoryElectronics
SubcategorySingle Board Computers
LeafcategorySINGLE_BOARD_COMPUTER
MPN15.99
CPU Speed160
Processor Count1
OriginUSA
Brandnamewaveshare
Height0.39
Length2.16
Width1
Weight1
Operating SystemEspressif IoT Development Framework
Total USB Ports1
RAM Memory Installed Size0.000528 GB
RAM Memory TechnologyLPDDR3
Product Details
ESP32-C6 WiFi 6 microcontroller development board (with Pinheader), adopts ESP32-C6-WROOM-1-N8 module, which is equipped with RISC-V 32-bit single-core processor, up to 160MHz main frequency, built-in 8MB Flash
Integrates WiFi 6, Bluetooth 5 and and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication, with superior RF performance
Integrates rich peripherals including SPI, UART, I2C, I2S, LED PWM, SDIO and other interfaces, compatible with the pinout of ESP32-C6-DevKitC-1-N8 development board, more convenient to use and expand a variety of peripheral modules
Onboard CH343 and CH334 USB HUB chips, supports USB and UART development at the same time via a USB-C port
Comes with online examples and tutorials for ESP-IDF development environment
Product Ranking
#6165 in Single Board Computers (Computers & Accessories)
Product Description
Overview The ESP32-C6-DEV-KIT-N8 is a compact microcontroller development board with multiple peripheral interfaces. In terms of hardware, it adopts ESP32-C6-WROOM-1 module with a RISC-V 32-bit single-core processor. It supports up to 160MHz clock frequency with built-in 320KB ROM, 512KB HP SRAM, and 16KB LP SRAM. Onboard CH343 UART and CH334 USB HUB chips, it supports USB and UART development at the same time via a USB-C port. Compatible with the pinout of ESP32-C6-DevKitC-1-N8 development board, it is more convenient to use and expand a variety of peripheral modules. Comes with online examples and tutorials for ESP-IDF development environment, so that you can easily and quickly get started and apply it to the product. Features -- Adopts ESP32-C6-WROOM-1-N8 module with RISC-V 32-bit single-core processor, up to 160MHz main frequency, built-in 8MB Flash. -- Integrated 320KB ROM, 512KB HP SRAM, 16KB LP SRAM, and 8MB Flash memory. -- Integrated 2.4GHz WiFi 6, low-power Bluetooth (Bluetooth LE), and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication, with superior RF performance. -- Type-C connector, easier to use. -- Onboard CH343 and CH334 chips can meet the needs of USB and UART development via a Type-C interface. -- Rich peripheral interfaces, compatible with the pinout of ESP32-C6-DevKitC-1-N8 development board, offer strong compatibility and expandability. -- The castellated module allows soldering directly to carrier boards. -- Supports a variety of low-power operating states, adjustable communication distance, data rate, and power consumption balance, to meet the power requirements of various application scenarios. Package Content ESP32-C6-DEV-KIT-N8 with pre-soldered header x1 NOTE: Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
