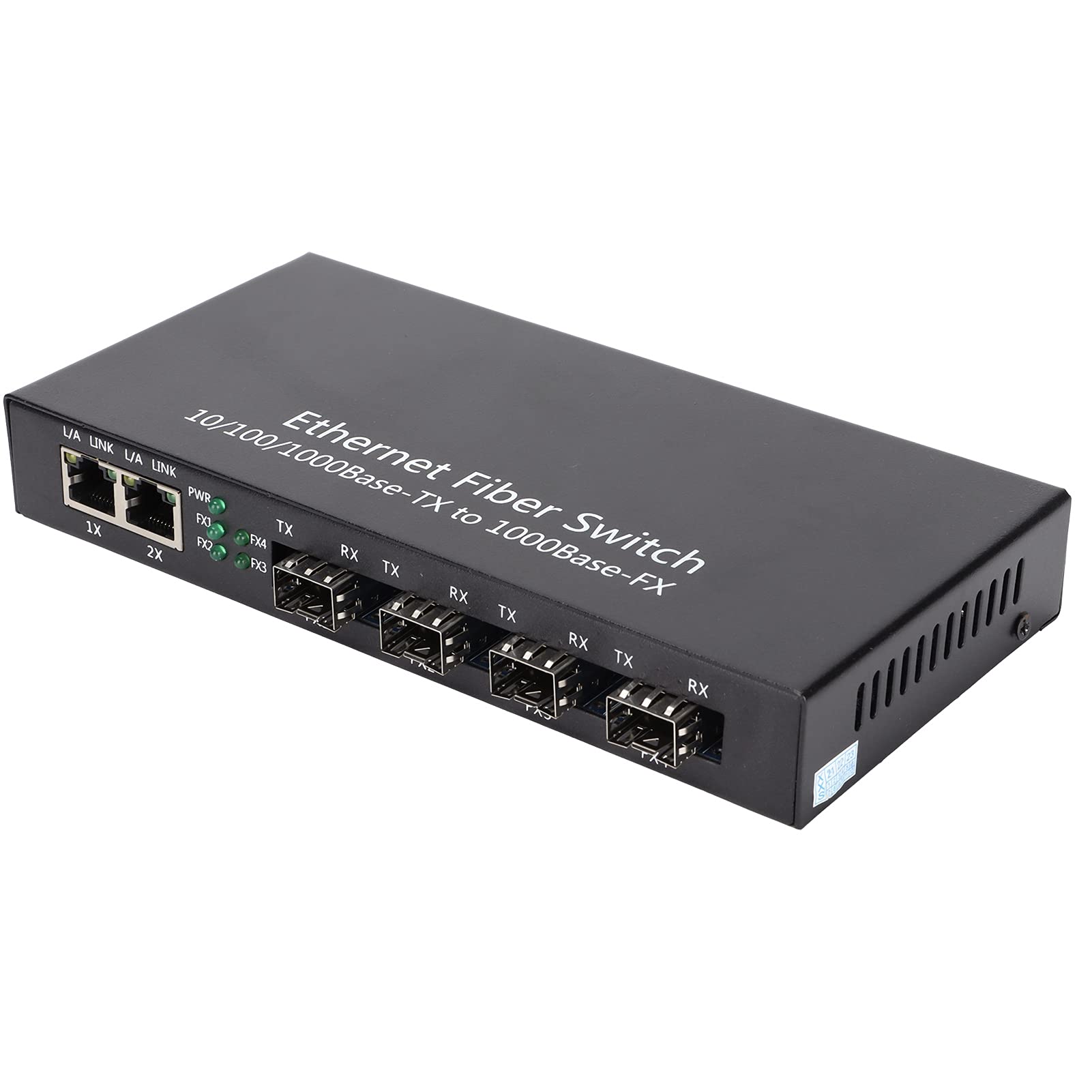

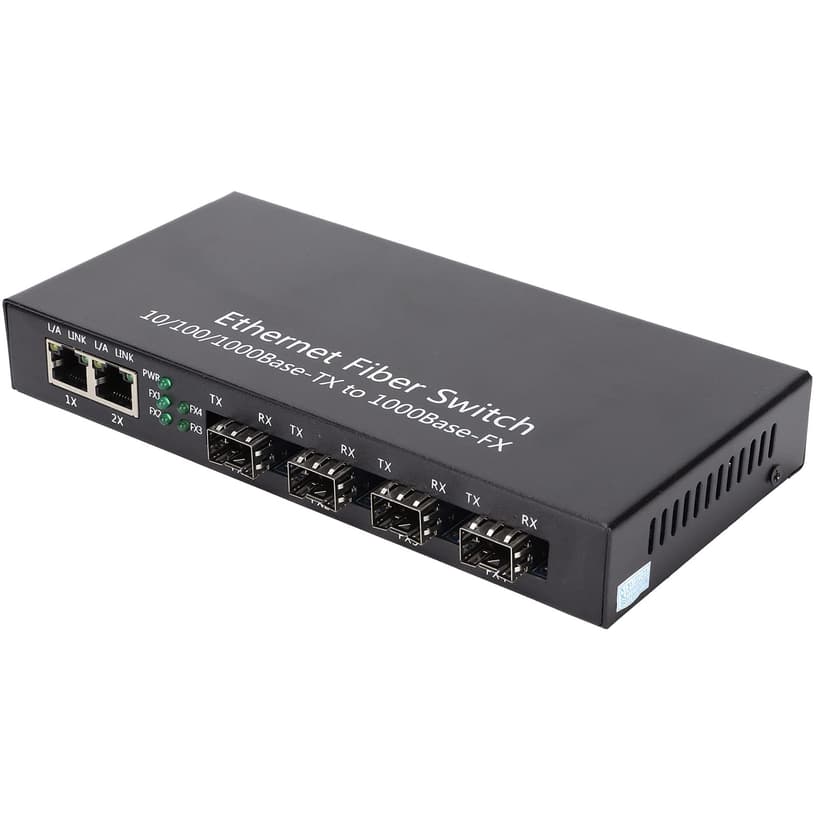

new | Ethernet Media Converter RJ45 10/100/1000M 4 Fiber 2 Ports Single Mode Dual Fiber, Optical Fiber Interface, Full Duplex or Half Duplex, CAT5 and CAT6 Twisted Pair Cable
Brand : Yoidesu
new | Ethernet Media Converter RJ45 10/100/1000M 4 Fiber 2 Ports Single Mode Dual Fiber, Optical Fiber Interface, Full Duplex or Half Duplex, CAT5 and CAT6 Twisted Pair Cable
Brand : Yoidesu

*Prices subject to change due to market. The price shown in the checkout is the guaranteed price.
₹ 9,145.00
M.R.P :₹ 12,803.00

5% OFF

Availability :
In Stock

*Prices subject to change due to market. The price shown in the checkout is the guaranteed price.
₹ 9,145.00
M.R.P : ₹ 12,803.00

5% OFF

Availability :
In Stock
Delivery :
Available This pincode is not serviceable! Please try with a different pincode Checking...
Quantity
7 days Replacement
7 days Replacement
Manufacturers Warranty
Manufacturers Warranty
Top Brand
Top Brand
Free delivery
Free delivery
Secure Transaction
Secure Transaction
Blue Dart Delivered
Blue Dart Delivered
Contact For Bulk Product Enquiry
100% Guarantee Safe Checkout
  • visa
  • mastercard
  • discover
  • Maestrocard
  • paypal
  • americanexpress
  • paytm
  • upi
Note: Please be aware that products from the USA may come with an input voltage of 110V - 120V, requiring the use of an appropriate step-down transformer for compatibility. Understanding the device's wattage is essential for selecting the correct power converter.
Product Specifications
Conditionnew
AsinB0CDJ9C45H
CategoryElectronics
SubcategoryNetwork Transceivers
MPNYoidesu60aozhf3bw
OriginUSA
BrandnameYoidesu
Weight2
Product Details
[HIGH-SPEED GIGABIT ETHERNET CONVERTER] - Convert Ethernet to fiber with ease for fast and reliable data transmission.
[DUAL FIBER INTERFACE] - Equipped with SC optical fiber interface for bi-directional communication.
[AUTOMATIC IDENTIFICATION] - Automatically identifies straight-through and -wires for easy installation.
[WIDE TEMPERATURE RANGE] - Supports a working temperature range of 0°C to 60°C for versatile usage.
[EXTENSIVE COMPATIBILITY] - Works with various network setups and supports 10/100/1000Mbps transmission speeds.
Product Description
Spec:
Item Type: Ethernet Media Converter
Standard Protocol: IEEE802.3Z/AB 1000Base-T/SX/LX
Transmission Rate: Electrical Interface: 10/100/1000Mbps; Optical Fiber Interface: 1.25Gbps
Operating Mode: Full-Duplex Mode or Half-Duplex Mode
Power Parameters: 5VDC
Ambient Temperature: 0℃-60℃
Relative Humidity: 5%-90%
TP Line: 5E, CAT6
Transmission Fiber: Multi-Mode: 50/125, 62.5/125um; Single-Mode: 8.3/125, 8.7/125, 9/125 or 10/125μm



Package List:
1 x Ethernet Media Converter
1 x User Manual

How To Use:
1.Interface
R.J‑45 interface: The transmission medium adopts CAT5 and CAT 6 twisted pair cables. It is recommended to use high‑quality RJ‑45 and well‑made jumpers, which have the function of automatically identifying straight and crossover cables.
Optical fiber interface: SC optical fiber interface is duplex type, including TX and RX two interfaces. When two sets of optical converters are connected or connected to a switch through optical fiber interfaces, the optical fibers are in a ‑connected state, that is, TX‑RX and RX‑TX.
2. Connection
Connect network equipment (workstation, hub or switch)
Connect to the RJ‑45 socket of the optical converter through twisted pair CAT5. Connect the multi‑mode/single‑mode fiber to the SC/ST/LC fiber interface of the optical module. Turn on the power. The corresponding LED light is on to indicate that the connection is correct.

Note:
Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
Product Description
Spec:
Item Type: Ethernet Media Converter
Standard Protocol: IEEE802.3Z/AB 1000Base-T/SX/LX
Transmission Rate: Electrical Interface: 10/100/1000Mbps; Optical Fiber Interface: 1.25Gbps
Operating Mode: Full-Duplex Mode or Half-Duplex Mode
Power Parameters: 5VDC
Ambient Temperature: 0℃-60℃
Relative Humidity: 5%-90%
TP Line: 5E, CAT6
Transmission Fiber: Multi-Mode: 50/125, 62.5/125um; Single-Mode: 8.3/125, 8.7/125, 9/125 or 10/125μm



Package List:
1 x Ethernet Media Converter
1 x User Manual

How To Use:
1.Interface
R.J‑45 interface: The transmission medium adopts CAT5 and CAT 6 twisted pair cables. It is recommended to use high‑quality RJ‑45 and well‑made jumpers, which have the function of automatically identifying straight and crossover cables.
Optical fiber interface: SC optical fiber interface is duplex type, including TX and RX two interfaces. When two sets of optical converters are connected or connected to a switch through optical fiber interfaces, the optical fibers are in a ‑connected state, that is, TX‑RX and RX‑TX.
2. Connection
Connect network equipment (workstation, hub or switch)
Connect to the RJ‑45 socket of the optical converter through twisted pair CAT5. Connect the multi‑mode/single‑mode fiber to the SC/ST/LC fiber interface of the optical module. Turn on the power. The corresponding LED light is on to indicate that the connection is correct.

Note:
Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
