new | waveshare 1.5inch OLED Display Module 128×128 Resolution I2C OLED Screen for Raspberry Pi, Arduino, STM32,SH1107 Driver Chip,Black/White Display Color
Brand : waveshare
new | waveshare 1.5inch OLED Display Module 128×128 Resolution I2C OLED Screen for Raspberry Pi, Arduino, STM32,SH1107 Driver Chip,Black/White Display Color
Brand : waveshare
Product Specifications
Conditionnew
AsinB0CBTNJLJS
CategoryElectronics
SubcategorySingle Board Computers
LeafcategoryCOMPUTER_COMPONENT
MPN1.5inch OLED Display(B)
Processor Count1
OriginUSA
Brandnamewaveshare
Weight1
Operating SystemLinux
Product Details
1.5inch OLED Display Module for Raspberry Pi, Arduino, STM32, etc.
128×128 Resolution OLED Display,Black / White Display Color
Ultra-narrow bezel, conpact size, with onboard voltage translator
Adopts 4-wire SPI and I2C interfaces, better compatibility, fast data rate
Comes with online development resources (examples for Raspberry Pi/Arduino/STM32)
Product Ranking
#9290 in Single Board Computers (Computers & Accessories)
Product Description

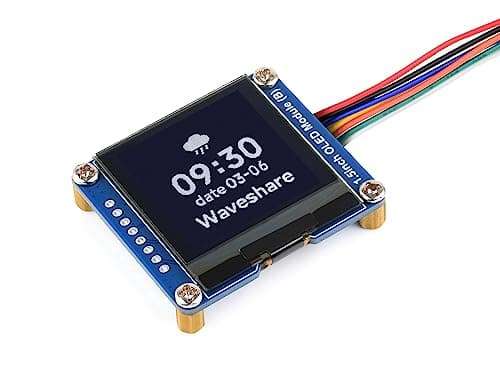

1.5inch OLED Display Module, 128×128 Resolution, SPI / I2C Communication, Black / White Display Color

1.1.5inch OLED Display Module
Embedded SH1107 Driver Chip, SPI / I2C Communication
Comes with examples for Raspberry Pi, Arduino, STM32, etc.

Features At A Glance
Ultra-narrow bezel, conpact size, with onboard voltage translator
Adopts 4-wire SPI and I2C interfaces, better compatibility, fast data rate
Comes with online development resources (examples for Raspberry Pi/Arduino/STM32)

Specifications
OPERATING VOLTAGE---3.3V / 5V
RESOLUTION---128 × 128 pixels
COMMUNICATION INTERFACE---4-wire SPI / I2C
DISPLAY SIZE---26.855 × 26.855mm
DISPLAY PANEL---OLED
PIXEL SIZE---0.185 × 0.185mm
DRIVER---SH1107
MODULE SIZE---38.50 × 44.50mm

Control Interface
VCC---Power (3.3V / 5V input)
GND---Ground
DIN---Data input
CLK---Clock input
CS---Chip selection, low active
DC---Data/Command selection (high for data, low for command)
RST---Reset, low active

Package Content
1.5inch OLED Module (B) x1
GH1.25 7PIN cable x1
