new | waveshare 1.32inch OLED Display Module, 128x96 Pixels 16 Gray Scale OLED Display,Compatible with Raspberry Pi/Arduino/STM32,SPI/I2C Interface,SSD1327 Driver
Brand : waveshare
new | waveshare 1.32inch OLED Display Module, 128x96 Pixels 16 Gray Scale OLED Display,Compatible with Raspberry Pi/Arduino/STM32,SPI/I2C Interface,SSD1327 Driver
Brand : waveshare

*Prices subject to change due to market. The price shown in the checkout is the guaranteed price.
₹ 3,831.00
M.R.P :₹ 5,363.00

5% OFF

Availability :
In Stock

*Prices subject to change due to market. The price shown in the checkout is the guaranteed price.
₹ 3,831.00
M.R.P : ₹ 5,363.00

5% OFF

Availability :
In Stock
Delivery :
Available This pincode is not serviceable! Please try with a different pincode Checking...
Quantity
7 days Replacement
7 days Replacement
Manufacturers Warranty
Manufacturers Warranty
Top Brand
Top Brand
Free delivery
Free delivery
Secure Transaction
Secure Transaction
Blue Dart Delivered
Blue Dart Delivered
Contact For Bulk Product Enquiry
100% Guarantee Safe Checkout
  • visa
  • mastercard
  • discover
  • Maestrocard
  • paypal
  • americanexpress
  • paytm
  • upi
Note: Please be aware that products from the USA may come with an input voltage of 110V - 120V, requiring the use of an appropriate step-down transformer for compatibility. Understanding the device's wattage is essential for selecting the correct power converter.
Product Specifications
Conditionnew
AsinB0CB5K9ZWS
CategoryElectronics
SubcategorySingle Board Computers
LeafcategoryCOMPUTER_COMPONENT
MPN1.32inch OLED Display
OriginUSA
Brandnamewaveshare
Weight1
Product Details
128×96 Resolution 16 Gray Scale 1.32inch OLED Display Module
Ultra-narrow bezel, conpact size, with onboard voltage translator
Adopts 4-wire SPI and I2C interfaces, better compatibility, fast data rate
SSD1327 Driver
Comes with online development resources (examples for Raspberry Pi/Arduino/STM32)
Product Ranking
#10884 in Single Board Computers (Computers & Accessories)
Product Description
1.32inch OLED Display Module
Embedded SSD1327 Driver Chip, SPI / I2C Communication
Comes with examples for Raspberry Pi, Arduino, STM32, etc.

Parameters
Operating voltage: 3.3V/5V (IO high-level voltage and supply voltage need to be the same)
Communication bus: 4-wire SPI/I2C
Screen type: OLED
Controller: SSD1327
Resolution: 128 × 96 Pixels
Outline dimensions: 32.6mm × 28.3mm
Display dimensions: 26.86mm × 20.14mm
Display color: White
Grey scale: 16
Operating temperature: -20°C ~ 70°C
Storage temperature: -30°C ~ 80°C
Viewing angle: > 160°

Control Interface
RES---Reset, low active
DC---Data/Command selection (high for data, low for command)
CS---Chip selection, low active
CLK---Clock input
DIN---Data input
GND---Ground
VCC---Power (3.3V / 5V input)

Development Resources
https://www.waveshare.com/wiki/1.32inch_OLED_Module?Amazon

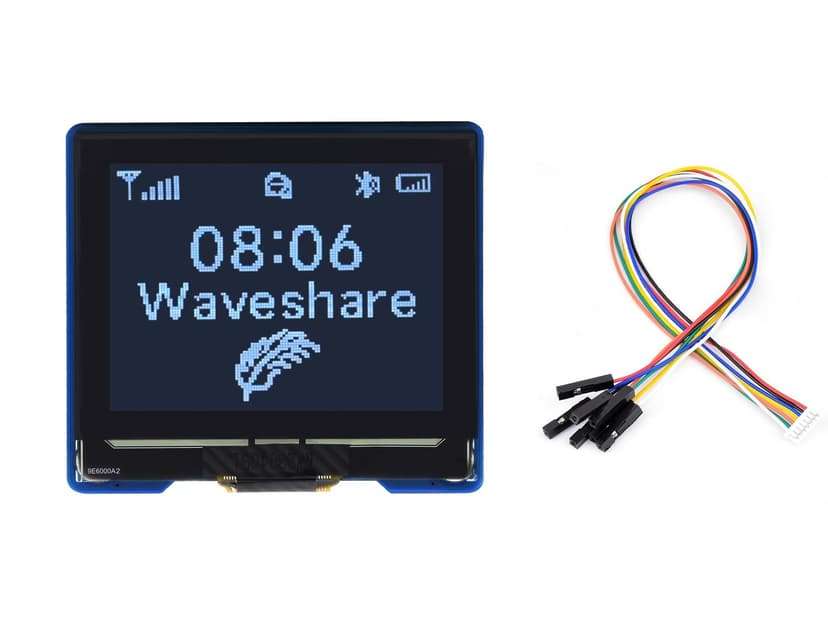

Package Content
1.32inch OLED Module x1
GH1.25 7PIN cable x1

Note
Development Resources is provided , please contact us if you have any problem .
