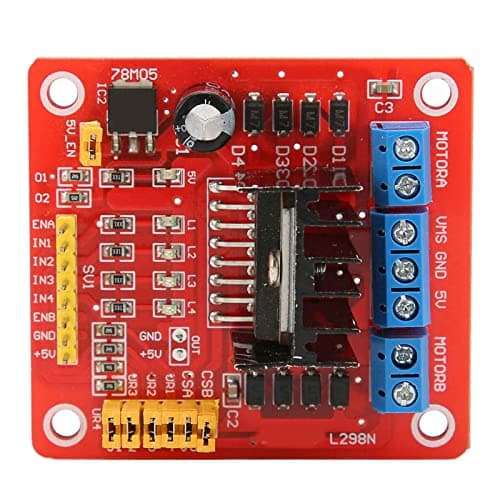

new | H Bridge Motor Driver, Motor Driver Module, L298N H Bridge DC Stepper Motor Driver Module Motor Controller Board, Electric Motor Controls
Brand : FTVOGUE
new | H Bridge Motor Driver, Motor Driver Module, L298N H Bridge DC Stepper Motor Driver Module Motor Controller Board, Electric Motor Controls
Brand : FTVOGUE
Product Specifications
Conditionnew
AsinB0C9QTPN6K
CategoryIndustrial & Scientific
SubcategoryMotor Speed Controllers
LeafcategoryMECHANICAL_COMPONENTS
MPNFTVOGUEotu2f1xm47
OriginUSA
BrandnameFTVOGUE
Weight1
Product Details
APPLICATION FOR: This motor driver module can drive a 2 phase stepper motor, a 4 phase stepper motor or 2 DC motors, with strong practicability.
DRIVER CHIP: L298N H bridge driver chip
AFTER-SALES SERVICE - If there is any questions of your orders/item/ or the service, please feel to us through email,And we will write back as soon as possible!
COMPACT SIZE: The DC motor controller board has compact size, easy to install, stable and in .
APPLICABLE MOTOR: Can drive a 2 phase stepper motor, a 4 phase stepper motor or 2 DC motors, with strong practicability.





Product Ranking
#378 in Motor Drives
#780983 in Industrial & Scientific
Product Description
Specification:
Item Type: Motor Driver Module
Driver Chip: L298N H bridge driver chip
Drive Part Terminal Power Supply Range VMS: 5V-35V
Drive Part Peak Current Io: 2A/Bridge
Logic Part Terminal Power Supply Range Vss: 4.5-5.5V
Logic Part Operating Current Range: 0-36mA
Control Input Voltage Range: High level 4.5-5.5V, low level 0V
Maximum Power Consumption: 20W
Storage Temperature: -25℃-130℃
Driver Board Size: Approx. 55 x 60 x 30mm / 2.2 x 2.4 x 1.2in
Driver Board Weight: Approx. 33g / 1.2oz
Other Functions: Control direction indicator, power indicator, current detection, logic part on board power taking interface.

Package List:
1 x Motor Driver Module
Product Description
Specification:
Item Type: Motor Driver Module
Driver Chip: L298N H bridge driver chip
Drive Part Terminal Power Supply Range VMS: 5V-35V
Drive Part Peak Current Io: 2A/Bridge
Logic Part Terminal Power Supply Range Vss: 4.5-5.5V
Logic Part Operating Current Range: 0-36mA
Control Input Voltage Range: High level 4.5-5.5V, low level 0V
Maximum Power Consumption: 20W
Storage Temperature: -25℃-130℃
Driver Board Size: Approx. 55 x 60 x 30mm / 2.2 x 2.4 x 1.2in
Driver Board Weight: Approx. 33g / 1.2oz
Other Functions: Control direction indicator, power indicator, current detection, logic part on board power taking interface.

Package List:
1 x Motor Driver Module
