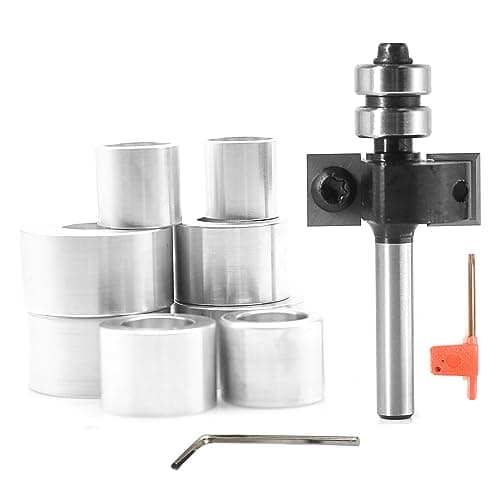

Precise Size: The Insert rabbet router bit set with 1/4" shank, 1-1/8 cut dia, cutting height 15/32", The rabbet bit itself rabbet depth is 1/4" (with no collars mounted), replacement knife size 12x12x1.5mm, Purchase blade search: B0BN465DH7, full length 2-5/16", between two bearings has a 4.8x9x2mm spacer , Includes the following:3/32" Allen key, T15 Torx Key, screw, 8 collars. Max RPM 22000
8 Collars: The Insert rabbet bit set can be changing the collars on the twin ball-bearing guide steps. bearing 8 collars diameter as: 1-1/8, 1-1/16", 1", 7/8”, 13/16", 3/4", 5/8”, 9/16", to cut 9 rabbets of different depth as: flush, 9/16, 1/32, 1/16, 1/8, 5/32, 3/16, 1/4, 9/32.
Various Cutting: The Insert rabbet router bit set can be cut 9 Different Depth rabbet, there are 8 different rabbet sizes available, Between the standard and optional collars, enabling you to cut a wide range of rabbets.
Quality Blade: The Insert rabbet router bit reversible and replaceable inserts made of Ultrafine C3 carbide, details as below. Inserts are ground by 5 axis CNC machines to ensure the sizes tolerance less than 0.000787” (0.02mm) , lnserts can be rotated or replaced without removingthe bit from the router, cost saving, economical.
Bit body: The Insert rabbeting router bit made by SCM440 Steel, heated to hardness 35-40HRC to ensure the body and the crews strong enough and could be used years. Bit body was fully ground and made by 4 or 5 axis CNC machining center, so that inserts could be mounted accurately and easily. Bit body is black oxided finish for anti-rust.
Widely Used: This Insert rabbeting bit set suitable for Hardwood, Softwood, MDF, Particle board, Plywood, Acrylic, different wood composites, aluminium or other Non-ferrous metal, using on portable router or router table. Maximum RPM=22,000
