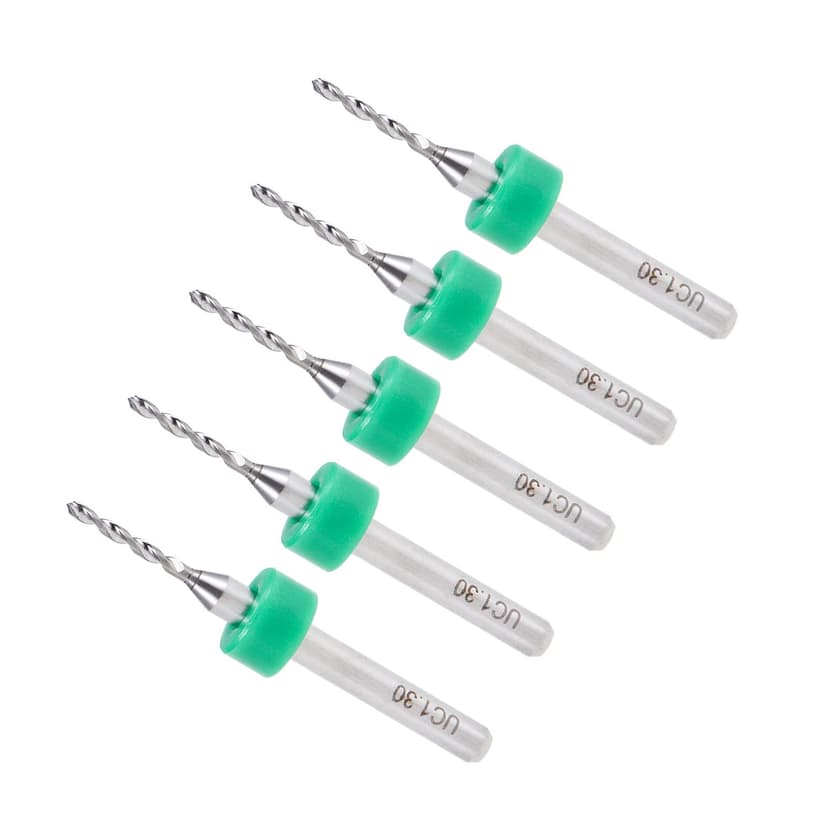

new | CoCud Micro PCB Drill Bits, 1/8" Shank 1.3mm Cutting Edge, Tungsten Carbide Print Circuit Board Drill Bit - (Applications: for CNC Drilling Engraving Machine), 5-Pieces
Brand : CoCud
new | CoCud Micro PCB Drill Bits, 1/8" Shank 1.3mm Cutting Edge, Tungsten Carbide Print Circuit Board Drill Bit - (Applications: for CNC Drilling Engraving Machine), 5-Pieces
Brand : CoCud

*Prices subject to change due to market. The price shown in the checkout is the guaranteed price.
₹ 2,659.00
M.R.P :₹ 3,722.00

5% OFF

Availability :
In Stock

*Prices subject to change due to market. The price shown in the checkout is the guaranteed price.
₹ 2,659.00
M.R.P : ₹ 3,722.00

5% OFF

Availability :
In Stock
Delivery :
Available This pincode is not serviceable! Please try with a different pincode Checking...
Quantity
7 days Replacement
7 days Replacement
Manufacturers Warranty
Manufacturers Warranty
Top Brand
Top Brand
Free delivery
Free delivery
Secure Transaction
Secure Transaction
Blue Dart Delivered
Blue Dart Delivered
Contact For Bulk Product Enquiry
100% Guarantee Safe Checkout
  • visa
  • mastercard
  • discover
  • Maestrocard
  • paypal
  • americanexpress
  • paytm
  • upi
Note: Please be aware that products from the USA may come with an input voltage of 110V - 120V, requiring the use of an appropriate step-down transformer for compatibility. Understanding the device's wattage is essential for selecting the correct power converter.
Product Specifications
Conditionnew
AsinB0BWV3D99B
CategoryTools & Home Improvement
SubcategoryStraight
LeafcategoryDRILL_BITS
MPNcuf221104dd0425
OriginUSA
BrandnameCoCud
Weight1
Product Details
★ PCB Drill Bits Size --- Cutting edge diameter (CED): 1.3mm / 0.051"; cutting edge length: 10mm / 0.394"; shank diameter: 3.175mm / 1/8"; overall length: 38mm / 1-1/2".
★ Wide Applications --- Widely used for drilling PCB (print circuit board), acrylic, plastics, aluminium, soft metal, fiberglass, wood, etc. Suitable for PCB drilling machines, engraving machines, CNC and high precision special drilling equipment.
★ Sharp Cutting Edge --- Sharp cutting edge provides smooth drilling, low cutting force and drilling accuracy to prevent tool breakage. Large chip removal space, smooth chip removal, and low drilling heat.
★ Tungsten Carbide --- Tungsten carbide tip has high hardness, good toughness, wear resistance, high strength, resistance to bending and heat resistance, providing a precise and easy experience.
★ Useful Tips --- The mini drill bit is too tiny and easily twisted off. Be careful and control your CNC speed. The longer the chuck clamps, the better. The positioning ring reduces machine set-up time and increase efficiency.
Product Description
Attributes:
* Cutting Edge Diameter (CED): 1.3mm / 0.051"
* Cutting Edge Length: 10mm / 0.394"
* Shank Diameter: 3.175mm / 1/8"
* Overall Length: 38mm / 1-1/2"
* Cutting Edge Material: Tungsten Carbide
* Shank Material: HSS (High Speed Steel)

What Is Included:
* 5 Pieces x PCB Drill Bits

Applications & Features:
--- Widely used for drilling PCB (print circuit board), acrylic, plastics, aluminium, soft metal, fiberglass, wood, etc. Suitable for PCB drilling machines, engraving machines, CNC and high precision special drilling equipment. Use vertically and control your CNC speed well. Can work quickly and cleanly, no glitches or scrap left.
--- Tungsten carbide bits have high hardness, good toughness, wear resistance, high strength, resistance to bending and heat resistance, providing a precise and easy experience. With good milling and engraving performance, carbide materials can run at higher speed than high-speed steel to ensure high work efficiency. Sharp cutting edge provides smooth drilling, low cutting force and drilling accuracy to prevent tool breakage. Large chip removal space, smooth chip removal, and low drilling heat. The positioning ring reduces machine set-up time and increase efficiency.

Useful Tips:
--- The mini drill bit is too tiny and easily twisted off. Be careful and control your CNC speed. The longer the chuck clamps, the better. If the clamping length is short, the feed rate and cutting speed should be reduced to reduce vibration and increase tool life.
Product Description
Attributes:
* Cutting Edge Diameter (CED): 1.3mm / 0.051"
* Cutting Edge Length: 10mm / 0.394"
* Shank Diameter: 3.175mm / 1/8"
* Overall Length: 38mm / 1-1/2"
* Cutting Edge Material: Tungsten Carbide
* Shank Material: HSS (High Speed Steel)

What Is Included:
* 5 Pieces x PCB Drill Bits

Applications & Features:
--- Widely used for drilling PCB (print circuit board), acrylic, plastics, aluminium, soft metal, fiberglass, wood, etc. Suitable for PCB drilling machines, engraving machines, CNC and high precision special drilling equipment. Use vertically and control your CNC speed well. Can work quickly and cleanly, no glitches or scrap left.
--- Tungsten carbide bits have high hardness, good toughness, wear resistance, high strength, resistance to bending and heat resistance, providing a precise and easy experience. With good milling and engraving performance, carbide materials can run at higher speed than high-speed steel to ensure high work efficiency. Sharp cutting edge provides smooth drilling, low cutting force and drilling accuracy to prevent tool breakage. Large chip removal space, smooth chip removal, and low drilling heat. The positioning ring reduces machine set-up time and increase efficiency.

Useful Tips:
--- The mini drill bit is too tiny and easily twisted off. Be careful and control your CNC speed. The longer the chuck clamps, the better. If the clamping length is short, the feed rate and cutting speed should be reduced to reduce vibration and increase tool life.
