new | waveshare LCD1602 I2C Module AiP31068 Controller,16x2 Characters LCD Display,White Color with Blue Background 3.3V/5V, for Arduino/Raspberry Pi/Raspberry Pi Pico/Jetson Nano/ESP32/STM32
Brand : waveshare
new | waveshare LCD1602 I2C Module AiP31068 Controller,16x2 Characters LCD Display,White Color with Blue Background 3.3V/5V, for Arduino/Raspberry Pi/Raspberry Pi Pico/Jetson Nano/ESP32/STM32
Brand : waveshare

*Prices subject to change due to market. The price shown in the checkout is the guaranteed price.
 3,504.00
M.R.P : 4,905.00

5% OFF

Availability :
In Stock

*Prices subject to change due to market. The price shown in the checkout is the guaranteed price.
3,504.00
M.R.P : 4,905.00

5% OFF

Availability :
In Stock
Delivery :
Available This pincode is not serviceable! Please try with a different pincode Checking...
Quantity
7 days   Replacement
7 days Replacement
Manufacturers Warranty
Manufacturers Warranty
Top Brand
Top Brand
Free delivery
Free delivery
Secure Transaction
Secure Transaction
Blue Dart Delivered
Blue Dart Delivered
100% Guarantee Safe Checkout
  • visa
  • mastercard
  • discover
  • Maestrocard
  • paypal
  • americanexpress
  • paytm
  • upi
Note: Please be aware that products from the USA may come with an input voltage of 110V - 120V, requiring the use of an appropriate step-down transformer for compatibility. Understanding the device's wattage is essential for selecting the correct power converter.
Product Specifications
Conditionnew
AsinB0BWK77S6Q
CategoryElectronics
SubcategorySingle Board Computers
LeafcategorySINGLE_BOARD_COMPUTER
ColorLCD1602 I2C
OriginUSA
Brandnamewaveshare
Weight1
Product Details

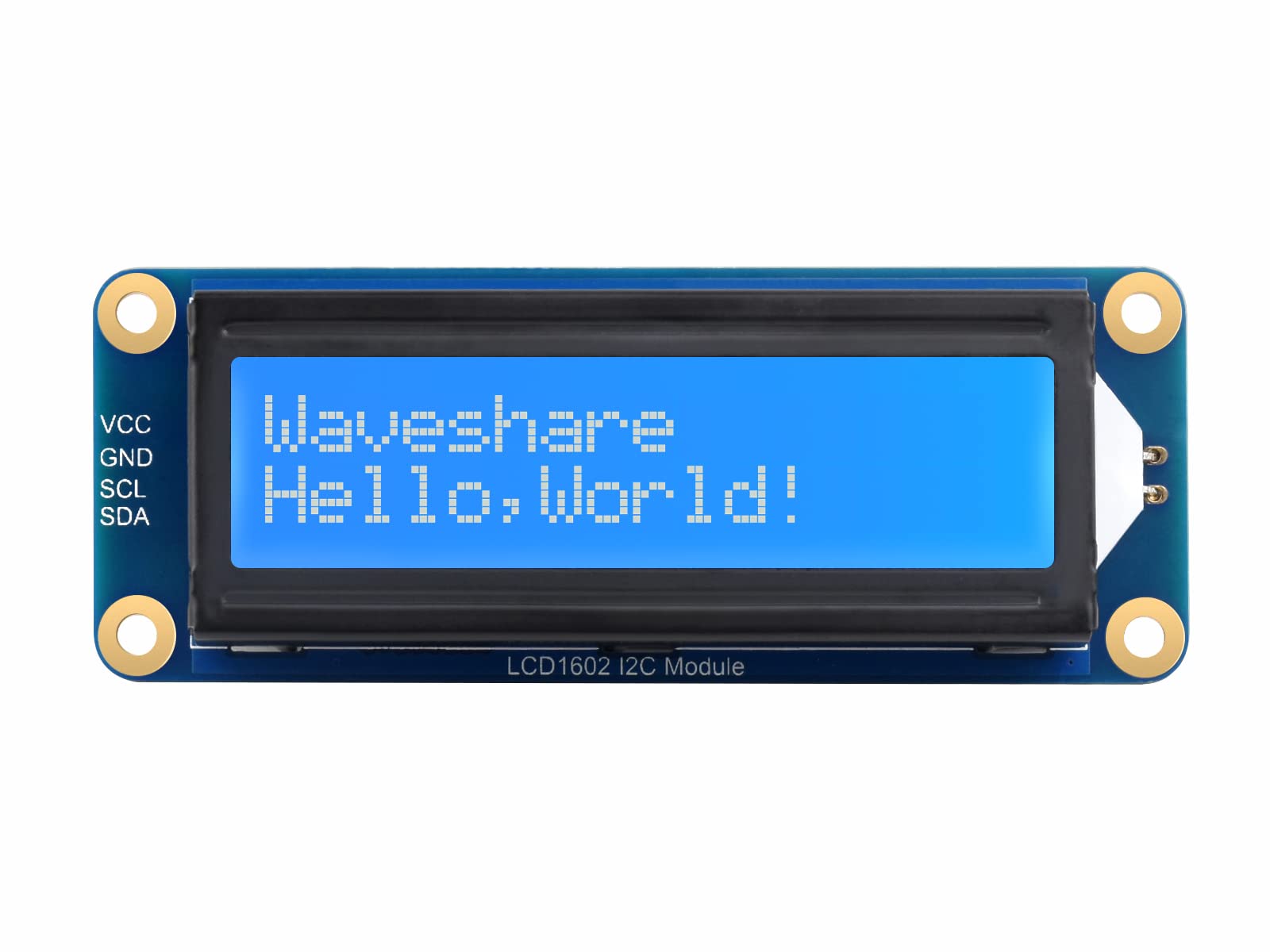

LCD1602 I2C Module, White Color With Blue Background, 16x2 Characters LCD. Onboard AiP31068L LCD driver chip.
Compatible with 3.3V/5V operating voltage.
I2C control interface, only two signal pins are required, saving the IO resource.Easy to access a variety of control boards.
Can display up to 16 x 2 characters, support screen scrolling, cursor movement, and other functions
Compatible With Raspberry Pi/Raspberry Pi Pico/Jetson Nano/ESP32/Arduino/STM32. Provides Raspberry Pi/Raspberry Pi Pico/Jetson Nano/ESP32/for Arduino/STM32 Demos And User Manuals, Easier To Develop And Integrate, And Better Expansibility
Product Ranking
#10554 in Single Board Computers (Computers & Accessories)
Product Description
Overview
LCD1602 I2C Module, White Color With Blue Background, I2C Communication, 3.3V/5V Compatible. Compatible With Raspberry Pi/Raspberry Pi Pico/Jetson Nano/ESP32/for Arduino/STM32.

Features
Incorporates character LCD panel LCD1602
I2C control interface, only two signal pins are required, saving the IO resource
Compatible with 3.3V/5V operating voltage
Comes with online development resources and manual (Raspberry Pi/Jetson Nano/ESP32/Arduino examples)

Specification
Operating voltage: 3.3V/5V
Communication interface: I2C
Screen type: LCD screen
Control chip: AiP31068L
Display dimensions: 64.5 x 16.0 mm
Outline dimensions: 87.0 x 32.0 x 13.0(mm)
Operating current: 26mA(5V), 13mA (3.3V)

Online Tutorial/Online user manual: n9.cl/8z8bt

PACKAGE CONTENT
LCD1602 RGB Module x1
PH2.0 4PIN wire x1
Product Description
Overview
LCD1602 I2C Module, White Color With Blue Background, I2C Communication, 3.3V/5V Compatible. Compatible With Raspberry Pi/Raspberry Pi Pico/Jetson Nano/ESP32/for Arduino/STM32.

Features
Incorporates character LCD panel LCD1602
I2C control interface, only two signal pins are required, saving the IO resource
Compatible with 3.3V/5V operating voltage
Comes with online development resources and manual (Raspberry Pi/Jetson Nano/ESP32/Arduino examples)

Specification
Operating voltage: 3.3V/5V
Communication interface: I2C
Screen type: LCD screen
Control chip: AiP31068L
Display dimensions: 64.5 x 16.0 mm
Outline dimensions: 87.0 x 32.0 x 13.0(mm)
Operating current: 26mA(5V), 13mA (3.3V)

Online Tutorial/Online user manual: n9.cl/8z8bt

PACKAGE CONTENT
LCD1602 RGB Module x1
PH2.0 4PIN wire x1
