Buy Nanopi R5C Mini WiFi Router OpenWRT with Dual PCIe 2.5Gbps Ethernet M.2 WiFi Bluetooth Ports 4GB LPDDR4X RAM Based in Rockchip RK3568B2 Soc for IOT NAS Smart Home Gateway (with M.2 WiFi Module) Online at Lowest Price Ever in India

Condition	new
Asin	B0BNNP5RNT
Category	Electronics
Subcategory	Single Board Computers
Leafcategory	NETWORKING_ROUTER
MPN	Rockchip RK3568B2
Color	Black
Origin	USA
Brandname	WayPonDEV
Height	1.1811
Length	2.48031
Width	2.48031
Weight	1
Operating System	FriendlyWrt 22.03(64-bit)
Warranty Description	WayPonDEV Return Policy: You may return any new computer purchased from WayPonDEV that is "dead on arrival", arrives damaged, or is still in unopened boxes for the refund within 30 days of purchase. WayPonDEV reserves the right to return " Dead on Arrival" and charge a customer fee equal to 15 percent of the product retail price if the customer misrepresents the condition of the product. For any returned computer that is damaged due to customer misuse, is missing parts, or is in an unsellable condition due to customer intervention, the customer will be charged a higher restocking fee based on the condition of the product. WayPonDEV will not accept returns of desktop or notebook computers more than 30 days after receipt of the shipment. New, used, and refurbished products purchased from Marketplace Vendors are subject to each Vendor's return policy.
RAM Memory Installed Size	4 GB

[Wireless Mobile Mini Travel Router] Nanopi R5C Mini Wifi Router Adopt Rockchip RK3568B2 SoC with 4GB LPDDR4x RAM and 32GB eMMC. CPU: Quad-core ARM Cortex-A55 CPU, up to 2.0GHz. 0.8T NPU. GPU: Mali-G52 1-Core-2EE, supports OpenGL ES 1.1, 2.0, and 3.2, Vulkan 1.0 and 1.1, OpenCL 2.0 Profile.

[OPEN SOURCE and Programmable] NanoPi R5C portable mini router can support FriendlyWrt, a custom system based on the OpenWrt distribution. It is open source and ideal for developing IoT applications, NAS applications, smart home gateways, and more. It can also be used as a command line mode for geeks.

[Dual PCIe 2.5G GBPS ETHERNET PORTS] The NanoPi R5C Computer Mini Router has dual PCIe 2.5Gbps Ethernet ports; M.2 WiFi(RTL8822CE) support 802.11 a/b/g/n/ac protocol,TX rate is 276Mbps,RX rate is 156Mbps.

[LARGER EXTENSIBILITY & Interface] NanoPi R5C Mini Wifi Router supports M.2 WiFi and Bluetooth Module, with M.2 Key E: PCIe2.1 x1, USB 2.0 x1 Ports；microSD: support UHS-I; USB: two USB 3.2 Gen 1 Type-A ports; Debug: one Debug UART, 3 Pin 2.54mm header, 3.3V level ;1 x HDMI output interface; LEDs: 4 x GPIO Controlled LED (SYS, WAN, LAN, WL)

[OS/Software] NanoPi R5C Portable Router Running Android, FriendlyWrt 22.03(64-bit), Debian Buster Desktop (64-bit), FriendlyCore Focal Lite(Base on Ubuntu 20.04), Buildroot; Kernel version: Linux-5.10-LTS/U-boot-2017.09.

[4K Video Decoders and Encoders] NanoPi R5C mini portable travel Router support 4KP60 H.265/H.264/VP9 video decoder, 1080P60 H.264/H.265 video encoder.

[USER MANUAL] WiKi: "wiki.friendlyelec.com/wiki/index.php/NanoPi_R5C". Pls feel free to email us to get the Datasheet or any questions of this module after you purchased it. How to email us? Click ''forum.youyeetoo.com/'' and ask a question.

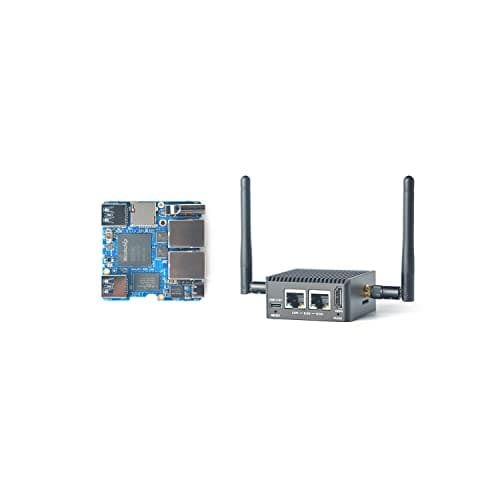

1 x Nanopi R5C 4GB RAM 32GB eMMC Mini Router--with CNC Metal Case 1 x M.2 WifI Module--Embedded in the board 2 x Wifi Antenna

#1204 in Computer Routers

#178820 in Electronics

NanoPi R5C ("R5C" for short) is a dual 2.5G development board, it uses Rockchip RK3568B2 as the main control processor, is equipped with 4GB LPDDR4x memory, and 32GB eMMC flash memory, and supports TF card to start and run FriendlyWrt and other systems . It has 1 HDMI output interface, can run Android, Buildroot, Debian, Ubuntu desktop and other systems, and can also be used as a command line mode that geeks like.

-Specification-

SoC: Rockchip RK3568B2

CPU: Quad-core ARM Cortex-A55 CPU, up to 2.0GHz

GPU: Mali-G52 1-Core-2EE，supports OpenGL ES 1.1, 2.0, and 3.2, Vulkan 1.0 and 1.1, OpenCL 2.0 Full Profile

VPU: 4KP60 H.265/H.264/VP9 video decoder, 1080P60 H.264/H.265 video encoder

NPU: Support 0.8T

RAM: 4GB LPDDR4X

Flash: 32GB eMMC

Ethernet: two PCIe 2.5Gbps Ethernet

USB: two USB 3.2 Gen 1 Type-A ports

HDMI:

support HDMI1.4 and HDMI2.0 operation

support up to 10 bits Deep Color modes

support up to 1080p@120Hz and 4096x2304@60Hz

support 3-D video formats

M.2 Key E: PCIe2.1 x1, USB 2.0 x1, supports M.2 WiFi and Bluetooth Module.

microSD: support UHS-I

Debug: one Debug UART, 3 Pin 2.54mm header, 3.3V level, 1500000bps

LEDs: 4 x GPIO Controlled LED (SYS, WAN, LAN, WL)

Others:

2 Pin 1.27/1.25mm RTC battery input connector for low power RTC IC HYM8563TS

MASK button for eMMC update

One User button

Power supply: USB-C 5V input

PCB: 8 Layer, 58x58x1.6mm

Ambient Operating Temperature: 0℃ to 70℃

-OS Support-

Android, FriendlyWrt 22.03(64-bit)

Debian Buster Desktop (64-bit)

FriendlyCore Focal Lite(Base on Ubuntu 20.04)

Buildroot

Kernel version: Linux-5.10-LTS/U-boot-2017.09.

-Package Content-

1 x Nanopi R5C 4GB RAM 32GB eMMC Mini Router--with CNC Metal Case

1 x M.2 WifI Module--Embedded in the board

2 x Wifi Antenna

-Technical Support-

Wiki: “”

Please click "WayPonDEV" and ask a question or monica#smartfire.cn (f------>@) skype: monica_9122

Please leave the message in our forum by forum.youyeetoo. com/

-Specification-

SoC: Rockchip RK3568B2

CPU: Quad-core ARM Cortex-A55 CPU, up to 2.0GHz

GPU: Mali-G52 1-Core-2EE，supports OpenGL ES 1.1, 2.0, and 3.2, Vulkan 1.0 and 1.1, OpenCL 2.0 Full Profile

VPU: 4KP60 H.265/H.264/VP9 video decoder, 1080P60 H.264/H.265 video encoder

NPU: Support 0.8T

RAM: 4GB LPDDR4X

Flash: 32GB eMMC

Ethernet: two PCIe 2.5Gbps Ethernet

USB: two USB 3.2 Gen 1 Type-A ports

HDMI:

support HDMI1.4 and HDMI2.0 operation

support up to 10 bits Deep Color modes

support up to 1080p@120Hz and 4096x2304@60Hz

support 3-D video formats

M.2 Key E: PCIe2.1 x1, USB 2.0 x1, supports M.2 WiFi and Bluetooth Module.

microSD: support UHS-I

Debug: one Debug UART, 3 Pin 2.54mm header, 3.3V level, 1500000bps

LEDs: 4 x GPIO Controlled LED (SYS, WAN, LAN, WL)

Others:

2 Pin 1.27/1.25mm RTC battery input connector for low power RTC IC HYM8563TS

MASK button for eMMC update

One User button

Power supply: USB-C 5V input

PCB: 8 Layer, 58x58x1.6mm

Ambient Operating Temperature: 0℃ to 70℃

-OS Support-

Android, FriendlyWrt 22.03(64-bit)

Debian Buster Desktop (64-bit)

FriendlyCore Focal Lite(Base on Ubuntu 20.04)

Buildroot

Kernel version: Linux-5.10-LTS/U-boot-2017.09.

-Package Content-

1 x Nanopi R5C 4GB RAM 32GB eMMC Mini Router--with CNC Metal Case

1 x M.2 WifI Module--Embedded in the board

2 x Wifi Antenna

-Technical Support-

Wiki: “”

Please click "WayPonDEV" and ask a question or monica#smartfire.cn (f------>@) skype: monica_9122

Please leave the message in our forum by forum.youyeetoo. com/
