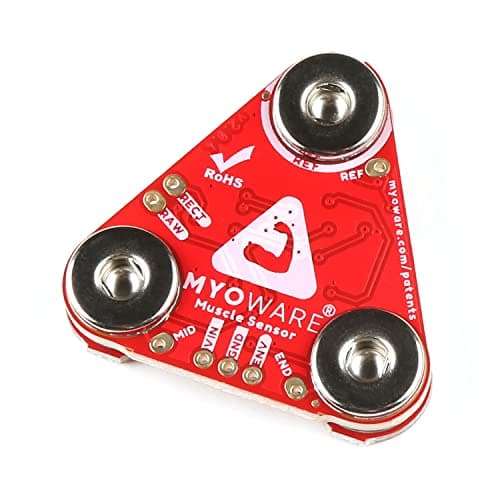

new | MyoWare Muscle Sensor 2.0 - Compatible with Arduino- All-in-One Electromyography (EMG) Sensor - Keyed Snap Connector
Brand : MyoWare
new | MyoWare Muscle Sensor 2.0 - Compatible with Arduino- All-in-One Electromyography (EMG) Sensor - Keyed Snap Connector
Brand : MyoWare
Availability :
Out Of Stock
Click to connect with our customer support
Product Specifications
Conditionnew
AsinB0BM2YKHRR
CategoryElectronics
SubcategorySingle Board Computers
LeafcategoryELECTRONIC_SENSOR
MPNDEV-21265
OriginUSA
BrandnameMyoWare
Height0.062992
Length1.4791309
Width1.413383
Weight1
Product Details
Revision Changes: The following changes for V2.0.4 include: PCB board thickness increased; NPTH for snap connector buttons; Updated footprint for snap connectors buttons with slots for improved cleaning; Updated size of reference pin's jumper pad
Note: This sensor is not intended for use in the diagnosis of disease or other conditions, or in the cure, mitigation treatment, or prevention of disease, in a person or other animals
Wearable Design: Sensor pads attach to the board directly and remove the need for wires; Note: Board only; additional accessories may be required
Supply Voltage: Minimum: +2.27 V; Typically: +3.3 V to +5 V; Maximum: +5.47 V; Input Bias Current: 250 pA, max 1 nA; Reverse Polarity Protection; Three Output Modes: Raw EMG, Rectified, Envelope; LED Indicators: VIN, ENV
MyoWare 2.0 Muscle Sensor Form Factor: 3x Female Snap Pins (Input Electrodes), 3x Male Snap Pins (Power & EMG Envelope Output); Expandable via Shields; Reference Electrode Jumper; Specially Designed For Microcontrollers; Adjustable Gain; Board Dimensions: 37.57 mm x 35.90 mm (1.48 in x 1.41 in)
What's Inside The Box ?
3x Female Snap Pins 3x Male Snap Pins
Product Ranking
#4654 in Single Board Computers (Computers & Accessories)
Product Description
The MyoWare Muscle sensor has been redesigned from the ground up with a new easy-to-use, compact design & upgraded with the latest & greatest chipset improving sensor performance & reliability. The innovative snap connector system eliminates the need to solder connections for the MyoWare 2.0 ecosystem. It's that easy: stick on a few electrodes (not included), read the output voltage & flex some muscles!
The sensor measures muscle activity through the electric potential of the muscle, commonly referred to as surface electromyography (EMG or sEMG for short). When your brain tells your muscle to flex, it sends an electrical signal to your muscle to start recruiting motor units (the bundles of muscle fibers that generate the force behind your muscles).
The sensor builds upon its previous wearable design that allows you to attach sensor pads directly to the board itself, getting rid of those pesky cables. This board includes a single-supply voltage of +3.3V to +5V, three output modes, reverse polarity protected power pins, & indicator LEDs. We have developed a few shields (such as the Cable, Power, & LED shields to name a few) that can attach to the MyoWare 2.0 Muscle Sensor to help increase its versatility & functionality!
The MyoWare 2.0 ecosystem consists of shields that easily interface with the MyoWare 2.0 Muscle Sensor, which is a low-cost, compatible with Arduino, all-in-one electromyography (EMG) sensor from Advancer Technologies. The innovative connector system allows users to easily snap shields together with a compact low profile & connect to a microcontroller's analog input to measure raw, filtered, & rectified electrical activity of a target muscle. This eliminates the need to solder connections between boards.
This product is a collaboration with Brian Kaminski from Advancer Technologies. A portion of each sales goes back to them for product support & continued development.
Product Description
The MyoWare Muscle sensor has been redesigned from the ground up with a new easy-to-use, compact design & upgraded with the latest & greatest chipset improving sensor performance & reliability. The innovative snap connector system eliminates the need to solder connections for the MyoWare 2.0 ecosystem. It's that easy: stick on a few electrodes (not included), read the output voltage & flex some muscles!
The sensor measures muscle activity through the electric potential of the muscle, commonly referred to as surface electromyography (EMG or sEMG for short). When your brain tells your muscle to flex, it sends an electrical signal to your muscle to start recruiting motor units (the bundles of muscle fibers that generate the force behind your muscles).
The sensor builds upon its previous wearable design that allows you to attach sensor pads directly to the board itself, getting rid of those pesky cables. This board includes a single-supply voltage of +3.3V to +5V, three output modes, reverse polarity protected power pins, & indicator LEDs. We have developed a few shields (such as the Cable, Power, & LED shields to name a few) that can attach to the MyoWare 2.0 Muscle Sensor to help increase its versatility & functionality!
The MyoWare 2.0 ecosystem consists of shields that easily interface with the MyoWare 2.0 Muscle Sensor, which is a low-cost, compatible with Arduino, all-in-one electromyography (EMG) sensor from Advancer Technologies. The innovative connector system allows users to easily snap shields together with a compact low profile & connect to a microcontroller's analog input to measure raw, filtered, & rectified electrical activity of a target muscle. This eliminates the need to solder connections between boards.
This product is a collaboration with Brian Kaminski from Advancer Technologies. A portion of each sales goes back to them for product support & continued development.
