new | JESSINIE DRV8301 High Power Motor Driver Module Dual Current Shunt Amplifier Three Phase Power Grid Driver and Step Down Regulator High Power Motor Driver Module BLDC Brushless PMSM Driver
Brand : JESSINIE
new | JESSINIE DRV8301 High Power Motor Driver Module Dual Current Shunt Amplifier Three Phase Power Grid Driver and Step Down Regulator High Power Motor Driver Module BLDC Brushless PMSM Driver
Brand : JESSINIE
₹ 10,222.00 M.R.P :₹ 17,037.00
40% OFF
₹ 10,222.00
M.R.P :₹ 17,037.00
40% OFF
✔ In Stock
*Prices subject to change due to market. The price shown in the checkout is the guaranteed price. ₹ 10,222.00 M.R.P : ₹ 17,037.00
40% OFF
₹ 10,222.00
M.R.P : ₹ 17,037.00
40% OFF
✔ In Stock
Check Delivery Availability
Available Checking...
Quantity:
1
7 days Replacement
Secure Transaction
Free delivery
Manufacturers Warranty
Top Brand
Blue Dart Delivered
Contact For Bulk Product Enquiry
100% Secure Payments
Safe and Trusted Checkout
Note: Please be aware that products from the USA may come with an input voltage of 110V - 120V, requiring the use of an appropriate step-down transformer for compatibility. Understanding the device's wattage is essential for selecting the correct power converter.
Product Specifications
Condition
New
Asin
B0BG2DH5LF
Category
Electronics
Subcategory
Single Board Computers
Leafcategory
SINGLE_BOARD_COMPUTER
Processor Count
1
Origin
USA
Brandname
JESSINIE
Weight
1
Total USB Ports
1
RAM Memory Technology
DDR4
Product Details

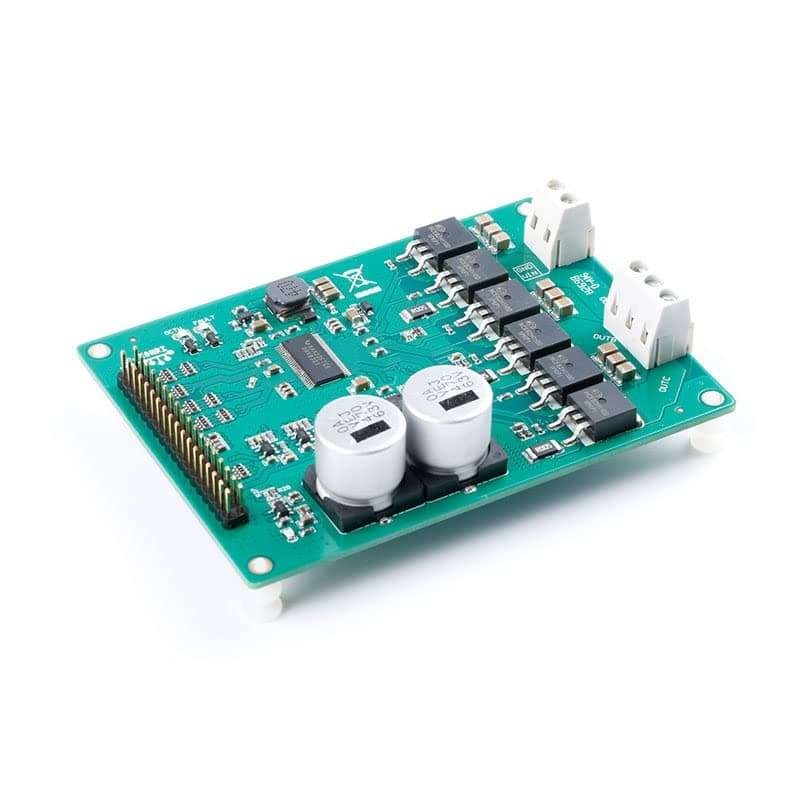

Overview：The DRV8301 is a 6V to 60V gate driver IC for three phase motor drive applications. This device reduces external component count by integrating three half bridge drivers, two current shunt amplifiers, and a switching buck converter. The DRV8301 provides overcurrent, overtemperature, and undervoltage protection. Fault conditions are indicated through the nFAULT and nOCTW pins in addition to the SPI registers.
Features: The power supply voltage range is 6-60v. CurrentCapability comes with 1.7-A source and 2.3-A sink door driver. The product can also reduce electromagnetic interference variable speed control. The product features a guide door drive with 100% cycle support. There are 6 or 3 pwm input modes to choose from. The DRV8301 dual integrated current shunt amplifier has adjustable gain and offset. With integrated 1.5 a Buck converter. Supports 3.3 v and 5 v interfaces And SPI.
Protection functions: DRV8301 has the following protection functions. Programmable dead time control (DTC), programmable overcurrent protection (OCP), PVDD and GVDD undervoltage lockout (UVLO), GVDD overvoltage lockout (OVLO), overtemperature warning/shutdown (OTW/OTS), and reporting via nFAULT, nOCTW, and SPI registers. These functions can better ensure your safety when using this product.
3 Phase Gate Driver：The half bridge drivers use a bootstrap configuration with a trickle charge pump to support 100% duty cycle operation. Each half-bridge is configured to drive two N-channel MOSFETs, one for the high-side and one for thelow-side. The half-bridge drivers can be used in combination to drive a 3-phase motor or separately to drivevarious other loads.
Current Shunt Amplifiers：To minimize DC offset and drift overtemperature, a calibration method is provided through either the DC_CAL pin or SPI register. When DC calibration is enabled, the device will short the input of the current shunt amplifier and disconnect the load. DC calibration can be done at any time, even during MOSFET switching, because the load is disconnected.
Product Ranking
#3014 in Single Board Computers (Computers & Accessories)
Product Description
The DRV8301 is a gate driver IC for three-phasemotor drive applications. The device provides threehalf-bridge drivers, each capable of driving two N channel MOSFETs. The DRV8301 supports up to1.7-A source and 2.3-A peak current capability. TheDRV8301 can operate off of a single power supplywith a wide range from 6-V to 60-V. The device uses a bootstrap gate driver architecture with trickle charge circuitry to support 100% duty cycle. The DRV8301 uses automatic handshaking when the high-side or low-side MOSFET is switching to prevent flow of current. Integrated VDS sensing of the high-side and low-side MOSFETs is used to protect the external power stage against overcurrent conditions.
Product Description
The DRV8301 is a gate driver IC for three-phasemotor drive applications. The device provides threehalf-bridge drivers, each capable of driving two N channel MOSFETs. The DRV8301 supports up to1.7-A source and 2.3-A peak current capability. TheDRV8301 can operate off of a single power supplywith a wide range from 6-V to 60-V. The device uses a bootstrap gate driver architecture with trickle charge circuitry to support 100% duty cycle. The DRV8301 uses automatic handshaking when the high-side or low-side MOSFET is switching to prevent flow of current. Integrated VDS sensing of the high-side and low-side MOSFETs is used to protect the external power stage against overcurrent conditions.
