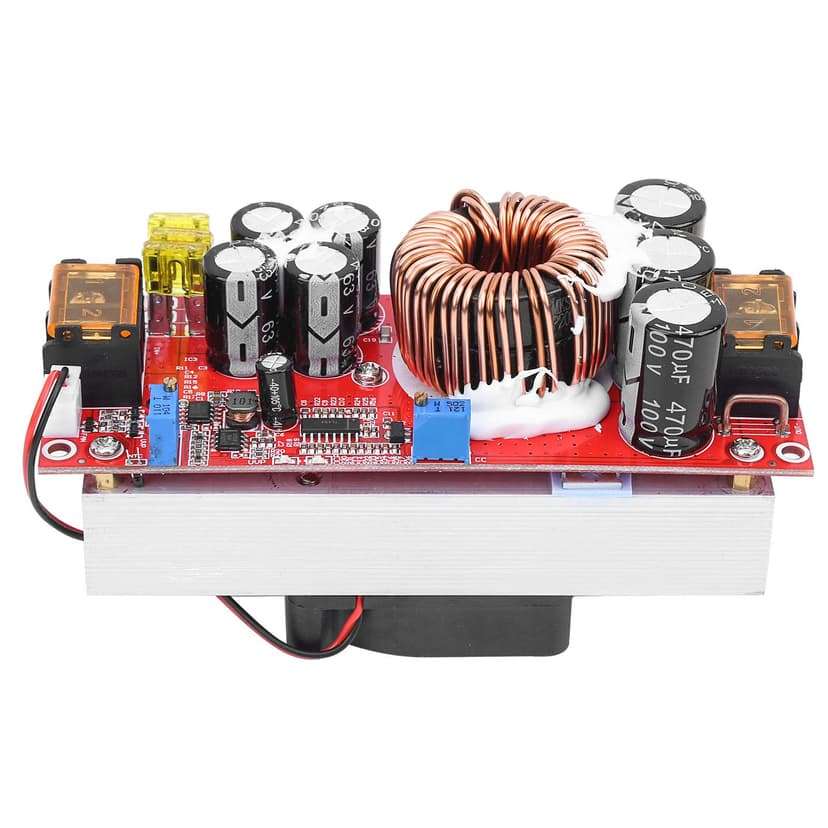

new | Boost Converter, CC CV Step Up Module, DC - DC 10-60V to 12-97V 1500W 30A Voltage Step Up Converter Boost CC CV Power Supply Module
Brand : Yosoo Health Gear
new | Boost Converter, CC CV Step Up Module, DC - DC 10-60V to 12-97V 1500W 30A Voltage Step Up Converter Boost CC CV Power Supply Module
Brand : Yosoo Health Gear
Product Specifications
Conditionnew
AsinB0BFG87KVT
CategoryElectronics
SubcategoryPower Converters
LeafcategoryTOOLS
MPNYosoo Health Geardn3mo0b9hy1879
OriginUSA
BrandnameYosoo Health Gear
Height2.755905509
Length5.118110231
Width1.968503935
Weight1
Product Details
High Performance: This is a non‑isolated DC power step up converter module that converts 10‑60VDC to 12‑97VDC, high power and stable output. components ensures high conversion efficiency, up to 97%
Smart Fan: This boost converter is designed with smart temperature control fan, which will automatically work when temperature reaches about 60℃, and stop when temperature drops below 60℃
Wide Appplication: The step up module is widely used for high power solar street lamp driving, various LED lighting CV driving, vehicle‑mounted and mobile device power supply, DIY adjustable CV CC power supply, solar power charging, and various batteries charging
Under Voltage Adjustable Range: DC10V‑50V. Firstly adjust under‑voltage to the minimum, then adjust input voltage to required under‑voltage value, slowly adjust under‑voltage value clockwise to increase; when the under‑voltage light is on, adjust counterclockwise of one circle, then power on again
Notice: Module output should not short circuit or measure current directly with multimeter short circuit, short circuit will burn out module





What's Inside The Box ?
inc
Product Ranking
#1782 in Power Converters
#395678 in Tools & Home Improvement
Product Description
Specification:
Type: Non‑isolated step‑up module (BOOST)
Input Voltage: DC10V to 60V
Input Current: 10V‑30V input voltage, maximum current is 35A‑40A; 31‑60V input voltage, maximum current is 30A‑35A
Quiescent Current: 15mA(when convert 12V to 20V, higher output voltage will increase quiescent current)
Output Voltage: 12‑97V continuously adjustable (cannot be used to step down voltage)
Output Current: 22A (related to the input and output voltage difference, the greater voltage difference is, the smaller output current will be. please enhance heat dissipation when current is over 15A)
Constant Current Range: 0.8‑22A(+/‑0.3A)
Reverse Input : Yes (150A power MOS reverse )
Input Low Voltage : Yes (10V‑50V adjustable, self‑recovery)
Operating Temperature: ‑40℃ to 85℃(if temperature is too high, please enhance heat dissipation)
Frequency: 150KHz
Conversion Efficiency: 92% to 97% (Efficiency is related to input/output voltage, current and voltage difference. The smaller difference is, the higher efficiency will be)
Input Over Current : Yes (automatically when input is more than 40A, and power supply voltage will not increase)
Short Circuit : Yes (input 60A ) please operate carefully, try not to cause short circuit.
Reverse Input : Yes ((150A power MOS tube, can be connected reversely for long time)
Installation Method: Four 3mm standoffs
Wiring Method: Terminal blocks (Please use large current copper wire)
Output Power: Maximum Output Power = Input Voltage*30A(If input 12V, the maximum output power=12V*30A = 360W)
(If input 24V, the maximum output power=24V*30A = 720W)
Product Description
Specification:
Type: Non‑isolated step‑up module (BOOST)
Input Voltage: DC10V to 60V
Input Current: 10V‑30V input voltage, maximum current is 35A‑40A; 31‑60V input voltage, maximum current is 30A‑35A
Quiescent Current: 15mA(when convert 12V to 20V, higher output voltage will increase quiescent current)
Output Voltage: 12‑97V continuously adjustable (cannot be used to step down voltage)
Output Current: 22A (related to the input and output voltage difference, the greater voltage difference is, the smaller output current will be. please enhance heat dissipation when current is over 15A)
Constant Current Range: 0.8‑22A(+/‑0.3A)
Reverse Input : Yes (150A power MOS reverse )
Input Low Voltage : Yes (10V‑50V adjustable, self‑recovery)
Operating Temperature: ‑40℃ to 85℃(if temperature is too high, please enhance heat dissipation)
Frequency: 150KHz
Conversion Efficiency: 92% to 97% (Efficiency is related to input/output voltage, current and voltage difference. The smaller difference is, the higher efficiency will be)
Input Over Current : Yes (automatically when input is more than 40A, and power supply voltage will not increase)
Short Circuit : Yes (input 60A ) please operate carefully, try not to cause short circuit.
Reverse Input : Yes ((150A power MOS tube, can be connected reversely for long time)
Installation Method: Four 3mm standoffs
Wiring Method: Terminal blocks (Please use large current copper wire)
Output Power: Maximum Output Power = Input Voltage*30A(If input 12V, the maximum output power=12V*30A = 360W)
(If input 24V, the maximum output power=24V*30A = 720W)
