flagProduct From USA

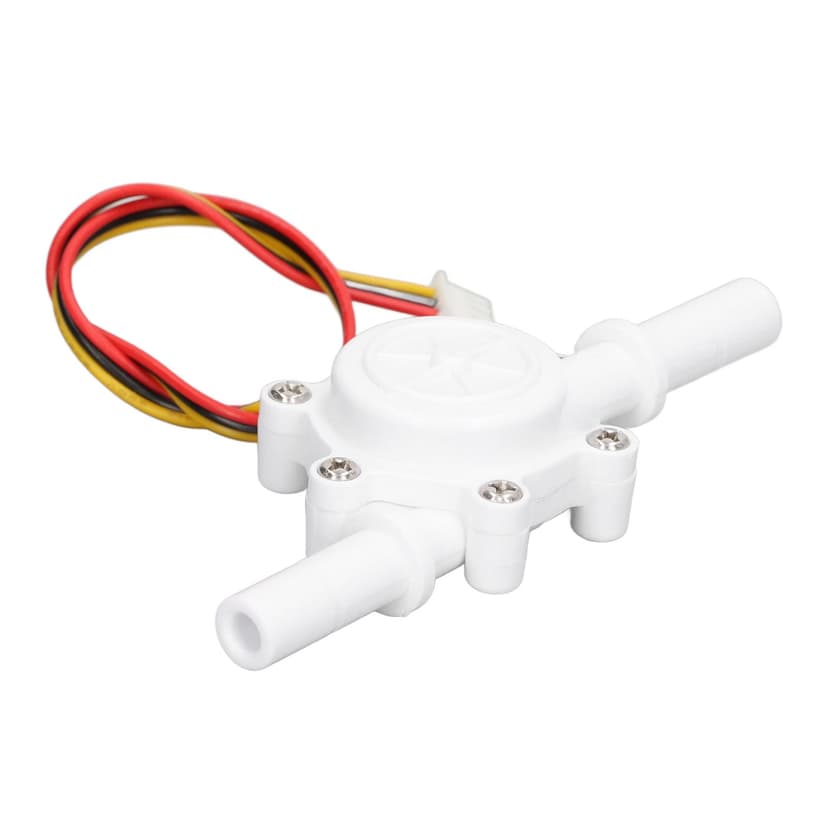

new | Hall Flow Sensor, Hall Water Flow Sensor Hall Flow Sensor Water Switch Flowmeter Fluid Meter DC3 from 5V to 24V 0.3L to10L/min 25cm 180 Degree G3/8 Quick Connect
Brand : Joyzan
new | Hall Flow Sensor, Hall Water Flow Sensor Hall Flow Sensor Water Switch Flowmeter Fluid Meter DC3 from 5V to 24V 0.3L to10L/min 25cm 180 Degree G3/8 Quick Connect
Brand : Joyzan
Product Specifications
Conditionnew
AsinB0BF5TMF26
CategoryIndustrial & Scientific
SubcategoryFlow Sensors
LeafcategoryHOME
MPNJoyzanrmkfwq0ga9
OriginUSA
BrandnameJoyzan
Weight2
Product Details
G3/8 inch Quick Connect: The hall effect flow sensor with easy installation and removal, is suitable for 3/8 tube and works with most reverse osmosis filtration systems
POM Material: The hall flow sensor switch is made of high quality POM material, which has good impact strength, is sturdy and practical, not easy to be damaged, and has a long service life
Water Flow Switch: The hall effect water flow sensor is small in size and easy to install. It can be applied to water heaters. It is very easy to use when used as a flow switch
Three Different Color Wire: The water flow hall sensor has three color wires. Red is positive, black is negative, yellow is pulse signal, different color is clear for you to distinguish, making the work easier and more convenient
Waterproof Design: The liquid flow hall effect sensor adopts a waterproof design to prevent water from entering, and the impeller is embedded with high quality materials, which is practical and not easy to wear
What's Inside The Box ?
inc
Product Ranking
#106 in Flow Sensors
#584043 in Industrial & Scientific
Product Description
Feature:
1. Easy to Install: Hall flow sensor for home is light weight, small size, provide simple installation, easy to carry and use
2. Waterproof and Wear Resistant: Hall component adopts waterproof design to prevent water ingress, good quality material is inlaid inside the impeller, durable and wear resistant
3. Three Wire Connection: Red is positive, black is negative, yellow is pulse signal, different color about the hall flow sensor tool is clear for you to distinguish
4. Water Flow Switch: The water flow sensor effect is applied to the water heater and can be used as a flow switch, useful and practical
5. Impact Strength Pom: This switch flowmeter counter is made of good quality POM material, has good fatigue resistance and impact strength, good creep resistance

Specification:
Item Type: Hall Flow Sensor
Material: POM
Interface Size: G3/8 pipe
Voltage Range: DC3.5-24V
Inner Diameter: 5mm / 0.2in, Outer Diameter: Approx. 9.5mm / 0.37in
Flow Range: 0.3-10L/min
Pulse Frequency: F=(10xQ)±5%
Withstand Voltage: ≤1.75map
Output Pulse High Level: ≥DC4.6V (input voltage DC5V)
Output Pulse Low Level: ≤DC0.5V (input voltage DC5V)
Maximum Operating Current: 15mA (DC5V)
Operating Temperature Range: ≤80℃

Package List:
1 x Hall Flow Sensor
Product Description
Feature:
1. Easy to Install: Hall flow sensor for home is light weight, small size, provide simple installation, easy to carry and use
2. Waterproof and Wear Resistant: Hall component adopts waterproof design to prevent water ingress, good quality material is inlaid inside the impeller, durable and wear resistant
3. Three Wire Connection: Red is positive, black is negative, yellow is pulse signal, different color about the hall flow sensor tool is clear for you to distinguish
4. Water Flow Switch: The water flow sensor effect is applied to the water heater and can be used as a flow switch, useful and practical
5. Impact Strength Pom: This switch flowmeter counter is made of good quality POM material, has good fatigue resistance and impact strength, good creep resistance

Specification:
Item Type: Hall Flow Sensor
Material: POM
Interface Size: G3/8 pipe
Voltage Range: DC3.5-24V
Inner Diameter: 5mm / 0.2in, Outer Diameter: Approx. 9.5mm / 0.37in
Flow Range: 0.3-10L/min
Pulse Frequency: F=(10xQ)±5%
Withstand Voltage: ≤1.75map
Output Pulse High Level: ≥DC4.6V (input voltage DC5V)
Output Pulse Low Level: ≤DC0.5V (input voltage DC5V)
Maximum Operating Current: 15mA (DC5V)
Operating Temperature Range: ≤80℃

Package List:
1 x Hall Flow Sensor
