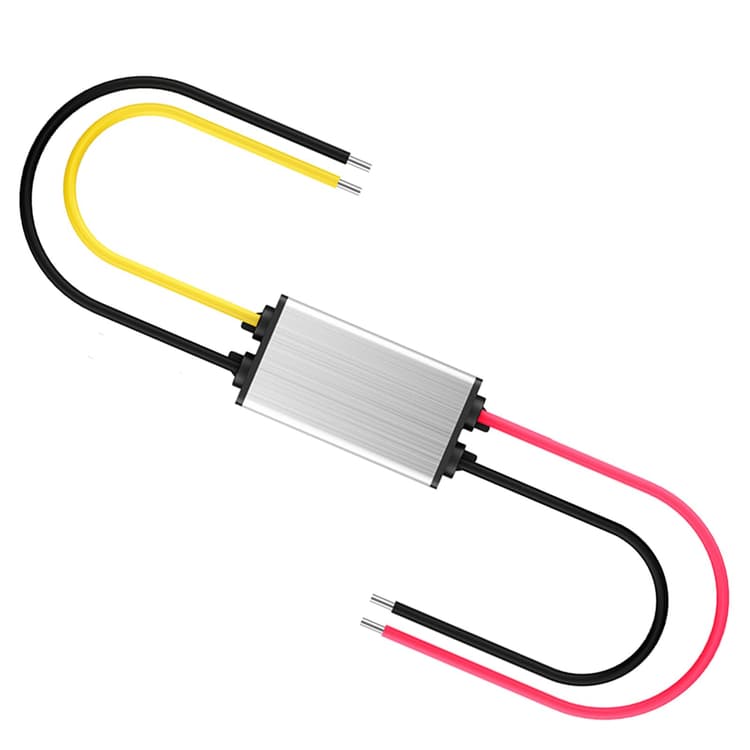

new | DC 36V 48V Step Down to 24V 30A DC Step-Down Voltage Converter Regulator Voltage Reducer Converter Waterproof Large Sized DC/DC Buck Transformer Power Supply
Brand : Cocar
new | DC 36V 48V Step Down to 24V 30A DC Step-Down Voltage Converter Regulator Voltage Reducer Converter Waterproof Large Sized DC/DC Buck Transformer Power Supply
Brand : Cocar
Availability :
Out Of Stock
Click to connect with our customer support
Product Specifications
ConditionNew
AsinB0BCHRLMT1
CategoryElectronics
SubcategoryPower Converters
LeafcategoryPOWER_INVERTER
MPN48T24-30A
OriginUSA
BrandnameCocar
Height1.7322834628
Length3.93700787
Width3.149606296
Weight2
Product Details
[Voltage Transformer] Input voltage range DC 30-60V; output voltage: DC 24V (not adjustable); output current: 30A; output power 720W. Transformers can adjust the effect of voltage and stable 24V voltage, so that you don't have to worry about voltage too high/mismatch and other bad situations.
[48V 36V to 24V] Input voltage: DC 48V/36V, accept(30V-60V) range, Output voltage: DC 24V(non-adjustable); Output current: 30A; Output power 720W, Within the voltage allowable range, it works well as a good step voltage down/voltage transformer
[Voltage Convert] 36 Volt to 24 Volt Converter, Intelligent Protection, With short-circuit, over-current, over-load, low-load, over-temperature intelligent protection function, voltage converters safe and reliable, longer service life
[High Performance] High and stable conversion efficiency - Synchronous rectification technology - Multiple intelligent protection functions. Die-cast aluminum housing, epoxy resin potting, natural air convection cooling. The conversion efficiency is as high as 96%. 100% full rated power and stable output voltage.
[Waterproof] 100% Waterproof , can work in rain, waterproof housing makes the converter ideal for use in a wide range of applications including vehicles, security systems, hospital equipment, telecommunications etc, and Commonly used for LED strip lights, monitoring system, motor, electronic systems and DIY etc.
Product Ranking
#520 in Power Converters
#142082 in Tools & Home Improvement
Product Description
Parameters:
Input range: 30V-60V DC
Output voltage: 24V DC
Output current: 20A
Output Rated Power: 720W
Efficiency: 97% (half load); 95% (full load)
No-load current: <0.1V
Ripple: 200mVp
Line Regulation: ±0.2%
Load Regulation: ±0.2%
Voltage Accuracy: ±1.5%
Enclosures: IP68
Case Operating Temperature: -40~85°C

Fuction:
1.Built in over-load, over-current protection.
2.Built in over-temperature protection.
3.Built in output short-circuit protection.

Converter:
Intelligent Protection, With short-circuit, over-current, over-load, low-load, over-temperature intelligent protection function.
IP68 Protection Level, strong and wear-resistant, 100% waterproof, dustproof, shockproof, good heat dissipation effect.
Adopt synchronous rectifier technology to reduce rectifier loss and improve converter efficiency.
Product Description
Parameters:
Input range: 30V-60V DC
Output voltage: 24V DC
Output current: 20A
Output Rated Power: 720W
Efficiency: 97% (half load); 95% (full load)
No-load current: <0.1V
Ripple: 200mVp
Line Regulation: ±0.2%
Load Regulation: ±0.2%
Voltage Accuracy: ±1.5%
Enclosures: IP68
Case Operating Temperature: -40~85°C

Fuction:
1.Built in over-load, over-current protection.
2.Built in over-temperature protection.
3.Built in output short-circuit protection.

Converter:
Intelligent Protection, With short-circuit, over-current, over-load, low-load, over-temperature intelligent protection function.
IP68 Protection Level, strong and wear-resistant, 100% waterproof, dustproof, shockproof, good heat dissipation effect.
Adopt synchronous rectifier technology to reduce rectifier loss and improve converter efficiency.
