new | SparkFun IoT RedBoard - ESP32 Development Board -ESP32 WROOM MCU Module USB-C Connector Qwiic Connector MicroSD Card -ESP32 Dimensions: 2.3in x 2.7in x 1.08in
Brand : SparkFun
new | SparkFun IoT RedBoard - ESP32 Development Board -ESP32 WROOM MCU Module USB-C Connector Qwiic Connector MicroSD Card -ESP32 Dimensions: 2.3in x 2.7in x 1.08in
Brand : SparkFun

*Prices subject to change due to market. The price shown in the checkout is the guaranteed price.
₹ 7,887.00
M.R.P :₹ 11,041.00

5% OFF

Availability :
In Stock

*Prices subject to change due to market. The price shown in the checkout is the guaranteed price.
₹ 7,887.00
M.R.P : ₹ 11,041.00

5% OFF

Availability :
In Stock
Delivery :
Available This pincode is not serviceable! Please try with a different pincode Checking...
Quantity
7 days Replacement
7 days Replacement
Manufacturers Warranty
Manufacturers Warranty
Top Brand
Top Brand
Free delivery
Free delivery
Secure Transaction
Secure Transaction
Blue Dart Delivered
Blue Dart Delivered
Contact For Bulk Product Enquiry
100% Guarantee Safe Checkout
  • visa
  • mastercard
  • discover
  • Maestrocard
  • paypal
  • americanexpress
  • paytm
  • upi
Note: Please be aware that products from the USA may come with an input voltage of 110V - 120V, requiring the use of an appropriate step-down transformer for compatibility. Understanding the device's wattage is essential for selecting the correct power converter.
Product Specifications
Conditionnew
AsinB0BBXTJ62N
CategoryElectronics
SubcategorySingle Board Computers
LeafcategorySINGLE_BOARD_COMPUTER
MPNWRL-19177
CPU ManufacturerEspressif
CPU Speed240
Processor Count2
OriginUSA
BrandnameSparkFun
Height1.1
Length2.3
Width2.7
Weight1
Operating SystemfreeRTOS with LwIP
Total USB Ports1
Warranty Description30 Days
RAM Memory Installed Size520 KB
RAM Memory TechnologySRAM
Product Details

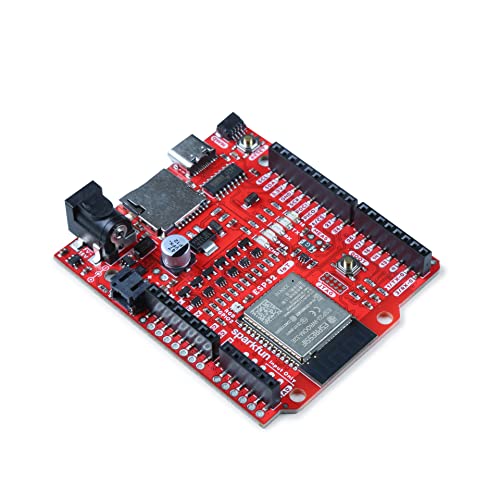

The IoT RedBoard is an ESP32 WROOM-equipped development board that has everything you need in an Uno with extra perks like USB-C, Qwiic, and more.
IoT RedBoard Features: CPU and On­Chip Memory. ESP32-D0WD-V3 embedded, Xtensa dual-core 32-bit LX6 microprocessor, up to 240MHz. 448KB ROM. 520KB SRAM. 16KB SRAM in RTC
Also Features: Wi­Fi, 802.11b/g/n. Bit rate: 802.11n up to 150Mbps. A-MPDU and A-MSDU aggregation. 0.4µs guard interval support. Center frequency range of operating channel: 2412 ~ 2484MHz.
We've included 3.3V voltage translation and a Qwiic connector to the edge of the board to allow for quick and seamless connection to our ever-growing line of I2C based Qwiic products. The board even includes a microSD socket if your application requires you to log and save data to a memory card.
The IoT RedBoard can target a wide variety of applications, ranging from low-power sensor networks to the most demanding tasks, such as voice encoding, music streaming, and MP3 decoding.
What's Inside The Box ?
Qwiic
Product Ranking
#3400 in Single Board Computers (Computers & Accessories)
Product Description
The SparkFun IoT RedBoard is an ESP32 Development Board that includes everything but the kitchen sink! Espressif's ESP32 WROOM is a powerful WiFi and Bluetooth MCU module that targets a wide variety of applications. At the core of this module is the ESP32-D0WDQ6 chip which is designed to be both scalable and adaptive. The IoT RedBoard can target a wide variety of applications, ranging from low-power sensor networks to the most demanding tasks, such as voice encoding, music streaming, and MP3 decoding. The IoT ReadBoard also utilizes our handy Qwiic Connect System which means no soldering or shields are required to connect it to the rest of your system!
The USB-to-serial is achieved with a USB-C connector with through hole anchoring and the ubiquitous CH340G requiring fewer driver installs. We've included 3.3V voltage translation and a Qwiic connector to the edge of the board to allow for quick and seamless connection to our ever-growing line of I2C based Qwiic products. The board even includes a microSD socket if your application requires you to log and save data to a memory card.The operating system is freeRTOS with LwIP; TLS 1.2 with hardware acceleration is built in as well. Secure (encrypted) over the air (OTA) upgrade is also supported, so that users can upgrade their products even after their release, at minimum cost and effort.
At the core of the module is the ESP32-D0WD-V3 chip. The embedded chip is designed to be scalable and adaptive. There are two CPU cores that can be individually controlled, and the CPU clock frequency is adjustable from 80 MHz to 240 MHz. The chip also has a low-power coprocessor that can be used instead of the CPU to save power while performing tasks that do not require much computing power, such as monitoring of peripherals. ESP32 integrates a rich set of peripherals, including capacitive touch sensors, Hall sensors, SD card interface, Ethernet, high-speed SPI, UART, I2S and I2C.
Product Description
The SparkFun IoT RedBoard is an ESP32 Development Board that includes everything but the kitchen sink! Espressif's ESP32 WROOM is a powerful WiFi and Bluetooth MCU module that targets a wide variety of applications. At the core of this module is the ESP32-D0WDQ6 chip which is designed to be both scalable and adaptive. The IoT RedBoard can target a wide variety of applications, ranging from low-power sensor networks to the most demanding tasks, such as voice encoding, music streaming, and MP3 decoding. The IoT ReadBoard also utilizes our handy Qwiic Connect System which means no soldering or shields are required to connect it to the rest of your system!
The USB-to-serial is achieved with a USB-C connector with through hole anchoring and the ubiquitous CH340G requiring fewer driver installs. We've included 3.3V voltage translation and a Qwiic connector to the edge of the board to allow for quick and seamless connection to our ever-growing line of I2C based Qwiic products. The board even includes a microSD socket if your application requires you to log and save data to a memory card.The operating system is freeRTOS with LwIP; TLS 1.2 with hardware acceleration is built in as well. Secure (encrypted) over the air (OTA) upgrade is also supported, so that users can upgrade their products even after their release, at minimum cost and effort.
At the core of the module is the ESP32-D0WD-V3 chip. The embedded chip is designed to be scalable and adaptive. There are two CPU cores that can be individually controlled, and the CPU clock frequency is adjustable from 80 MHz to 240 MHz. The chip also has a low-power coprocessor that can be used instead of the CPU to save power while performing tasks that do not require much computing power, such as monitoring of peripherals. ESP32 integrates a rich set of peripherals, including capacitive touch sensors, Hall sensors, SD card interface, Ethernet, high-speed SPI, UART, I2S and I2C.
