Collet Range - 1/8, 3/16, 1/4, 5/16, 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4-inch
Product Parameter - ER32 clamping range :1-20mm, Spindle Drawbar thread: 7/16. Accuracy: 0.0005-inch
1
2
3
4
5
6
Product From USA
| Condition | new |
|---|---|
| Asin | B0B3DQKVC5 |
| Category | Tools & Home Improvement |
| Subcategory | Collets |
| Leafcategory | TOOL_CHUCK |
| MPN | KM-1239921-859170-LR |
| Origin | USA |
| Brandname | kimllier |
| Weight | 8 |
ER32 R8 Collet Chuck Holder Set with 11Pcs ER32 3-19MM Collet Set and Wrench Fit for CNC Engraving Machine and Milling Lathe Tool (ER32-R8)
Specifications:
Model: R8-ER32 Collet Chuck, R8 spindle
Drawbar thread: 7/16
ER32 clamping range: 1-20mm
Wrench ER32
Compatibility: R8 dedicated machine
ER32 Spring Collet Set
Material: high grade spring steel
Type: ER32
Length: 39mm
Diameter: 32mm
Collet Range: 1/8, 3/16, 1/4, 5/16, 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4 inch
Inner diameter: 3mm(1/8 ), 5mm(3/16), 6mm(1/4), 8mm(5/16), 10mm(3/8), 11mm(7/16), 13mm(1/2), 14mm(9/14), 16mm(5/8), 18mm(11/14), 19mm(3/4)
Advantage:
Ease of operation and high quality work results
Performance stability, high accuracy, great processing and fine making compatible with durability and toughness
The new accuracy collet chuck holder for professionals and hobbyists demanding milling and drilling applications

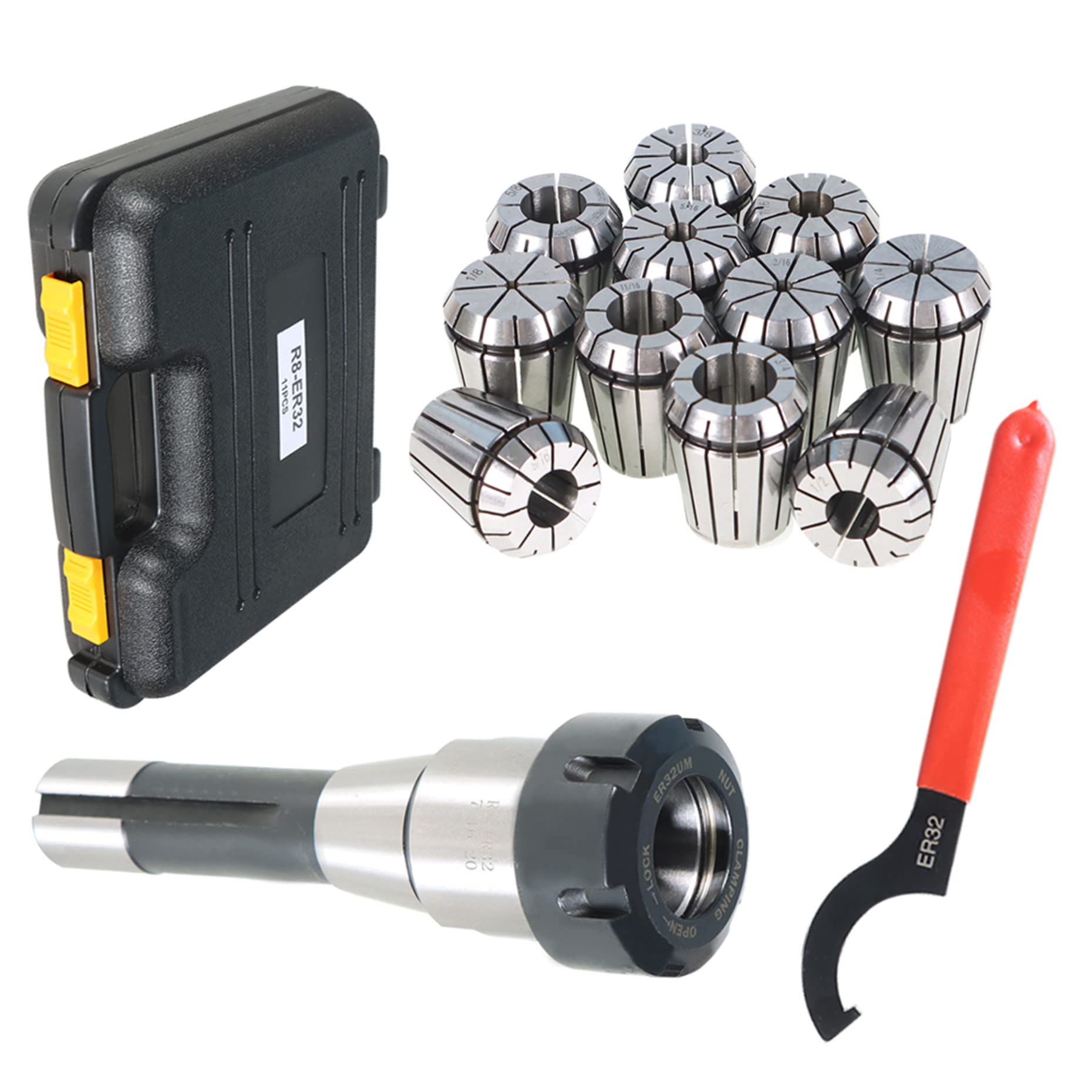

MT3 13 piece R8 spring collet chuck set includes the following contents:
1 x ER-32 R8 Collet Chuck
1 x Wrench
11 x R8 Collet Set
ER32 R8 Collet Chuck Holder Set with 11Pcs ER32 3-19MM Collet Set and Wrench Fit for CNC Engraving Machine and Milling Lathe Tool (ER32-R8)
Specifications:
Model: R8-ER32 Collet Chuck, R8 spindle
Drawbar thread: 7/16
ER32 clamping range: 1-20mm
Wrench ER32
Compatibility: R8 dedicated machine
ER32 Spring Collet Set
Material: high grade spring steel
Type: ER32
Length: 39mm
Diameter: 32mm
Collet Range: 1/8, 3/16, 1/4, 5/16, 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4 inch
Inner diameter: 3mm(1/8 ), 5mm(3/16), 6mm(1/4), 8mm(5/16), 10mm(3/8), 11mm(7/16), 13mm(1/2), 14mm(9/14), 16mm(5/8), 18mm(11/14), 19mm(3/4)
Advantage:
Ease of operation and high quality work results
Performance stability, high accuracy, great processing and fine making compatible with durability and toughness
The new accuracy collet chuck holder for professionals and hobbyists demanding milling and drilling applications
MT3 13 piece R8 spring collet chuck set includes the following contents:
1 x ER-32 R8 Collet Chuck
1 x Wrench
11 x R8 Collet Set
