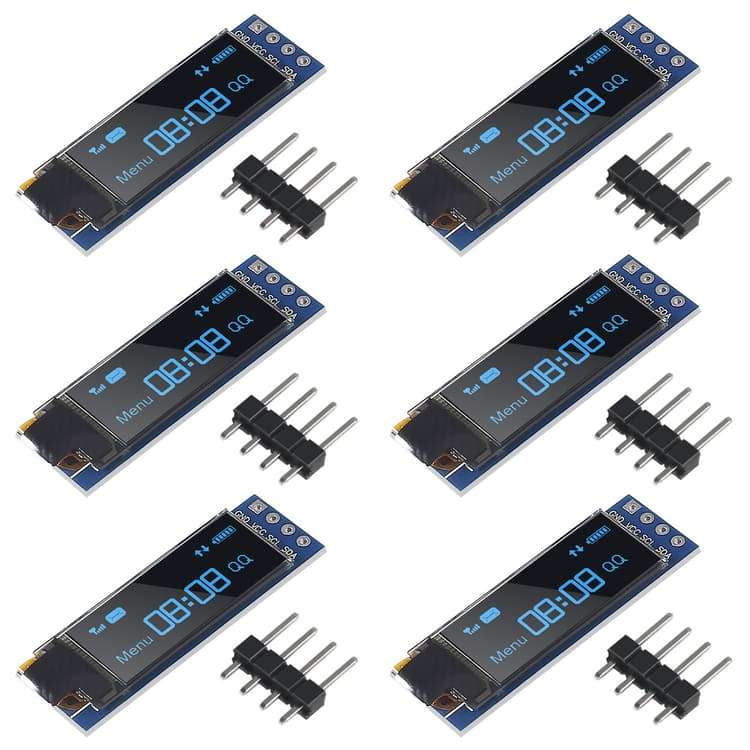

new | 6pcs 0.91 Inch I2C OLED Display Module IIC OLED Screen DC 3.3V~5V I2C Display Module for Raspberry pi
Brand : Coliao
new | 6pcs 0.91 Inch I2C OLED Display Module IIC OLED Screen DC 3.3V~5V I2C Display Module for Raspberry pi
Brand : Coliao
Availability :
Out Of Stock
Click to connect with our customer support
Product Specifications
Conditionnew
AsinB09YYC6K7C
MPNColiao-I2C OLED Display Module
ColorBlue Display
OriginUSA
BrandnameColiao
Weight1
Product Details
0.91 Inch I2C OLED Display: Resolution is 128*32, no need backlight, self-illumination. These I2C OLED display module comes with pin headers, you don't need buy it separately.
The main chip is SSD1306; supports DC 3.3V to 5.0V supply. Working Temperature: -30 degrees ~ 70 degrees.
Power-saving Display: The I2C OLED display performs better than the traditional LCD display and with lower consumption the IIC (I2C communications) simplifies connections.
With chip select CS signal, you can achieve multiple IIC device on the same bus work,compatible with 3.3V and 5V control chip I / O level.
Well Compatibility: This I2C OLED display module can be used for ESP8266, ESP32,etc.
Product Ranking
#7262 in Single Board Computers (Computers & Accessories)
Product Description
I2C display module 0.91 inch I2C OLED display module I2C OLED screen driver dc 3.3V - 5V

These I2C OLED display module comes with pin headers, you don't need buy it separately.
It can be used for PIC/AVR/ESP32/ESP8266/ARM and etc.
The I2C OLED display performs better than the traditional LCD display and with lower consumption the IIC (I2C communications) simplifies connections.

Note:
Do not reverse VCC and GND. This will cause damage to the OLED display.

Pin Description:
GND: Power Ground
VCC: Power + (DC 3.3 ~5v)
SCL: Clock Line
SDA: Data Line

Specification:
Model: SH-S091
Screen size: 0.91 inch
Interface: IIC
The main chip is: SSD1306
Operating voltage: supports DC 3.3V~5.0V power supply.
Working Temperature: -30 degrees ~ 70 degrees
Display area: 22.384 x 5.584 (mm)
Interface Type: IIC Interface
Number of Pins: 4Pin
Material:PCB
Size:38x12mm

Package Including:
6 * 0.91 Inch I2C SSD1306 OLED Display Module
