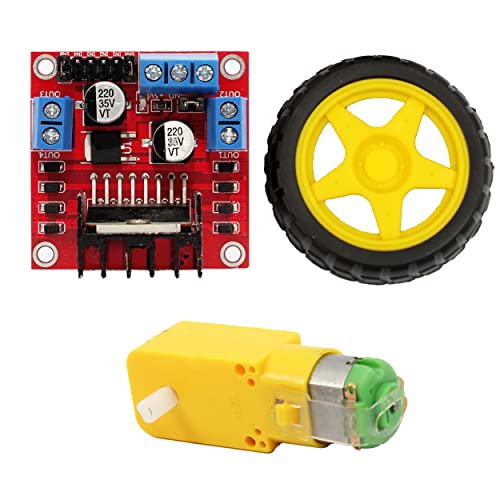

Robotbanao L298N Motor Driver Controller Module is a high power motor driver for driving DC and Stepper motors. It can control upto 4 DC motors, or 2 DC motors with directional and speed control. This motor driver is for robotics and mechatronics projects. The 150 RPM Dual Shaft BO Motor is a straight motor which gives good torque and RPM at lower operating voltages. It is a geared DC Motor. It is an alternative to metal gear DC motors. The 65MM Wheel is made up of standard grade rubber.
L298N: Current Sense for each motor
Heatsink for better performance
Power-On LED indicator
Directional control
Speed control
High power motor
BO motor: Low density and inertia
Capability to absorb shock and vibration as a result of elastic compliance
Ability to operate with minimum or no lubrication
Relatively low coefficient of friction
Wheel: Car hub is reinforced nylon
Sturdy
Tire with sponge liner for more strength
With upgraded tire tread for greater friction
Dimensions: L298N(LxWxH):44x44x28mm
Shaft length:7mm
Shaft Diameter:5.5mm
Motor(LxWxH):55x48x23mm
Diameter of wheel:65mm
Center Shaft Hole Diameter (mm):5.4 (Round edge) and 3.5 (Flat edge)
The L298N motor driver is perfect for robotics and mechatronics projects. It can also be used for controlling motors from microcontrollers, switches, relays, etc. It is capable of driving DC and Stepper motors for micro mouse, line following robots, robot arms, etc. The BO motor is ideal for DIY enthusiasts. This motor set is inexpensive, small, easy to install and ideally suited for use in a mobile robot car. The 65mm wheel is only compatible with BO motor.
L298N: Input Voltage:3.2V-40V DC
L298N Dual H-Bridge DC Motor Driver
Operating voltage:DC 5V-35V
Peak Current:2Amps
Speed Control:PWM
Control Signal input voltage range:0.3V≤Vin≤1.5V (Low), 2.3≤Vin≤Vss (High)
Max. power consumption:20W (when the temperature T=75℃)
BO Motor: Operating Voltage:3 to 12V
Current (without loading):40-180mA
RPM:100
Output Torque:0.8 kgcm
Motor Design: L-shaped
Wheel: Loading Capacity (kg):2.5
D hole For BO Motor (mm):6
