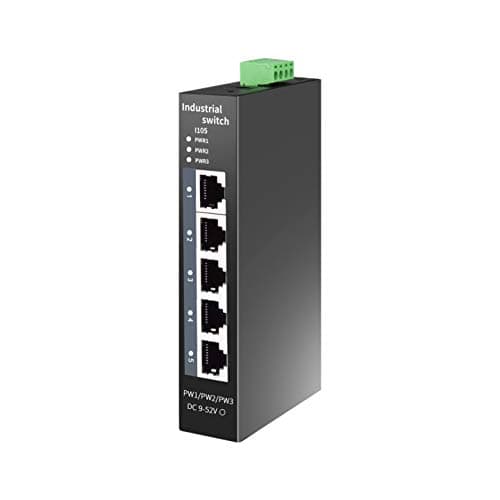

new | 5-Port Hardened Industrial DIN-Rail Switch Network Switch (-40 to 70 ºC),5 x 100Mbps Ports,1Gbps Switching Capacity,DIN-Rail Included, Lifetime Protection
SKU : 00301BAUXXB08TBXGN7J
Brand : STEAMEMO
new | 5-Port Hardened Industrial DIN-Rail Switch Network Switch (-40 to 70 ºC),5 x 100Mbps Ports,1Gbps Switching Capacity,DIN-Rail Included, Lifetime Protection
SKU : 00301BAUXXB08TBXGN7J
Brand : STEAMEMO
Product Specifications
Conditionnew
AsinB08TBXGN7J
CategoryElectronics
SubcategorySwitches
LeafcategoryPersonal Computer
MPNI105
ColorBlack
OriginUSA
BrandnameSTEAMEMO
Height1
Length1
Width1
Weight1
Product Details
Follow IEEE802.3 Ethernet and IEEE802.3u Fast Ethernet protocol standards
Three redundant power inputs, more power supply guarantee, each channel supports anti-reverse connection.
DIN rail installation, electric control box and weak current box supporting DIN rail seat, direct buckle installation
All ports support full duplex/half duplex working mode
Automatic MDI/MDI-X line sequence cross
Automatic address learning and aging
Storage/conversion and frame filtering Power Indicator
Full-duplex IEEE802.3 flow control, half-duplex Backpressure operation
1522 byte maximum packet length
Industrial grade iron shell design, better heat dissipation performance, safety and stability
What's Inside The Box ?
DIN-Rail
Product Ranking
#715 in Computer Networking Switches
Product Description

This industrial switch designed by our company for reliable and stable operation in harsh in dustrial environments. It provides 3 sets of redundant power input ports (support voltage range: 9-52VDC) and can be connected to three DC power sources at the same time (All support reverse connection), the working temperature is -40-75 degrees Celsius, the metal shell protection grade is IP30, it is strong and durable in the difficult industrial environment, and it supports DIN rail installation, safe and reliable.It is widely used in many fields such as industrial intelligence, urban intelligent transportation and the Internet of Things.

Product Description

This industrial switch designed by our company for reliable and stable operation in harsh in dustrial environments. It provides 3 sets of redundant power input ports (support voltage range: 9-52VDC) and can be connected to three DC power sources at the same time (All support reverse connection), the working temperature is -40-75 degrees Celsius, the metal shell protection grade is IP30, it is strong and durable in the difficult industrial environment, and it supports DIN rail installation, safe and reliable.It is widely used in many fields such as industrial intelligence, urban intelligent transportation and the Internet of Things.
