flagProduct From USA

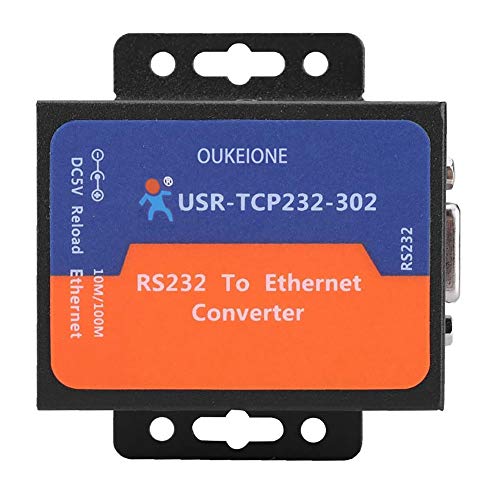

new | FRRMNHT Tiny RS232 to Ethernet Converter Module Serial TCP IP LAN Network Server Device Supports TCP UDP Client DHCP/DNS USR-TCP232-302 with US Adapter
Brand : FRRMNHT
new | FRRMNHT Tiny RS232 to Ethernet Converter Module Serial TCP IP LAN Network Server Device Supports TCP UDP Client DHCP/DNS USR-TCP232-302 with US Adapter
Brand : FRRMNHT
Availability :
Out Of Stock
Click to connect with our customer support
Product Specifications
Conditionnew
AsinB08SJSLLSJ
CategoryElectronics
SubcategoryDevice Servers
LeafcategoryELECTRONIC_ADAPTER
Connector TypeRJ45
OriginUSA
BrandnameFRRMNHT
Weight1
Product Details
This product do not include user manual, if you need, we will send the pdf file to you
1 port RS232 to Ethernet converters USR-TCP232-302 can transmit data transparently between TCP/IP and RS232. RS232 to IP Converters USR-TCP232-302 are widespread required in industrial automation. Simple configuration and easy to use.
USR-TCP232-302 is internally integrated with TCP/IP protocol. User can apply it to device networking communication. Support virtual serial port and provide corresponding software USR-VCOM
Support DHCP/DNS/HTTPD Client, CE/FCC/RoHs Certificate
Package Content: 1 x RS232 to RJ45 Ethernet Converter, 1 x 5V 1A Power Supply.
Product Description
Introduction 1 port RS232 to Ethernet converters USR-TCP232-302 can transmit data transparently between TCP/IP and RS232. RS232 to IP Converters USR-TCP232-302 are widespread required in industrial automation. Simple configuration and easy to use. Features Support DHCP, automatically obtain an IP address and query IP address through serial setting protocol Support DNS function Set parameters through webpage Upgrade firmware via network Auto-MDI/MDIX, RJ45 port with 10/100Mbps Serial port baud rate from 600 bps to 230.4 Kbps, Check bit of None, Odd, Even, Mark and Space Work mode: TCP Server, TCP Client, UDP Client, UDP Server, HTTPD Client Support virtual serial port and provide corresponding software USR-VCOM Heartbeat package mechanism to ensure connection is reliable, put an end to dead link User-defined registration package mechanism, check connection status and use as custom packet header Under TCP Server mode, Client number ranges from 1 to 16; default number is 4 The global unique MAC address bought from IEEE, user can define MAC address Restore factory default Across the gateway, switches, routers Can work in LAN, also can work in the Internet (external network) Provide PC TCP/IP socket programming example such as VB,C++,Delphi,Android and IOS Support customization Parameter Voltage: DC 4.75 ~ 7V Current : 150mA Size: 71 x 60 x 25 mm Operating Temp: -25 ~ 75 Degree C Storage Temp: -40 ~ 105 Degree C, 5 ~ 95 Percent RH Interface: RS232 Network Protocol: IP, TCP, UDP, DHCP, DNS, HTTP, ARP, ICMP Application Field of RS232 Ethernet Server Industrial data transmission, industrial automation security and protection monitoring, public security Smart home, power control, environmental monitoring, intelligent agriculture Door check on work attendance system, POS system, rice selling system Building automation system
