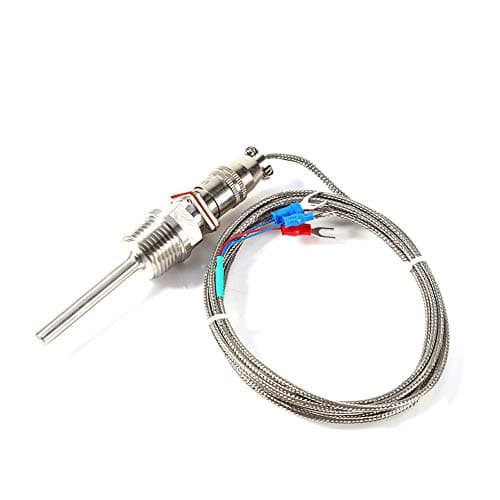

new | RTD PT100 Waterproof Temperature Sensor Stainless Steel Probe Temperature Transmitter 1/2" NPT Threads with 2 Meter Cable for PID Temperature Controller
Brand : Oumefar
new | RTD PT100 Waterproof Temperature Sensor Stainless Steel Probe Temperature Transmitter 1/2" NPT Threads with 2 Meter Cable for PID Temperature Controller
Brand : Oumefar
Availability :
Out Of Stock
Click to connect with our customer support
Product Specifications
Conditionnew
AsinB08RBWQ9QZ
CategoryIndustrial & Scientific
SubcategoryTemperature Probes & Sensors
LeafcategoryBISS Basic
MPNOumefar027rou4f1n
OriginUSA
BrandnameOumefar
Height3.94
Length3.94
Width3.94
Weight1
Product Details
STAINLESS STEEL INNER THREAD BASE - Temperature Monitoring is equipped with stainless steel inner thread base. Waterproof and oil-proof wire, anti-corrosion.
HIGH TEMPERATURE RESISTANCE - The Working Temperature is -50 to 300 ℃. High precision resistance chip. High temperature resistance.
STABLE PERFORAMANCE - This Pt100 temperature sensor, using thin film resistor, has stable performance and high precision.
PRODUCT PARAMETERS - Probe Length: 50mm (2") . Diameter: 6mm (0.23"). Thread Size: 1/2 "NPT.
IMPORTANT TIPS - 1/2" NPT here indicates the national pipe thread standard(US), please check first and make sure this is the size you need.
Product Description
Description:

This Pt100 temperature sensor, using thin film resistor, has stable performance and high precision.


Features:

1, Stainless steel inner thread base.

2, High precision resistance chip.

3, High temperature resistance.

4, Waterproof and oil-proof wire, anti-.



Specifications:

Type: RTD PT100 (membrane) A class
Working Temperature: -50 to 300 ?
Probe Length: 50mm (2")
Diameter: 6mm (0.23")

Thread Size: 1/2 "NPT


Nominal Outside Diameter: 0.84"


Probe Material: Stainless steel
Wire: Tin plated copper wire

Wire Length: 2m (6.6')

Weight: 100 g(approx.)


Package includes:
1x Temperature Sensor


Note:1/2" NPT here indicates the national pipe thread standard(US), please check first and make sure this is the size you need.

Product Description
Description:

This Pt100 temperature sensor, using thin film resistor, has stable performance and high precision.


Features:

1, Stainless steel inner thread base.

2, High precision resistance chip.

3, High temperature resistance.

4, Waterproof and oil-proof wire, anti-.



Specifications:

Type: RTD PT100 (membrane) A class
Working Temperature: -50 to 300 ?
Probe Length: 50mm (2")
Diameter: 6mm (0.23")

Thread Size: 1/2 "NPT


Nominal Outside Diameter: 0.84"


Probe Material: Stainless steel
Wire: Tin plated copper wire

Wire Length: 2m (6.6')

Weight: 100 g(approx.)


Package includes:
1x Temperature Sensor


Note:1/2" NPT here indicates the national pipe thread standard(US), please check first and make sure this is the size you need.
