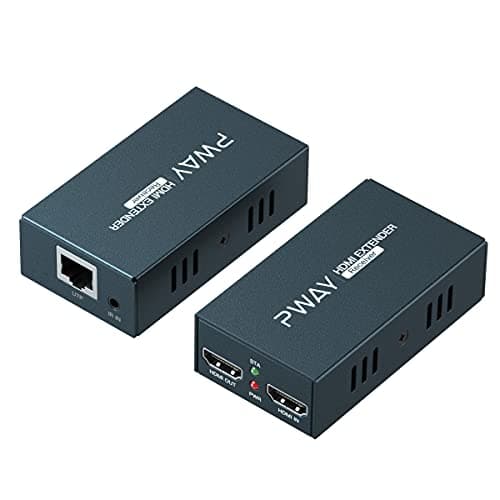

HDMI Audio Video Extender (with IR and Loopout)

Examples of use:

1. HDMI Extender is used for your monitoring system. Camera---HDMI Transmitter---Ethernet Cable---HDMI Receiver---Monitor.

2. HDMI Extender is used for your home audio and video. TV Box---HDMI Transmitter---Ethernet Cable---HDMI Receiver---TV.

3. HDMI Extender is used for your exhibition hall projection. Computer---HDMI Transmitter---Ethernet Cable---HDMI Receiver---Projector.

Specifications:

1.Video

HDMI cable---recommended to be less than 15ft

Standards-----HDMI 1.3 (At 1080P)

Max resolution -----1920X1080@60Hz, 3D

2.Ethernet Cable

Interface ----- RJ45

Transmission distance ----- CAT6---50m/164ft; CAT5E---40m/130ft; CAT5-30m/100ft

3.IR

Interface ----- 3.5mm

IR frequency ----- 20~60KHz

4.Others

Power adapter----- Input: 110~220V; Output: 12V/1A

Power dissipation-----MAX 3W

Dimension-----81*43*23mm

5. Packing list

HDMI transmitter ----- 1 pcs

HDMI receiver ----- 1 pcs

Power adapter ----- 1 pcs

IR TX Cable ----- 1 pcs

IR RX Cable ----- 1 pcs

User manual ----- 1 pcs
