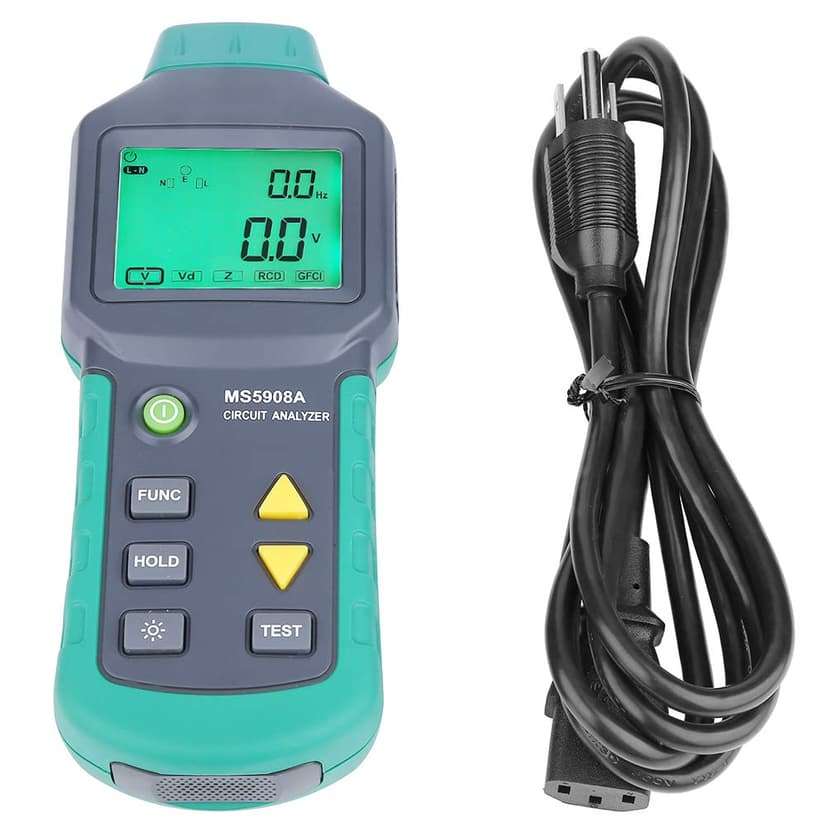

new | LCD Circuit Analyzer, AC100-240V RMS Circuit Analyzer Tester MS5908A/MS5908C LCD Circuit Analyzer, Voltage GFCI RCD Fault Tester (MS5908A US PLUG)
Brand : Jeanoko
new | LCD Circuit Analyzer, AC100-240V RMS Circuit Analyzer Tester MS5908A/MS5908C LCD Circuit Analyzer, Voltage GFCI RCD Fault Tester (MS5908A US PLUG)
Brand : Jeanoko
₹ 20,391.00 M.R.P :₹ 33,985.00
40% OFF
₹ 20,391.00
M.R.P :₹ 33,985.00
40% OFF
✔ In Stock
*Prices subject to change due to market. The price shown in the checkout is the guaranteed price. ₹ 20,391.00 M.R.P : ₹ 33,985.00
40% OFF
₹ 20,391.00
M.R.P : ₹ 33,985.00
40% OFF
✔ In Stock
Check Delivery Availability
Available Checking...
Quantity:
1
7 days Replacement
Secure Transaction
Free delivery
Manufacturers Warranty
Top Brand
Blue Dart Delivered
Contact For Bulk Product Enquiry
100% Secure Payments
Safe and Trusted Checkout
Note: Please be aware that products from the USA may come with an input voltage of 110V - 120V, requiring the use of an appropriate step-down transformer for compatibility. Understanding the device's wattage is essential for selecting the correct power converter.
Product Specifications
Condition
New
Asin
B08PZ9RB33
Category
Tools & Home Improvement
Subcategory
Circuit Testers
Leafcategory
BISS Basic
MPN
Jeanokon4dtg52oxe-01
Color
Green
Origin
USA
Brandname
Jeanoko
Height
1.38
Length
7.68
Width
3.15
Weight
2
Product Details
Multifunctional: This voltage circuit analyzer offers various features such as backlighting and data retention functions. These functions make it easy to read and operate, even in low light conditions, and allow for convenient data storage.
Widely Used: The LCD Circuit Analyzer is versatile and can be used for TRMS measurement of AC voltage. It is also capable of testing the reliability and response time of residual current devices (RCDs) and the reliability of Ground Fault Circuit Interrupter (GFCI) action. This makes it suitable for a wide range of electrical testing and troubleshooting applications.
Manual Load: The analyzer comes with manual load options for different current levels. This allows for measuring wire drop at 12A, 15A, and 20A (MS5908A model), or at 5A, 8A, and 10A (other models). This feature enables accurate measurements and assessment of wire performance under different load conditions.
Measurement Range: This circuit analyzer is capable of measuring various parameters including phase voltage, neutral line voltage, ground voltage, peak voltage, frequency, and impedance of phase, neutral, and ground wire conductors. This comprehensive measurement range allows for thorough analysis and evaluation of electrical circuits.
Connection Mode: The analyzer can identify the 3-wire socket connection mode, determining if the left side is neutral, the right side is live, and whether there is a grounding wire. This feature helps in verifying proper wiring connections and ensuring electrical safety.
Product Ranking
#674 in Circuit Testers
#706249 in Tools & Home Improvement
Product Description
Features:
TRMS measuring AC Voltage Artificial load 12A,15A, 20A measuring wire drop(MS5908A)/Artificial load 5A,8A,10A measuring wire drop(MS5908C) Measuring phase voltage, neutral wire, voltage to earth, peak voltage, frequency Measuring phase(live wire), neutral wire, earth wire conductor impedance Identifying 3-wire socket connection mode(neutral for left and live for right,having earth wire or not) Test the reliability of current device(RCD) and response action time Test the reliability of GFCI action and response action time Backlight function and data hold function Specification:Type(Optional): MS5908A(110V, US plug), MS5908C(220V, EU plug)
Wire Voltage: 85.0~265.0V: 0.1V ±(1.0%+0.2V)
Peak voltage: 121.0~374.0: 0.1V ±(1.0%+0.2V)Frequency: 45.0~65.0Hz: 0.1Hz ±(1.0%+0.2Hz)
Voltage Drop: 0.1%~99.9%: 0.1% ±(2.5%+0.2%)
Voltage Loaded: 10.0~265.0V: 0.1V ±(2.5%+0.2V)
Voltage to earth of neutral wire:0.0!10.0V: 0.1V ±(2.5%+0.2%)
Impedance for live wire, neutral wire and earth wire: 0.00~3.00Ω: 0.01Ω ±(2.5%+0.02Ω)
RCD Triggering Time: 1ms~6.500s: 1ms ±(1.0%+2ms)
RCD Triggering Current: 30mA~37mA: 0.1mA ±(1.0%+0.2mA)
GFCI Triggering timer: 1ms~6.500s: 1ms ±(1.0%+2ms)
GFCI Triggering Current: 6mA~9mA: 0.1mA ±(1.0%+0.2mA)
Power Supply: 1.5AAA * 6 (not included)
Color: green
Size: 19.5*7.5*3.3cm/7.7*3*1.3in
Weight: Approx.642g~655g/22.6oz~23.1oz
Package List:
1 * MS5908A/ MS5908C TRMS AC Voltag Circuit Analyzer
1 * Power Cable
1 * English Manual
1 * Carrying Box
Note: Please kindly make a note if you need any plug adapter.
Product Description
Features:
TRMS measuring AC Voltage Artificial load 12A,15A, 20A measuring wire drop(MS5908A)/Artificial load 5A,8A,10A measuring wire drop(MS5908C) Measuring phase voltage, neutral wire, voltage to earth, peak voltage, frequency Measuring phase(live wire), neutral wire, earth wire conductor impedance Identifying 3-wire socket connection mode(neutral for left and live for right,having earth wire or not) Test the reliability of current device(RCD) and response action time Test the reliability of GFCI action and response action time Backlight function and data hold function Specification:Type(Optional): MS5908A(110V, US plug), MS5908C(220V, EU plug)
Wire Voltage: 85.0~265.0V: 0.1V ±(1.0%+0.2V)
Peak voltage: 121.0~374.0: 0.1V ±(1.0%+0.2V)Frequency: 45.0~65.0Hz: 0.1Hz ±(1.0%+0.2Hz)
Voltage Drop: 0.1%~99.9%: 0.1% ±(2.5%+0.2%)
Voltage Loaded: 10.0~265.0V: 0.1V ±(2.5%+0.2V)
Voltage to earth of neutral wire:0.0!10.0V: 0.1V ±(2.5%+0.2%)
Impedance for live wire, neutral wire and earth wire: 0.00~3.00Ω: 0.01Ω ±(2.5%+0.02Ω)
RCD Triggering Time: 1ms~6.500s: 1ms ±(1.0%+2ms)
RCD Triggering Current: 30mA~37mA: 0.1mA ±(1.0%+0.2mA)
GFCI Triggering timer: 1ms~6.500s: 1ms ±(1.0%+2ms)
GFCI Triggering Current: 6mA~9mA: 0.1mA ±(1.0%+0.2mA)
Power Supply: 1.5AAA * 6 (not included)
Color: green
Size: 19.5*7.5*3.3cm/7.7*3*1.3in
Weight: Approx.642g~655g/22.6oz~23.1oz
Package List:
1 * MS5908A/ MS5908C TRMS AC Voltag Circuit Analyzer
1 * Power Cable
1 * English Manual
1 * Carrying Box
Note: Please kindly make a note if you need any plug adapter.
