Feature:

Spec:

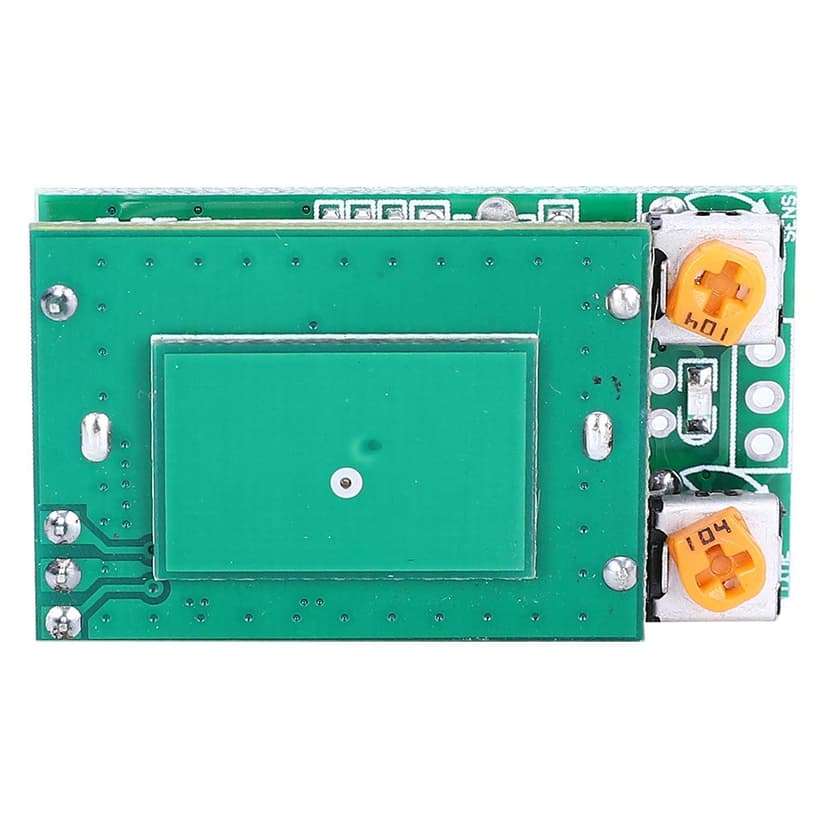

Item Type: Microwave Radar Sensor Switch Module

Model: HFS-DC06
Frequency: 5.8G
Band: ISM band
Size: Approx. 39 x 22 x 11mm / 1.5 x 0.9 x 0.4in
Input Voltage: DC5V
Minimum Input Current: 30mA
Output Mode: 5V level (output high level when triggered)
Wiring Method: VCC is connected to the positive pole of the power supply, GND is connected to the negative pole of the power supply
GND and OUT connected to level output
Installation Height: 2-6 meters
Induction Distance: 12 meters directly in front
Induction Angle: Conical 360 degrees in front
Induction Time: For the convenience of testing, the induction delay time is set at 2S
Product Features: 5.8G frequency, normal installation and use do not interfere with each other, high stability, strong anti-interference ability, small size, suitable for various products that require DC microwave modules

Package List:

Note:

1. The power supply current must be greater than 30mA to drive the module, and the voltage must be stable without large fluctuations, otherwise it will cause continuous triggering (the load light may be continuously triggered by itself or not extinguished)

2. The product should not be installed next to a large-area metal
