new LWS Dual M.2 PCIE Adapter for sata, Desktop pci-e to m. 2 Key B NGFF and m. 2 Key M NGFF Adapter Extension Card, Support M.2 Card Size: 2230,2242,2260,2280;

02501BAUXXB08LVKZMHT

Product From USA

new | LWS Dual M.2 PCIE Adapter for sata, Desktop pci-e to m. 2 Key B NGFF and m. 2 Key M NGFF Adapter Extension Card, Support M.2 Card Size: 2230,2242,2260,2280;

02501BAUXXB08LVKZMHT

LWS

Free Delivery

7 days Replacement

Manufacturers Warranty

Top Brand

Blue Dart Delivered

Secure Transaction

Allows users to use the standard SATA-IO's M.2 SATA SSD to transfer to a desktop computer as a SATA hard disk;PCIE power supply, support system startup and boot function;

Support high speed SATA3.0/6GBps high speed and large capacity storage interface;The speed is determined by the HOST terminal of the computer motherboard, and the transfer card does not affect the PERFORMANCE of NGFF SSD;M.2(NGFF) card that supports PCIE signal;

Applicable interface :PCI-E 4X PCI-E 8X PCI-E16X,Provide 2 M.2 slots,M.2 M NGFF interface, M.2 B NGFF interface,Support M.2 card size: 2230,2242,2260,2280;

M.2 specification revision 0.9 version,Easy to install and does not require any driver software programs;

Can support SATA signal and PCI-E signal NGFF work simultaneously.The product is guaranteed for 6 months;

#2512 in Internal Computer Networking Cards

Description:
100% Brand New and High Quality
Connects one B key & one M key NGFF SSD at the same time to PCI-E 4X motherboard
Compliant with PCI Express M.2 specification 1.0
Compliant with SATA 3.0 specification for B key
Compliant with PCI-E 4X 3.0 specification for M key
Supports data transfer up to 6.0Gb/s
Supports SATA-based B key and PCI-E 4X-based M key NGFF SSD
Supports 2230, 2242, 2260 & 2280 size NGFF SSD
One NGFF B Key and one NGFF M key sockets available
8 screw holes 2230/2242/2260/2280 available to fix NGFF SSD cards
Easy installation & no driver required
No additional power required
Support boot function
Supports any OS, like Windows, Winme, Mac & Linux etc.
Please note that for B key SSD the SATA 7 pin connector must be connected to motherboard
Please note that for M key SSD there must be a 2.0 or higher PCI-E 4X socket
Package included:

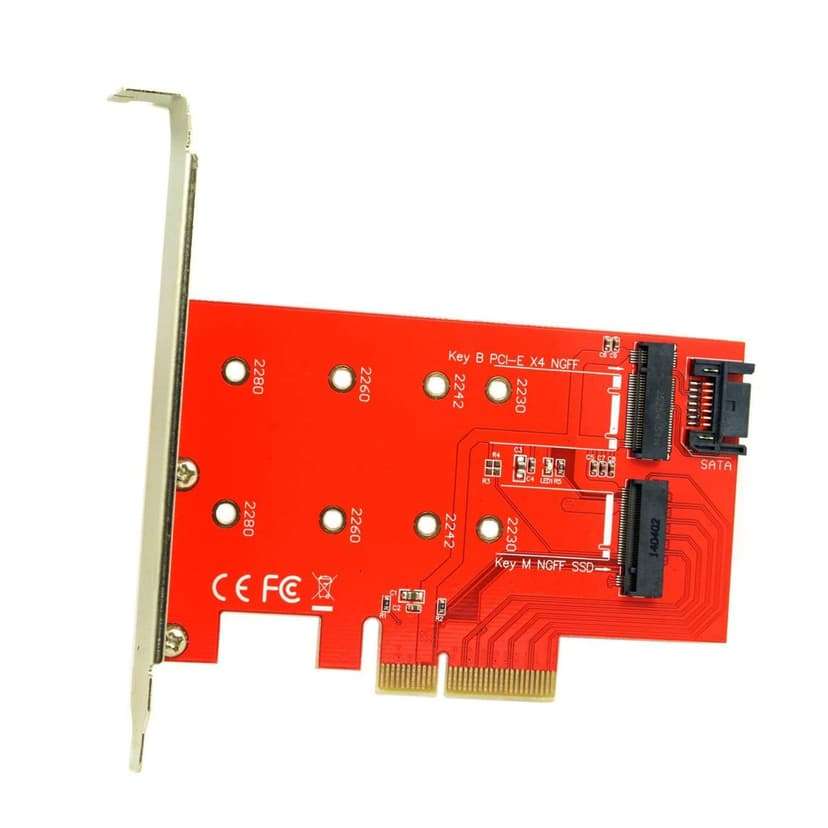

1 X 2 Port NGFF M.2 B + M Key to PCI-E 4X Adapter Card
1 X Screwdriver
1 X Cable

Condition new
Asin B08LVKZMHT
Category Electronics
Subcategory Internal Solid State Drives
Leafcategory PC Accessory
Color RED
Origin USA

Condition	new
Asin	B08LVKZMHT
Category	Electronics
Subcategory	Internal Solid State Drives
Leafcategory	PC Accessory
Color	RED
Origin	USA

Brandname LWS
Height 0.75
Length 4.49
Width 4.72
Weight 1
Operating System Windows

Brandname	LWS
Height	0.75
Length	4.49
Width	4.72
Weight	1
Operating System	Windows
