flagProduct From USA
new | Raspberry Pi HQ Camera Module with Case for Raspberry Pi 4B/3B+/3B/2B/A+/Zero/W/Zero WH,12.3MP IMX477 Sensor Support C- and CS-Mount Lenses, Alternative for Raspberry Pi Camera Module V2 (8 Items)
Brand : Bicool
new | Raspberry Pi HQ Camera Module with Case for Raspberry Pi 4B/3B+/3B/2B/A+/Zero/W/Zero WH,12.3MP IMX477 Sensor Support C- and CS-Mount Lenses, Alternative for Raspberry Pi Camera Module V2 (8 Items)
Brand : Bicool
Product Specifications
Conditionnew
AsinB08LHJR3K4
CategoryElectronics
SubcategorySingle Board Computers
LeafcategoryPC Accessory
MPNRaspberry Pi HQ Camera
ColorRaspberry Pi HQ Camera
OriginUSA
BrandnameBicool
Height1
Length1
Width1
Weight1
Display Size2 inches
Form FactorCompact
Operating SystemLinux (Raspberry Pi OS, Ubuntu, etc.) or compatible third-party operating systems like Windows 10 IoT Core
Product Details
This Raspberry Pi High Quality Camera is the latest camera board from Raspberry Pi Foundation.It is compatible with All Raspberry Pi series boards (Raspberry Pi 4B/3B+/3B/2B/A+/Zero/Zero W/Zero WH,etc.)
Higher Resolution & Sensitivity Camera Module---Compared To 8MP Of Normal Raspberry Camera, The High Quality Camera Offers Up To 12.3MP, Along With Nearly 50% Greater Area Per Pixel, Delivering Better Imaging Effect.
It adopts the IMX477R sensor, and requires a C- or CS-mount lens to work.
It could be an ideal alternative for the Raspberry Pi Camera Module V2. It suits industrial and consumer applications like security camera, and other specialist optical devices which require higher level of visual fidelity.

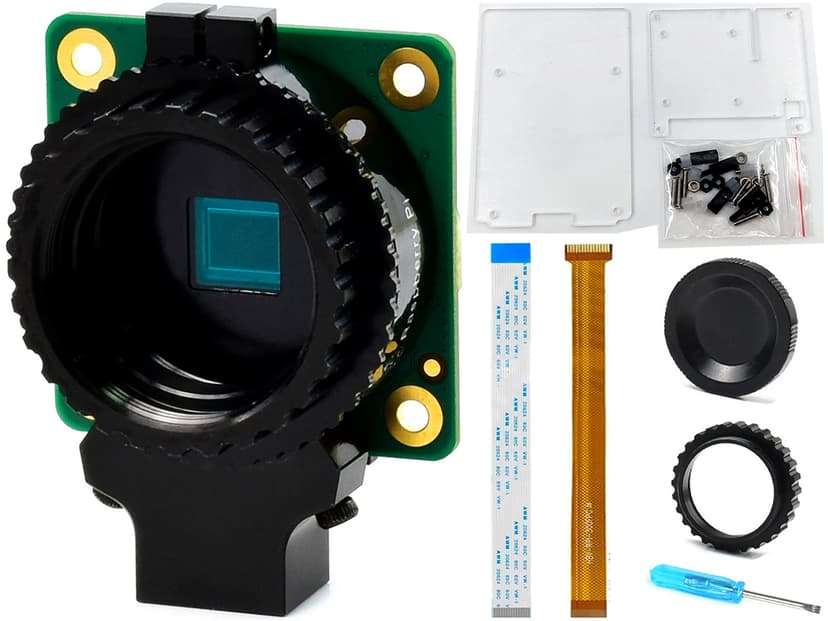

Package Content: 1.Raspberry Pi High Quality Camera main unit. 2.C-CS adapter. 3.Dust cap. 4.FPC ribbon. 5.Screwdriver. 6.Packing box. 7.Raspberry Pi Zero V1.3 Camera Cable 15cm. 8.Raspberry Pi Camera Matching Case.
What's Inside The Box ?
Raspberry Pi High Quality Camera main unit, C-CS adapter, Dust cap, FPC ribbon, Screwdriver, Packing box, Raspberry Pi Zero V1.3 Camera Cable 15cm, Raspberry Pi Camera Matching Case
Product Ranking
#795 in Single Board Computers (Computers & Accessories)
Product Description
Overview
The Raspberry Pi High Quality Camera is the latest camera board from Raspberry Pi Foundation. It adopts the IMX477R sensor, and requires a C- or CS-mount lens to work. It is compatible with Raspberry Pi series boards, offers higher resolution (12.3MP) and higher sensitivity (nearly 50% greater area per pixel for improved low-light performance) than the existing Raspberry Pi Camera Module V2.
Higher Resolution, Better Imaging Effect
Compared To 8MP Of Normal Raspberry Camera, The High Quality Camera Offers Up To 12.3MP, Along With Nearly 50% Greater Area Per Pixel, Delivering Better Imaging Effect.
The Raspberry Pi High Quality Camera could be an ideal alternative for the Raspberry Pi Camera Module V2, It suits industrial and consumer applications like security camera, and other specialist optical devices which require higher level of visual fidelity.

Specifications
SENSOR: IMX477R , 12.3MP, 4056 (H) x 3040 (V)., 7.9mm CMOS diagonal size , 1.55µm (H) x 1.55µm (V) pixel size
OUTPUT: RAW12 / 10 / 8, COMP8
BACK FOCUS: Adjustable (12.5mm-22.4mm)
LENS SUPPORT: C-mount / CS-mount (C-CS adapter included)
IR CUT FILTER: Integrated.
TRIPOD MOUNT: 1/4”-20


Package Content
1.Raspberry Pi High Quality Camera main unit
2.C-CS adapter
3.Dust cap
4.FPC ribbon
5.Screwdriver
6.Packing box
7.Raspberry Pi Zero V1.3 Camera Cable 15cm
8.Raspberry Pi Camera Matching Case

Note
1.Raspberry Pi, and lenses in the photos are NOT included
Product Description
Overview
The Raspberry Pi High Quality Camera is the latest camera board from Raspberry Pi Foundation. It adopts the IMX477R sensor, and requires a C- or CS-mount lens to work. It is compatible with Raspberry Pi series boards, offers higher resolution (12.3MP) and higher sensitivity (nearly 50% greater area per pixel for improved low-light performance) than the existing Raspberry Pi Camera Module V2.
Higher Resolution, Better Imaging Effect
Compared To 8MP Of Normal Raspberry Camera, The High Quality Camera Offers Up To 12.3MP, Along With Nearly 50% Greater Area Per Pixel, Delivering Better Imaging Effect.
The Raspberry Pi High Quality Camera could be an ideal alternative for the Raspberry Pi Camera Module V2, It suits industrial and consumer applications like security camera, and other specialist optical devices which require higher level of visual fidelity.

Specifications
SENSOR: IMX477R , 12.3MP, 4056 (H) x 3040 (V)., 7.9mm CMOS diagonal size , 1.55µm (H) x 1.55µm (V) pixel size
OUTPUT: RAW12 / 10 / 8, COMP8
BACK FOCUS: Adjustable (12.5mm-22.4mm)
LENS SUPPORT: C-mount / CS-mount (C-CS adapter included)
IR CUT FILTER: Integrated.
TRIPOD MOUNT: 1/4”-20


Package Content
1.Raspberry Pi High Quality Camera main unit
2.C-CS adapter
3.Dust cap
4.FPC ribbon
5.Screwdriver
6.Packing box
7.Raspberry Pi Zero V1.3 Camera Cable 15cm
8.Raspberry Pi Camera Matching Case

Note
1.Raspberry Pi, and lenses in the photos are NOT included
