Product From USA | Condition | new |
|---|---|
| Asin | B08K42S8ML |
| Category | Electronics |
| Subcategory | Splitters |
| Leafcategory | CE |
| Connector Type | RJ45 |
| Origin | USA |
| Brandname | PWAYTEK |
| Height | 1 |
| Length | 1 |
| Width | 1 |
| Weight | 2 |

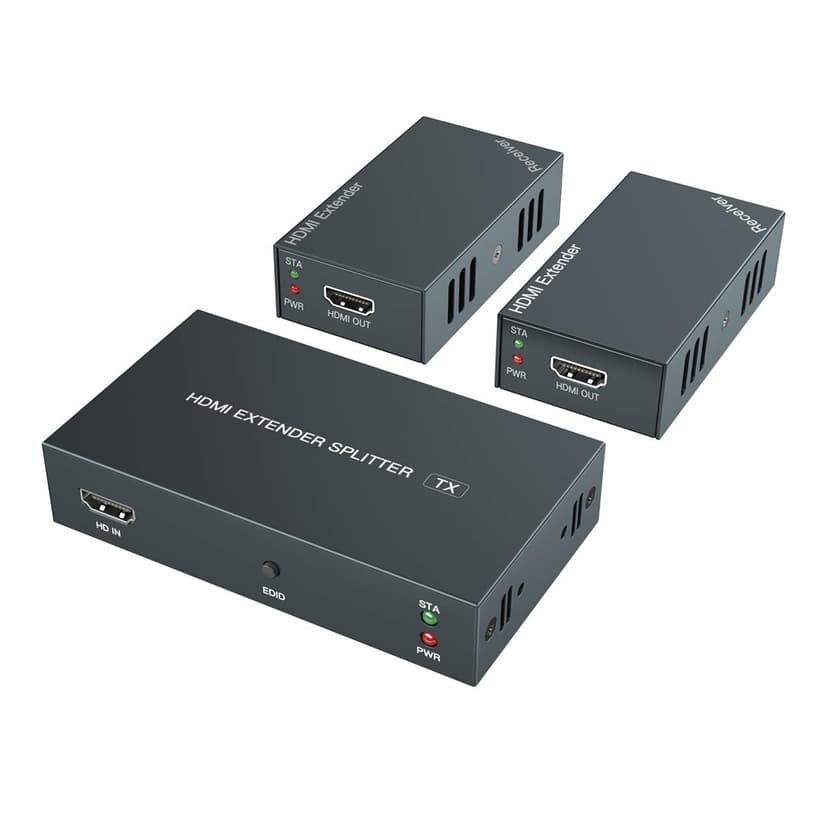

HDMI EXTENDER ONE IN TWO OUT
Change the mode of audio and video signals for longer distance transmission, HDMI IN --- CAT X --- HDMI OUT. 2-channel simultaneous transmission.
Specifications:
1.Video
- Standards---HDMI 1.3; HDCP1.2
- Maximum pixel clock---165MHz
- Maximum data rate---6.75Gbps
- Resolution---1920X1080@60Hz, 3D
- Connector---HDMI-A
2.Ethernet
- Interface---RJ45
- Recommended length---CAT6--50m/165ft; CAT5E--40m/130ft; CAT5--30m/100ft. There may be no image if the length is too short(1~10ft), please try another longer cable.
3.Others
- Power supply---Input: 110~220V; Output: 12V
- Power dissipation---MAX 12W
- Temperature---Operating: -5℃ ~ +70℃
- Humidity---Operating: 5% ~ 90%
- Dimension---TX:110*62*23mm/RX:81*45*23mm
4. Packing list
- HDMI transmitter---1 pcs
- HDMI receiver---2 pcs
- Power adapter---1 pcs
- User manual---1 pcs
About EDID
When the EDID cannot automatically identify the monitor parameters, the image may not be displayed, please perform the following steps.
(1) Connect the monitor to the HDMI IN on transmitter.
(2) Connect the power supply to transmitter.
(3) Press and hold the EDID button for 3-5 seconds. The green light on transmitter side stops flashing, indicating EDID copy is complete.
