flagProduct From USA

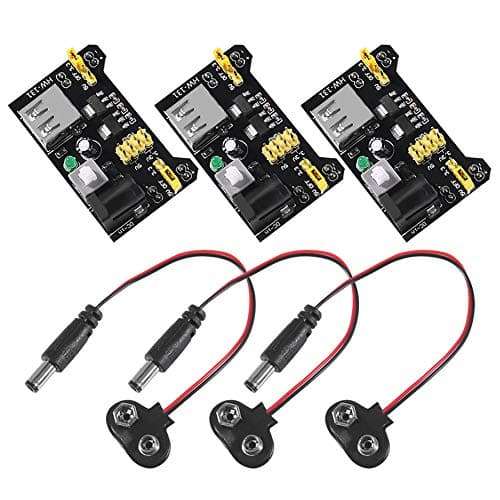

new | ALAMSCN 3.3V 5V MB102 Solderless Breadboard Power Supply Module with 9V Battery Clip Power Cable 2.1x 5.5mm Male DC Jack Plug for Arduino (Pack of 3)
SKU : 02501BAUXXB08JYPMCZY
Brand : ALAMSCN
new | ALAMSCN 3.3V 5V MB102 Solderless Breadboard Power Supply Module with 9V Battery Clip Power Cable 2.1x 5.5mm Male DC Jack Plug for Arduino (Pack of 3)
SKU : 02501BAUXXB08JYPMCZY
Brand : ALAMSCN
Product Specifications
Conditionnew
AsinB08JYPMCZY
CategoryElectronics
SubcategorySingle Board Computers
LeafcategoryPC Accessory
MPNAL12413
ColorBlack
Processor Count1
OriginUSA
BrandnameALAMSCN
Height0.39
Length0.39
Width0.39
Weight1
Warranty Description3 months
Product Details
There is a green LED to indicate the presence of power, and an ON / OFF latching switch to control the power to the board.
The input voltage through the barrel socket must be between 6.5 V and 12 V. Hence, if you wish to use it to its maximum capability you will need to remain in that range. This is a non-adjustable fixed power supply model, which is good enough for most applications.
Maximum output current to be 700 mA. However, it is probably better to use much lower voltages and current to be on the safe side in case you make a mistake on your breadboard circuit.
With 9V battery snap power cable T-type 5.5x2.1mm connector.
How to use: This is a plug-in power supply and the headers below the board simply plug-in to the breadboard. Once plugged in, the voltage rails to both sides on the breadboard then provide power. You then use the yellow jumpers to select the voltage levels required. This is a dual output 3.3 V, 5 V regulated board and you can have either voltage on either rail on the breadboard, which is very useful.
What's Inside The Box ?
3 x 5 V 3.3 V Breadboard Power Supply Module, 3 x 9V Battery Snap Clip Power Cable
Product Ranking
#607 in Single Board Computers (Computers & Accessories)
Product Description

Feature:


Breadboard Power Supply Module

For MB102 bread board

compatible with 5V, 3.3V

Input Voltage :6.5-12V (DC) or USB power supply

Output voltage: 3.3V, 5V switchable

Maximum Output Current: <700ma

Two way independent control

Can be switched to 0V, 3.3V, 5V

On-board Two sets of 3.3V, 5V DC output pins, Facilitate the external leads

Size:approx.53x35x19mm


9V Battery Snap Power Cable T-type 5.5x2.1mm connector

Cable Length: About 10cm.

15cm stripped and tinned leads, 1 red and 1 black for easy identification and soldering;

Snap-on terminal connector for 9-volt battery or for DIY projects.


Package included:

3 x 5 V 3.3 V Breadboard Power Supply Module

3 x 9V Battery Snap Clip Power Cable

Product Description

Feature:


Breadboard Power Supply Module

For MB102 bread board

compatible with 5V, 3.3V

Input Voltage :6.5-12V (DC) or USB power supply

Output voltage: 3.3V, 5V switchable

Maximum Output Current: <700ma

Two way independent control

Can be switched to 0V, 3.3V, 5V

On-board Two sets of 3.3V, 5V DC output pins, Facilitate the external leads

Size:approx.53x35x19mm


9V Battery Snap Power Cable T-type 5.5x2.1mm connector

Cable Length: About 10cm.

15cm stripped and tinned leads, 1 red and 1 black for easy identification and soldering;

Snap-on terminal connector for 9-volt battery or for DIY projects.


Package included:

3 x 5 V 3.3 V Breadboard Power Supply Module

3 x 9V Battery Snap Clip Power Cable
