0.91 INCH OLED Display: Resolution is 128*32,Very Clear,Black background with white text display.
The main chip is SSD1306; supports DC 3.3V to 5.0V supply. Working Temperature: -30 degrees ~ 70 degrees
1
2
3
4
5
6
Product From USA | Condition | new |
|---|---|
| Asin | B08JPRYM84 |
| Category | Electronics |
| Subcategory | Single Board Computers |
| Leafcategory | COMPUTER_COMPONENT |
| MPN | 169EC21 |
| Color | Blue |
| Origin | USA |
| Brandname | AITRIP |
| Weight | 1 |
Note:
Do not reverse VCC and GND. This will cause damage to the OLED display.
Pin Description:
GND: Power Ground
VCC: Power + (DC 3.3 ~5v)
SCL: Clock Line
SDA: Data Line
Specification:
Model: SH-S091
Screen size: 0.91 inch
Interface: IIC
The main chip is: SSD1306;
Operating voltage: 3.3V~5.0V power supply.
Working Temperature: -30 degrees ~ 70 degrees
Display area: 22.384 x 5.584 (mm)
Physical size: 38 x 12 (mm)
Pixel size: 0.159 x 0.159 (mm)
Pixel pitch: 0.175 x 0.175 (mm)
Interface Type: IIC Interface
Number of Pins: 4Pin

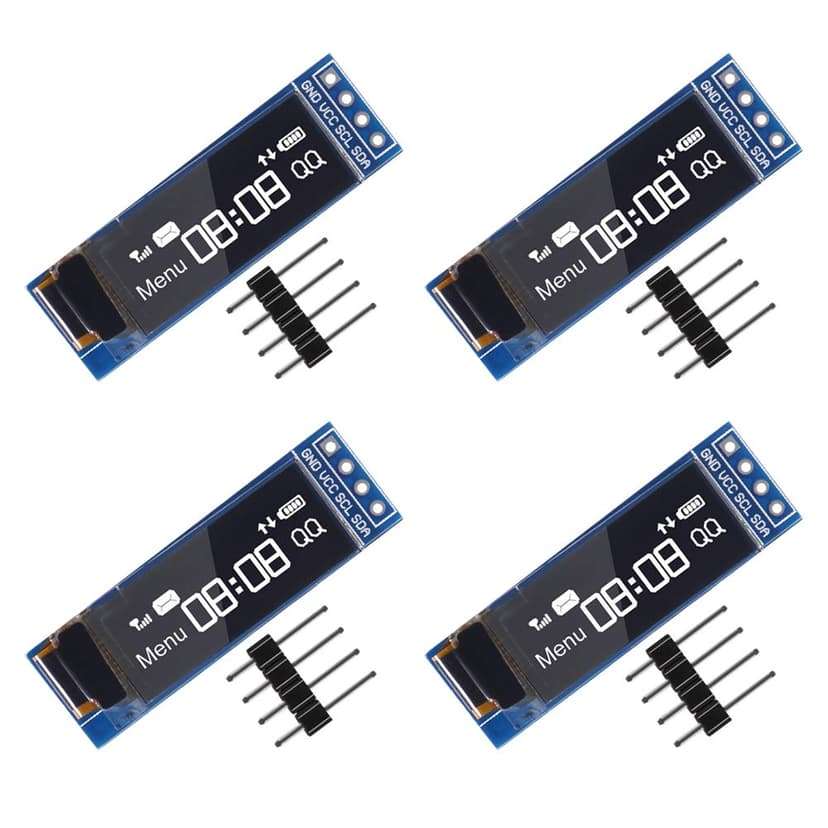

Package Including
4 * 0.91 Inch I2C SSD1306 OLED White Display Module
Note:
Do not reverse VCC and GND. This will cause damage to the OLED display.
Pin Description:
GND: Power Ground
VCC: Power + (DC 3.3 ~5v)
SCL: Clock Line
SDA: Data Line
Specification:
Model: SH-S091
Screen size: 0.91 inch
Interface: IIC
The main chip is: SSD1306;
Operating voltage: 3.3V~5.0V power supply.
Working Temperature: -30 degrees ~ 70 degrees
Display area: 22.384 x 5.584 (mm)
Physical size: 38 x 12 (mm)
Pixel size: 0.159 x 0.159 (mm)
Pixel pitch: 0.175 x 0.175 (mm)
Interface Type: IIC Interface
Number of Pins: 4Pin
Package Including
4 * 0.91 Inch I2C SSD1306 OLED White Display Module
