new | BIQU RGBDuino UNO V1.2 Jenny Development Board ATmega328P Chip CH340C VS Arduino UNO R3 Upgrade for Raspberry Pi 4 Raspberry Pi 3B
SKU : 01401BAUXXB08D97XZ7T
Brand : BIQU
new | BIQU RGBDuino UNO V1.2 Jenny Development Board ATmega328P Chip CH340C VS Arduino UNO R3 Upgrade for Raspberry Pi 4 Raspberry Pi 3B
SKU : 01401BAUXXB08D97XZ7T
Brand : BIQU
Product Specifications
Conditionnew
AsinB08D97XZ7T
CategoryElectronics
SubcategorySingle Board Computers
LeafcategoryBISS Basic
MPNZZB000414
Colorpink
CPU ManufacturerMicrochip Technology
CPU Model NumberZZB000414
CPU Speed16
Graphics Card DescriptionDedicated
Graphics Card Interfacepci_e
Processor Count1
OriginUSA
BrandnameBIQU
Height1
Length1
Width1
Weight1
Display TypeLED
Operating SystemATMEGA328P-AU
Total USB Ports1
RAM Memory Installed Size2 KB
RAM Memory Maximum Size2 KB
Product Details
【Same function as the original Arduino】It great for learning the basics of how sensors and actuators work, and an essential tool for your rapid prototyping needs
【CHIP UPGRADE】Upgrade the main control chip to ATMEGA328P-AU.And it same as the original arduino pin layout. It compatible with all expansion boards.
【ADDED A 500MA SELF-RECOVERYFUSE】Compared with the original ARDUINO, a 500ma self-recovery fuse is added, which automatically disconnects the circuit when short-circuited to avoid component damage.Change the plug-in pins of the original ARDUINO to SMD pins to avoid short circuit of the development board contact conductors, which is safer.
【Added 10 LED marquees driven by MOS tubes】which avoids the problem of insufficient output current of the IO port of the single-chip microcomputer, and can directly drive a small DC motor through the IO port.
【EASY TO USE】Change the original USB-B type interface to MICRO-USB interface, which is more convenient to use.

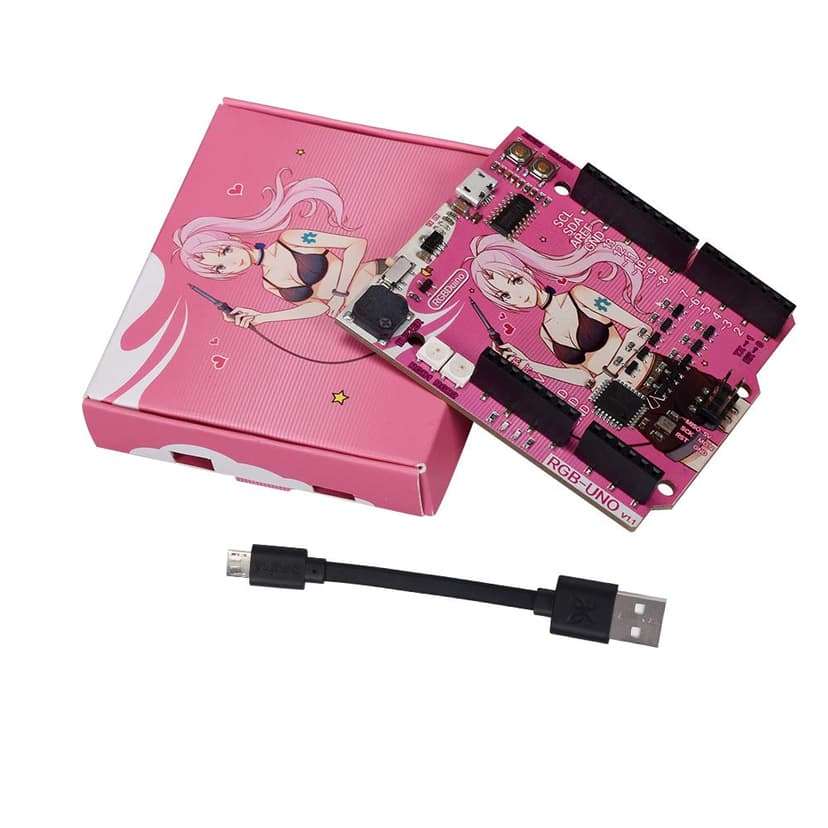

What's Inside The Box ?
RGB Lights
Product Ranking
#3556 in 3D Printer Accessories
#224287 in Industrial & Scientific
Product Description
Features：
1.It has 14 digital IO pins, of which pins 3, 5, 6, 9, 10, 11 can be used as PWM output, and pins A0~A5 are analog input pins.
2.1 16Mhz crystal oscillator; 1 Micro Usb interface; 1 ICSP interface; 1 reset button and 1 function button; 10-bit LED running light driven by MOS tube; 2 RGB lights with WS2812 chip; one without Source buzzer, a buzzer switch; 500MA self-recovery fuse
3.It contains all the structures that make up the microcontroller, and only needs a MICRO usb data cable to connect to the computer, or use a battery to start.
4. The pin layout is the same as the original arduino, compatible with all expansion boards.

What are the improvements compared to the original arduino?

1. Added a function button connected to the D2 pin;
2. Added 2 RGB lights with chips, which can display any color through the program;
3. Add a passive buzzer, can play music through the program, and design a buzzer switch, you can turn off the buzzer at any time;
4. Added 10 LED marquees driven by MOS tubes, which avoids the problem of insufficient output current of the IO port of the single-chip microcomputer, and can directly drive a small DC motor through the IO port.
5. Added 3.3V power indicator
6. Change the USB-B type interface to MICRO-USB interface, which is more convenient to use
7. Upgrade the main control chip to ATMEGA328P-AU
8. More personalized pattern printing, highlighting individuality.
9. Add 500ma self-recovery fuse, short circuit automatically disconnect the circuit, avoid component damage.
10. Change the plug-in pin to the patch pin to avoid short circuit of the development board contact conductor, which is safer.
Product Description
Features：
1.It has 14 digital IO pins, of which pins 3, 5, 6, 9, 10, 11 can be used as PWM output, and pins A0~A5 are analog input pins.
2.1 16Mhz crystal oscillator; 1 Micro Usb interface; 1 ICSP interface; 1 reset button and 1 function button; 10-bit LED running light driven by MOS tube; 2 RGB lights with WS2812 chip; one without Source buzzer, a buzzer switch; 500MA self-recovery fuse
3.It contains all the structures that make up the microcontroller, and only needs a MICRO usb data cable to connect to the computer, or use a battery to start.
4. The pin layout is the same as the original arduino, compatible with all expansion boards.

What are the improvements compared to the original arduino?

1. Added a function button connected to the D2 pin;
2. Added 2 RGB lights with chips, which can display any color through the program;
3. Add a passive buzzer, can play music through the program, and design a buzzer switch, you can turn off the buzzer at any time;
4. Added 10 LED marquees driven by MOS tubes, which avoids the problem of insufficient output current of the IO port of the single-chip microcomputer, and can directly drive a small DC motor through the IO port.
5. Added 3.3V power indicator
6. Change the USB-B type interface to MICRO-USB interface, which is more convenient to use
7. Upgrade the main control chip to ATMEGA328P-AU
8. More personalized pattern printing, highlighting individuality.
9. Add 500ma self-recovery fuse, short circuit automatically disconnect the circuit, avoid component damage.
10. Change the plug-in pin to the patch pin to avoid short circuit of the development board contact conductor, which is safer.
