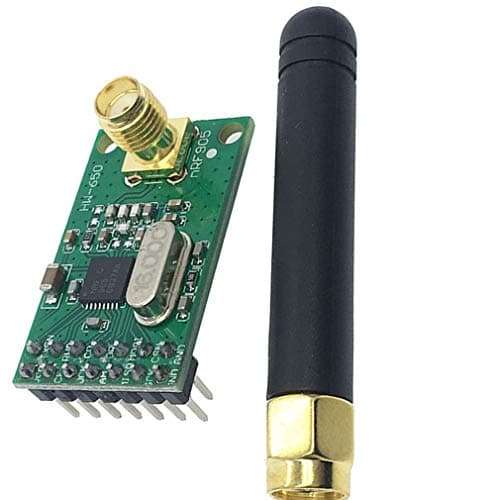

new | Hailege NRF905 Wireless Transceiver Module PTR8000+ 433/486/915MHz with Antenna NF905SE
Brand : Hailege
new | Hailege NRF905 Wireless Transceiver Module PTR8000+ 433/486/915MHz with Antenna NF905SE
Brand : Hailege
Availability :
Out Of Stock
Click to connect with our customer support
Product Specifications
Conditionnew
AsinB08D7CW5WC
CategoryElectronics
SubcategoryRadio Antennas
LeafcategorySpeakers
MPNH-A-0407
OriginUSA
BrandnameHailege
Height1
Length1
Width1
Weight1
Product Details
NRF905 working band : 433/868/915MHz
NRF905 Wireless Transceiver Module
Operating voltage : 2.7 - 3 .3 V
Number of channels : 170
Product Description
Description:
NRF905 working band : 433/868/915MHz
Number of channels : 170
Function: transmit / receive
Frequency stabilization mode : PLL
Modulation : FSK / GMSK
Maximum output power : +10 dBm
Sensitivity :-100dBm
Maximum operating rate : 76.8Kbit / s
Operating voltage : 2.7 - 3 .3 V
Features:
One tri-band transceiver operating frequency is internationally accepted ISM band 433/868/915MHz GMSK modulation, anti-interference ability , especially suitable for industrial control applications using DSS + PLL frequency synthesizer technology, high frequency stability excellent sensitivity , to - 100dBm low operating voltage (2.7V), low power consumption, standby only 1uA, low-power devices to meet the requirements of the maximum transmit power of +10 dBm with multiple channels ( up to 170 or more ) , especially to meet the needs of multi-channel work special occasions up to 76.8Kbps work rate
Minimum of external components (only 10 ) , the basic need to debug. As a result of low transmitting power and high receiver sensitivity design, without a permit , the use of open ground distances of up to 1000 m ** specific use of the environment and component parameters.
Package inclued:
1* NRF905 Wireless Transceiver Module
