new | BN-220 Dual GPS Glonass Module Navigation TTL Level 9600bps + GPS Passive Antenna for Arduino Raspberry Pi Pixhawk F3 CC3D Betaflight F4 Flight Control
SKU : 01401BAUXXB08CZM7DH8
Brand : D-FLIFE
new | BN-220 Dual GPS Glonass Module Navigation TTL Level 9600bps + GPS Passive Antenna for Arduino Raspberry Pi Pixhawk F3 CC3D Betaflight F4 Flight Control
SKU : 01401BAUXXB08CZM7DH8
Brand : D-FLIFE
Product Specifications
Conditionnew
AsinB08CZM7DH8
CategoryElectronics
SubcategoryAntennas
LeafcategorySpeakers
OriginUSA
BrandnameD-FLIFE
Height1
Length1
Width1
Weight1
Display TypeLED
Product Details
BN-220 has flash to save configuration, so you do not need to reset data next time when you use it
The data output when the TX LED flashing in blue; PPS LED not bright when GPS not fixed, flashing in red when fixed
Data Level: TTL or RS-232, Default TTL level. To make it be RS232 output, you need to use one TTL to RS232 converter cable
Great Accuracy: 2.0 m CEP 2D RMS SBAS Enable (Typical Open Sky) at Position Horizontal, 0.1m/sec 95% (SA off) at Velocity, 1us synchronized to GPS time at Timing

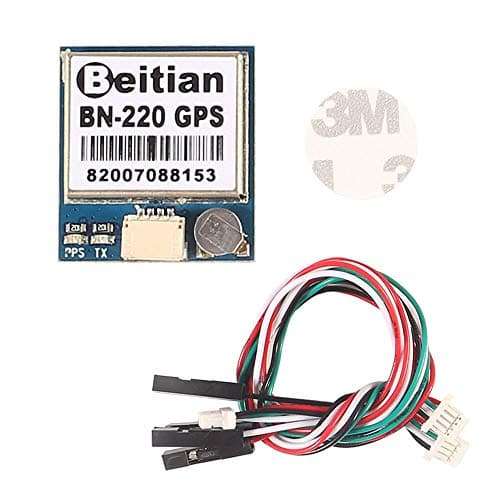

BN-220 GPS Receiver Module TTL Dual GPS Glonass Navigation w/Flash + GPS Passive Antenna for Arduino Raspberry Pi Pixhawk F3 CC3D Betaflight F4 Aircraft Flight Control RC FPV Drone
Product Description

Features:

Dimension: 22mm*20mm*6mm

Weight: 5.3g

Connector: 1.00mm spacing between the 4pins patch seat

Specification

Chipset: M8030-KT

Receiving Format: GPS, GLONASS, Galileo, BeiDou, QZSS and SBAS

Frequency: GPS L1,GLONASS L1,BeiDou B1,SBAS L1,Galileo E1

Channels: 72 Searching Channel

Sensitivity

Tracking: -167dBm

Reacquisition: -160dBm

Cold start: -148dBm

Hot start: -156dBm

Accuracy

Position Horizontal: 2.0 m CEP 2D RMS SBAS Enable (Typical Open Sky)

Velocity: 0.1m/sec 95% (SA off)

Timing: 1us synchronized to GPS time

Acquisition Time

Cold Start: 26s

Warm start: 25s

Hot start: 1s

Data output

Support Rate: 4800bps to 921600bps,Default 9600bps

Data Level: TTL or RS-232,Default TTL level

Data Protocol: NMEA-0183 or UBX, Default NMEA-0183

Single GNSS: 1Hz-18Hz

Concurrent GNSS: 1Hz-10Hz,Default 1Hz

Operational Limits

Altitude: 50,000m Max

Velocity: 515m/s Max

Acceleration: Less than 4g

Power consumption

VCC: DC Voltage 3.0V-5.5V,Typical: 5.0V

Current: Capture 50mA/5.0V

Operating temp:　-40 °C ~ +85°C

Storage Temp: -40°C ~ +105°C

Indicator:

TX LED: blue. The data output, TX LED flashing

PPS LED: red.PPS LED not bright when GPS not fixed, flashing when fixed

Wiring:

PIN GND: Ground

PIN TX: Serial Data Output

PIN RX: Serial Data Input

PIN VCC: DC 3.0V-5.5V supply input, Typical: 5.0V

Packaging List

1 x BN-220 GPS Module

2 x 15cm Cable

Product Description

Features:

Dimension: 22mm*20mm*6mm

Weight: 5.3g

Connector: 1.00mm spacing between the 4pins patch seat

Specification

Chipset: M8030-KT

Receiving Format: GPS, GLONASS, Galileo, BeiDou, QZSS and SBAS

Frequency: GPS L1,GLONASS L1,BeiDou B1,SBAS L1,Galileo E1

Channels: 72 Searching Channel

Sensitivity

Tracking: -167dBm

Reacquisition: -160dBm

Cold start: -148dBm

Hot start: -156dBm

Accuracy

Position Horizontal: 2.0 m CEP 2D RMS SBAS Enable (Typical Open Sky)

Velocity: 0.1m/sec 95% (SA off)

Timing: 1us synchronized to GPS time

Acquisition Time

Cold Start: 26s

Warm start: 25s

Hot start: 1s

Data output

Support Rate: 4800bps to 921600bps,Default 9600bps

Data Level: TTL or RS-232,Default TTL level

Data Protocol: NMEA-0183 or UBX, Default NMEA-0183

Single GNSS: 1Hz-18Hz

Concurrent GNSS: 1Hz-10Hz,Default 1Hz

Operational Limits

Altitude: 50,000m Max

Velocity: 515m/s Max

Acceleration: Less than 4g

Power consumption

VCC: DC Voltage 3.0V-5.5V,Typical: 5.0V

Current: Capture 50mA/5.0V

Operating temp:　-40 °C ~ +85°C

Storage Temp: -40°C ~ +105°C

Indicator:

TX LED: blue. The data output, TX LED flashing

PPS LED: red.PPS LED not bright when GPS not fixed, flashing when fixed

Wiring:

PIN GND: Ground

PIN TX: Serial Data Output

PIN RX: Serial Data Input

PIN VCC: DC 3.0V-5.5V supply input, Typical: 5.0V

Packaging List

1 x BN-220 GPS Module

2 x 15cm Cable
