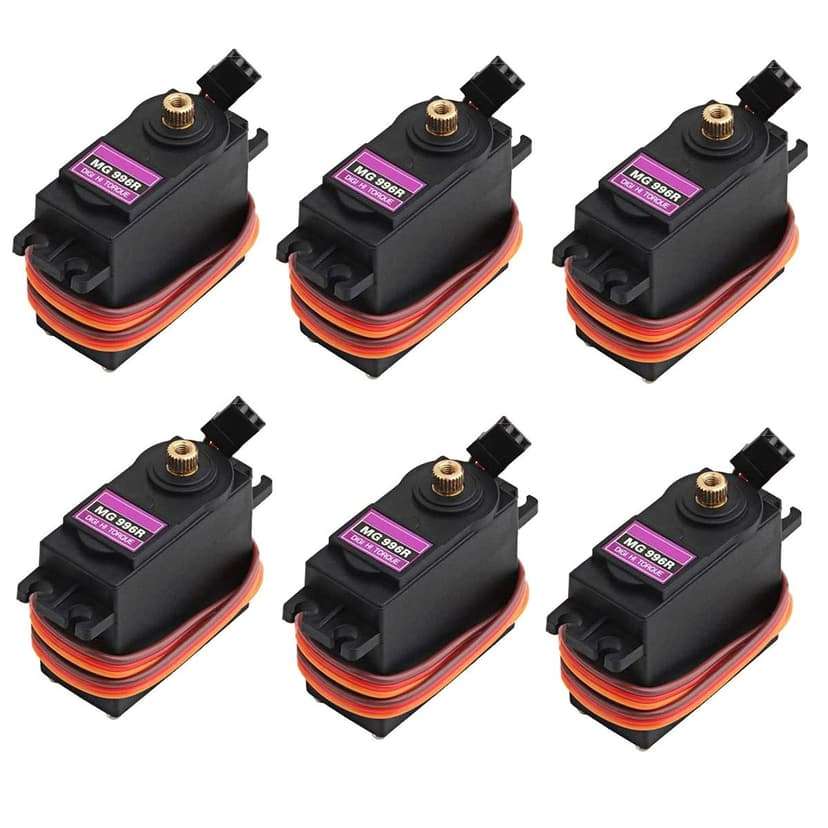

new | ETMall 6PCS MG996R Servo Motor Metal Gear Servo Motor Torque Digital Servo Motor High Speed Torque Servo Motor for Smart Car Robot Boat RC Helicopter Compatible Arduino Raspberry Pi Project
SKU : 07301BAUXXB08CH2SJLR
Brand : ETMall
new | ETMall 6PCS MG996R Servo Motor Metal Gear Servo Motor Torque Digital Servo Motor High Speed Torque Servo Motor for Smart Car Robot Boat RC Helicopter Compatible Arduino Raspberry Pi Project
SKU : 07301BAUXXB08CH2SJLR
Brand : ETMall
Product Specifications
Conditionnew
AsinB08CH2SJLR
CategoryToys & Games
SubcategoryElectronic Learning Toys
LeafcategoryToy
MPN8CH2SJLR
ColorMg996r
OriginUSA
BrandnameETMall
Height1
Length1
Width1
Weight1
Product Details
WHY CHOOSE IT: This MG996R Servo motor which updated from SG90 and MG90S micro servo motor. (the Speed, Tension and Accuracy allincrease).This high-speed standard servo motor can rotate 180 degrees (90 in each direction).
WIDE APPLICATIONS: The MG996R Servo model Good performance digital standard servo, compliant with most standard receiver connector,for Futaba, Hitec, Sanwa, GWS etc. Which can be a common use for robots, mechanical arms, climbing cars and remote control toys.
ELECTRICAL SPECIFICATION: The MG996R Servo Torque at 4.8V 13.5kg/cm, 6V 15.2kg/cm. Positioning speed at 4.8V without load 0.17s / 60 degrees;6.0V without load 0.15s / 60 degrees. Recommended voltage: 5V, current use: 3A.
STABLEPERFORMANCE：Stable and shock-proof iron core motor, metal gears, power supply through external adapter.
Tips: If you’re not completely satisfied for any reason, simply return it or contact us.Your 100% satisfaction is our goal.
Product Ranking
#353 in RC Servos
#197617 in Toys & Games
Product Description
Specifications:
Products Name: MG996R Digital servo
Compliant with most standard receiver connector: Futaba, Hitec, Sanwa, GWS etc
Great for truck, Boat, Racing Car, Helicopter and Airplane.

Storage Temperature Range: -30°C～80°C
Operating Temperature Range: -25°C～70°C

Gear type: 5 metal
Dimension: 40.5mm*20mm*39.5mm
Operat voltage: 4.8V 6.0V
No load speed: 0.17sec/60° 0.15sec/60°
Runnig current: 160mA 170mA
Peak stall torque: 13.5kg.cm 15.2kg.cm
Stall current: 1800mA±10% 2200mA±10%
Command signal Pulse width modification
Amplifier type: Digital controller
Pulse width range: 500～2500usec
Neutral position: 1500usec

Notes:
1.For engine powered airplane and boats, rubber must be used to reduce vibration.
2.Torque over-loaded will damage the servo's mechanism.
3. Please choose correct model for your application.
4. Keep the servo clean and away from dust, corrosive gas and humid air.

Package Included
6 * MG996R Micro Servo motor
Product Description
Specifications:
Products Name: MG996R Digital servo
Compliant with most standard receiver connector: Futaba, Hitec, Sanwa, GWS etc
Great for truck, Boat, Racing Car, Helicopter and Airplane.

Storage Temperature Range: -30°C～80°C
Operating Temperature Range: -25°C～70°C

Gear type: 5 metal
Dimension: 40.5mm*20mm*39.5mm
Operat voltage: 4.8V 6.0V
No load speed: 0.17sec/60° 0.15sec/60°
Runnig current: 160mA 170mA
Peak stall torque: 13.5kg.cm 15.2kg.cm
Stall current: 1800mA±10% 2200mA±10%
Command signal Pulse width modification
Amplifier type: Digital controller
Pulse width range: 500～2500usec
Neutral position: 1500usec

Notes:
1.For engine powered airplane and boats, rubber must be used to reduce vibration.
2.Torque over-loaded will damage the servo's mechanism.
3. Please choose correct model for your application.
4. Keep the servo clean and away from dust, corrosive gas and humid air.

Package Included
6 * MG996R Micro Servo motor
