new | Winters Digital Vacuum Gauge (0 to 10000 psi) Alongwith Calibration Certificate by INSTRUKART
Brand : Ace Instruments
new | Winters Digital Vacuum Gauge (0 to 10000 psi) Alongwith Calibration Certificate by INSTRUKART
Brand : Ace Instruments
₹ 35,556.00 M.R.P :₹ 59,261.00
40% OFF
Availability : ₹ 35,556.00
M.R.P :₹ 59,261.00
40% OFF
In Stock
*Prices subject to change due to market. The price shown in the checkout is the guaranteed price. ₹ 35,556.00 M.R.P : ₹ 59,261.00
40% OFF
Availability : ₹ 35,556.00
M.R.P : ₹ 59,261.00
40% OFF
In Stock
Delivery :
Available Checking...
Quantity
7 days Replacement
Manufacturers Warranty
Top Brand
Free delivery
Secure Transaction
Blue Dart Delivered
Contact For Bulk Product Enquiry
100% Guarantee Safe Checkout
Note: Please be aware that products from the USA may come with an input voltage of 110V - 120V, requiring the use of an appropriate step-down transformer for compatibility. Understanding the device's wattage is essential for selecting the correct power converter.
Product Specifications
| Condition | new |
|---|---|
| Asin | B08BXKR7FT |
| Category | Industrial & Scientific |
| Subcategory | Temperature Indicators |
| Leafcategory | BISS Basic |
| MPN | 3Z-9NVH-UTXI |
| Origin | USA |
| Brandname | Ace Instruments |
| Height | 1 |
| Length | 1 |
| Width | 1 |
| Weight | 6 |
Product Details
Peak pressure indication option
316L welded diaphragm seal
Standard Rubber boot
ASME B40.100 compliant
Selectable Pressure unit
Range: 0 to 700 bar (0 to 10000 psi)
Operating temperature: 14°F to 122°F (-10°C to 50°C)
Storage Temperature: -4°F to 167°F (-20°C to 75°C)
Accuracy: ±0.5% of readings
Connection: 1/4” NPT 304SS
Case Size: 2.5” (63mm)
Case Material: ABS (IP64)
Rubber Boot: Silicone rubber (IP65) overall cover
Sensor: 316L welded, Piezo
Operating Life: 1 million cycles
Power Supply: 2 x AAA battery (1.5V)
LCD Display: 2” x 3/4” (48mm x 16mm) with engg. unit Display
Power Mode: Auto or manual shut-off
Resolution: 1 digit
Response Time: ≤ 3 Hz display refresh rate
Supply Scope: 1 unit of Winters DPG, Instruction manual & Calibration Certificate
Applications: For Commercial and Industrial Applications.
Product Description

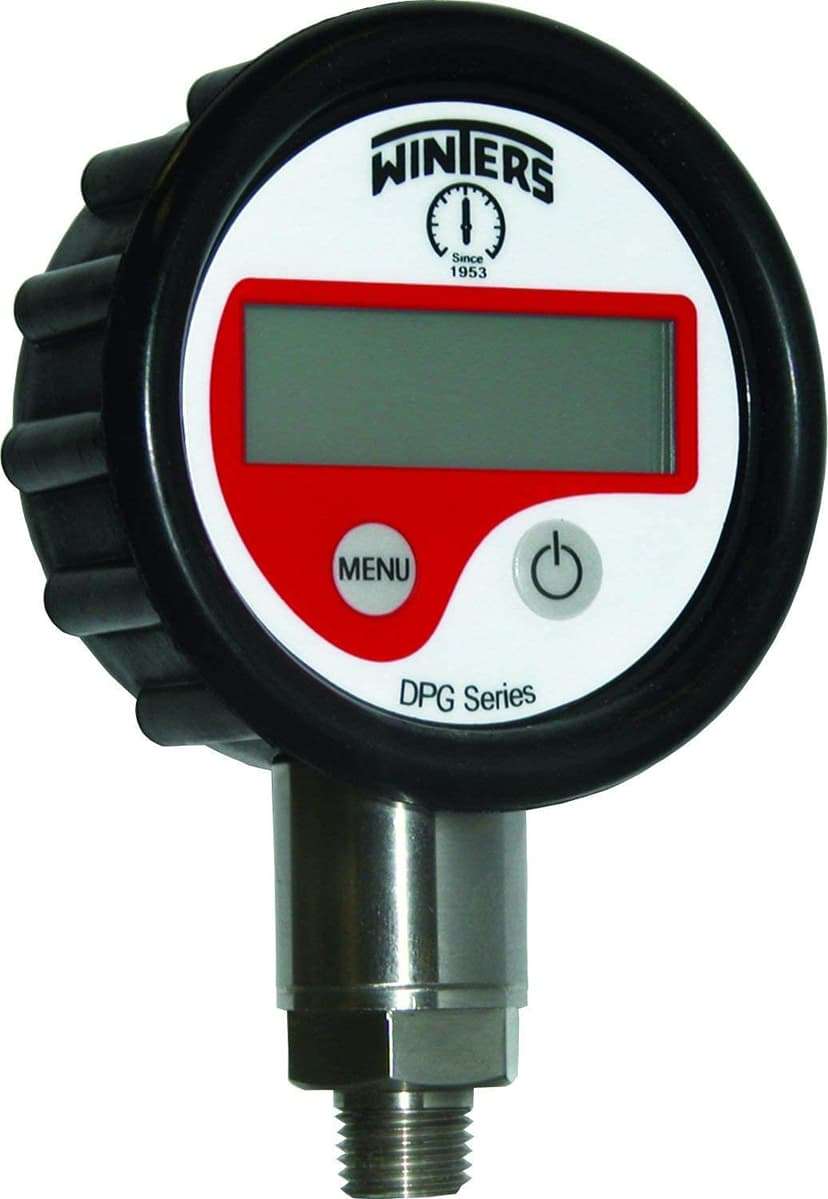

Winters DPG Series Digital Pressure Gauge. Applications: Ideal for commercial and industrial applications in both test measurement and general purpose installations. Case Size: 2.5". Case material: ABS Plastic. Rubber Boot Included (Silicone Rubber). LCD Display: 2" x 3/4". Connection: 1/4" NPT (304 SS) Bottom. Sensor: 316L SS Welded, Piezo. Operating Life: 1 million cycles. Power Supply: 2 x AAA batteries. Power Mode: Auto or manual shut-off. Display Digits: 4 digits to 5,000 psi, 5 digits to 15,000 psi. Pressure Units: psi, mH2O, mmHg, mbar, kPa for gauge ranges less than or equal to 100 psi. psi, bar, kg/cm2, MPa, atm for gauge ranges greater than or equal to 160 psi. Response Time: Less than or equal to 3 Hz display refresh rate. Proof/Burst Pressure: 200%/300% FS. Operating Temp: 14-122 F. Storage Temp: -4-167 F. Accuracy: +/-1%. Enclosure Rating: IP60. Range: 0-10000 psi.
Product Description
Winters DPG Series Digital Pressure Gauge. Applications: Ideal for commercial and industrial applications in both test measurement and general purpose installations. Case Size: 2.5". Case material: ABS Plastic. Rubber Boot Included (Silicone Rubber). LCD Display: 2" x 3/4". Connection: 1/4" NPT (304 SS) Bottom. Sensor: 316L SS Welded, Piezo. Operating Life: 1 million cycles. Power Supply: 2 x AAA batteries. Power Mode: Auto or manual shut-off. Display Digits: 4 digits to 5,000 psi, 5 digits to 15,000 psi. Pressure Units: psi, mH2O, mmHg, mbar, kPa for gauge ranges less than or equal to 100 psi. psi, bar, kg/cm2, MPa, atm for gauge ranges greater than or equal to 160 psi. Response Time: Less than or equal to 3 Hz display refresh rate. Proof/Burst Pressure: 200%/300% FS. Operating Temp: 14-122 F. Storage Temp: -4-167 F. Accuracy: +/-1%. Enclosure Rating: IP60. Range: 0-10000 psi.
