new | Ender 3 Upgrades Dual Z Axis Kit, SIBOOR Lead Screw Dual Z Stepper Motor Upgrade Kit for Creality Ender 3, Ender 3 Pro, Ender 3 V2, Voxelab Aquila 3D Printer
SKU : 06602BAUXXB08B6B5SMG
Brand : SIBOOR
new | Ender 3 Upgrades Dual Z Axis Kit, SIBOOR Lead Screw Dual Z Stepper Motor Upgrade Kit for Creality Ender 3, Ender 3 Pro, Ender 3 V2, Voxelab Aquila 3D Printer
SKU : 06602BAUXXB08B6B5SMG
Brand : SIBOOR
Product Specifications
Conditionnew
AsinB08B6B5SMG
CategoryIndustrial & Scientific
Subcategory3D Printer Accessories
LeafcategoryBISS Basic
MPNE3UDZAK
OriginUSA
BrandnameSIBOOR
Height3.54
Length15.75
Width3.54
Weight2
Product Details
Ender 3 upgrades Dual Z Axis structure, makes your Ender 3 series printer more stable and improve the printing accuracy
Low upgrade cost, Cost-effective(high cost performance), minimal cost upgrade and maximum optimization
Mature solution, compatible with Ender 3, Ender 3 Pro, Ender 3 V2, we provide technical guidance
Using the original T8 leads to 2MM screw, length of the lead screw: 365mm/ 14.4 inch
Use all-aluminum coupling and original 42 stepper motor, stable operation
Product Description
Product Number:NS0175
Product size:40 * 9 *9cm
Product weight:800g
Product material: Sheet metal + Stainless steel
Packing listing:

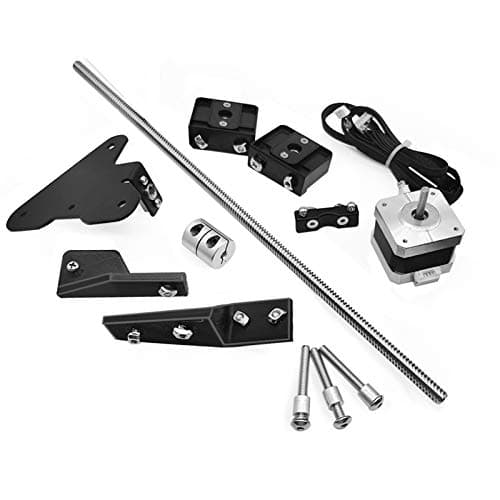

42-34 stepper motor*1PC
Lead Screw Bearing Guide*2PCS
Power Supply Holder*1SET
Coupler *1PC
Z Axis Lead Screw Bracket with Brass Nut*1PC
Dual Z Stepper Cable*1PC
Z Motor Bracket with screws and t-nuts*1PC
365mm T8 Lead Screw*1PC
Matching all screws and tools*1SET
Installation tutorial
1.Turn off the printer, unplug the power cord, and use a hex wrench to remove the two screws which are secure the power supply. Remove the power supply.
2.Install the coupler (④) on the stepper motor (①) and tighten the screws. Use the hexagon socket screws and the Z AxisMotor Bracket (⑦) to fix the motor on the aluminum profile
3.Remove all the screws of sheet metal pulley on the right side of the X axis.
4.Use long screws to fix the Z-axis sheet metal (⑤) and install it on the X-axis right sheet metal. Screw the T8 screw (⑧) into the screw nut to the coupler, and tighten the screw of coupler .
5.Install dual Z stepper cable(⑥) to the motherboard, and connect two Z motors.
6.Install the Phillips screw and the boat nut on the power supply holder (③) to install the power supply.
7.Place the lead screw bearing guide(②) on the left and right sides of the X-axis aluminum profile and let the Z-axis rise to the highest position. If one side is uneven,turn the corresponding coupler clockwise.
8.Install the lead screw bearing guide(②) and tighten the screws. Pay attention to the alignment position of the mount, refer to the arrow in the figure below.
9.If any Z axis does not run smoothly during operation, please try to loosen the screws corresponding to the Z axis in the circle on the right. If the right pulley is too loose, adjust the eccentric bolt in the box.
