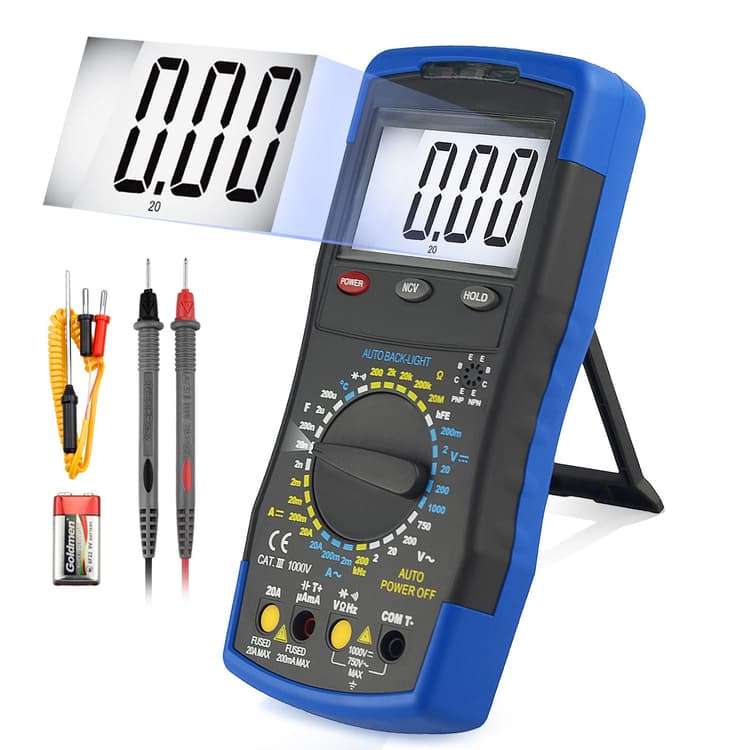

new | ANNMETER AN-770B Digital Multimeter - AC/DC Voltmeter, AC/DC Current Tester, NVC Ohm Capacitance Temperature Reader, hFE Diode Test Multimeter for Electric System
Brand : AIOMEST
new | ANNMETER AN-770B Digital Multimeter - AC/DC Voltmeter, AC/DC Current Tester, NVC Ohm Capacitance Temperature Reader, hFE Diode Test Multimeter for Electric System
Brand : AIOMEST
Availability :
Out Of Stock
Click to connect with our customer support
Product Specifications
Conditionnew
AsinB0897C2XQJ
CategoryTools & Home Improvement
SubcategoryMulti Testers
LeafcategoryHome Improvement
MPNAN-770B
Color770B AC/DC Voltmeter
OriginUSA
BrandnameAIOMEST
Height1
Length1
Width1
Weight2
Product Details
🔥【Phenomenal Multimeter】This Multimeter got all the functions needed for troubleshooting of electrical system: Testing AC/DC voltage200mV~1000V, AC/DC current up to 20A and Max hold for 10 sec. Resistance Ohm 20MΩ, Capacitance 200uF, with wide temperature range -4~1832 Fahrenheit.
🔥【Trouble Shooting Tester】A basic household tool with accurate manual1999 counts reading; Built-in Fuse, overload Protection on all ranges, which makes it a safe voltmeter for electrical hobbies to diagnose an alternator issue with ease. Ideal for electric components checking, heating element repairing,etc.
🔥【Non-Contact AC Volt Detector】AC voltmeter its able to diagnose so many electrical problems just by holding down a 'NCV' button and gently moving the device along a cable or a wall, listening for the spot where the current stops. (With red light up and buzzer will beep when testing AC volt 90V~1000V)
🔥【Multi-Function Tester】 AN-770B in particular is of a large LCD display for easy reading; With Auto backlit handy in the dark measurements; Thanks to the Hold button, it’s convenient for you to note down the digits before forgetting it; Function switch indicator lamp for visually reading.
🔥【Durable Voltmeter】ANNMETER designed according to IEC-1010 concerning electronic measuring instruments with an over-voltage category 1000V (CAT Ⅲ) and pollution 2. With double insulation (protection Class II). 12Months warranty, life-long technical support, buy in confidence!
Product Description

ANNMETER AN-770B Come with a Hi-Impact resistant ABS housing with soft over-molded rubber sides with a compact ergonomic design. Support stand can 180 roating for hanging on wall or stand on table; Hanging Magnet allows to set your hands free.





☞ Specification:

  • Dimension: 7.67x3.46x1.57’’
  • Weight: approx. 0.77Ib (including battery)
  • Power supply: 9V battery (6F22 or NEDA 1604)
  • Display: 3 1/2 digit LCD with a max. reading of 1999.
  • Over-range Indication: display “1” or “-1” for the significant digit.



☞ Testing Specification:

  • Frequency: 200KHz
  • Temperature: -4~1832Fahrenheit
  • DC Voltage: 200mV, 2V, 20V, 200V, 1000V
  • AC Voltage: 2V,20V, 200V,750V
  • DC Current: 2mA, 20mA, 200mA, 20A
  • AC Current: 20mA, 200mA, 20A
  • Resistance: 200Ω, 2kΩ, 20kΩ, 200kΩ, 20MΩ
  • Capacitance: 2nF, 20nF, 200nF, 2µF, 200µF
  • Fuse protection: 200mA/500V & 20A/500V Fast Fuse
  • Max Voltage between input terminal and Earth Ground: CAT Ⅲ 1000V





☞ What’s in Box

  • 1* Test lead
  • 1* Temp Probe
  • 1* Instruction
  • 1* AN-770B Multimeter
Product Description

ANNMETER AN-770B Come with a Hi-Impact resistant ABS housing with soft over-molded rubber sides with a compact ergonomic design. Support stand can 180 roating for hanging on wall or stand on table; Hanging Magnet allows to set your hands free.





☞ Specification:

  • Dimension: 7.67x3.46x1.57’’
  • Weight: approx. 0.77Ib (including battery)
  • Power supply: 9V battery (6F22 or NEDA 1604)
  • Display: 3 1/2 digit LCD with a max. reading of 1999.
  • Over-range Indication: display “1” or “-1” for the significant digit.



☞ Testing Specification:

  • Frequency: 200KHz
  • Temperature: -4~1832Fahrenheit
  • DC Voltage: 200mV, 2V, 20V, 200V, 1000V
  • AC Voltage: 2V,20V, 200V,750V
  • DC Current: 2mA, 20mA, 200mA, 20A
  • AC Current: 20mA, 200mA, 20A
  • Resistance: 200Ω, 2kΩ, 20kΩ, 200kΩ, 20MΩ
  • Capacitance: 2nF, 20nF, 200nF, 2µF, 200µF
  • Fuse protection: 200mA/500V & 20A/500V Fast Fuse
  • Max Voltage between input terminal and Earth Ground: CAT Ⅲ 1000V





☞ What’s in Box

  • 1* Test lead
  • 1* Temp Probe
  • 1* Instruction
  • 1* AN-770B Multimeter
