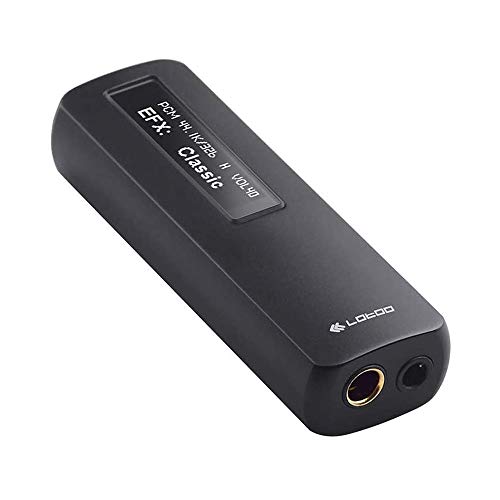

new | Lotoo PAW S1 Portable USB DAC-Amp
Brand : LT LOTOO
new | Lotoo PAW S1 Portable USB DAC-Amp
Brand : LT LOTOO
Product Specifications
Conditionnew
AsinB088W3FQ4V
CategoryElectronics
SubcategoryAmps
LeafcategorySpeakers
MPNS1
OriginUSA
BrandnameLT LOTOO
Height1
Length1
Width1
Weight1
Product Details
High-Performance and High DAC Chip Utilization ; Standalone Headphone Amp
The 4.4 Balanced & 3.5 Single-Ended Dual Outputs ; 120mW@32Ω (per channel) is what makes the S1 a great companion even for over-the-ear headphones as well as IEMs.
It is rare to find a dongle-sized DAC like the PAW S1 that supports not only multiple OS but also both Android and iOS.
The studio quality EQ/ATE, unique to the Lotoo PAW Lineup, is also available on the PAW S1.
Lotoo provides a high/low gain control in the PAW S1 primarily with a safer listening experience in mind. Also, this feature helps to accommodate a wider range of headphones and IEMs.
Product Description
Lotoo PAW S1 Portable USB DAC-Amp
SPECIFICATIONS
Supported Format: PCM 32K-384KHz DSD64/DSD128
Weight: 27.10g
Size: 66mm*22mm*13mm
Max Output: 3.5mm:70mW/ch @32Ω
4.4mm:120mW/ch @32Ω
HP Port: 3.5mm Unbalanced
4.4mm Balanced
Freq. range: 3.5mm: 20-20KHz..+0/-0.017dB
4.4mm: 20-20KHz..+0/-0.016dB
USB Port: USB Type C
Noise Level: 3.5mm: -118dBu
4.4mm: -114dBu
Screen: OLED 128x32
THD+N.. Low gain: -106dB(0.0005%)
High gain: -108dB(0.0004%)
OS.. LTOS
S/N: 3.5mm: 123dB
4.4mm: 122dB
Firmware Update: Supported
