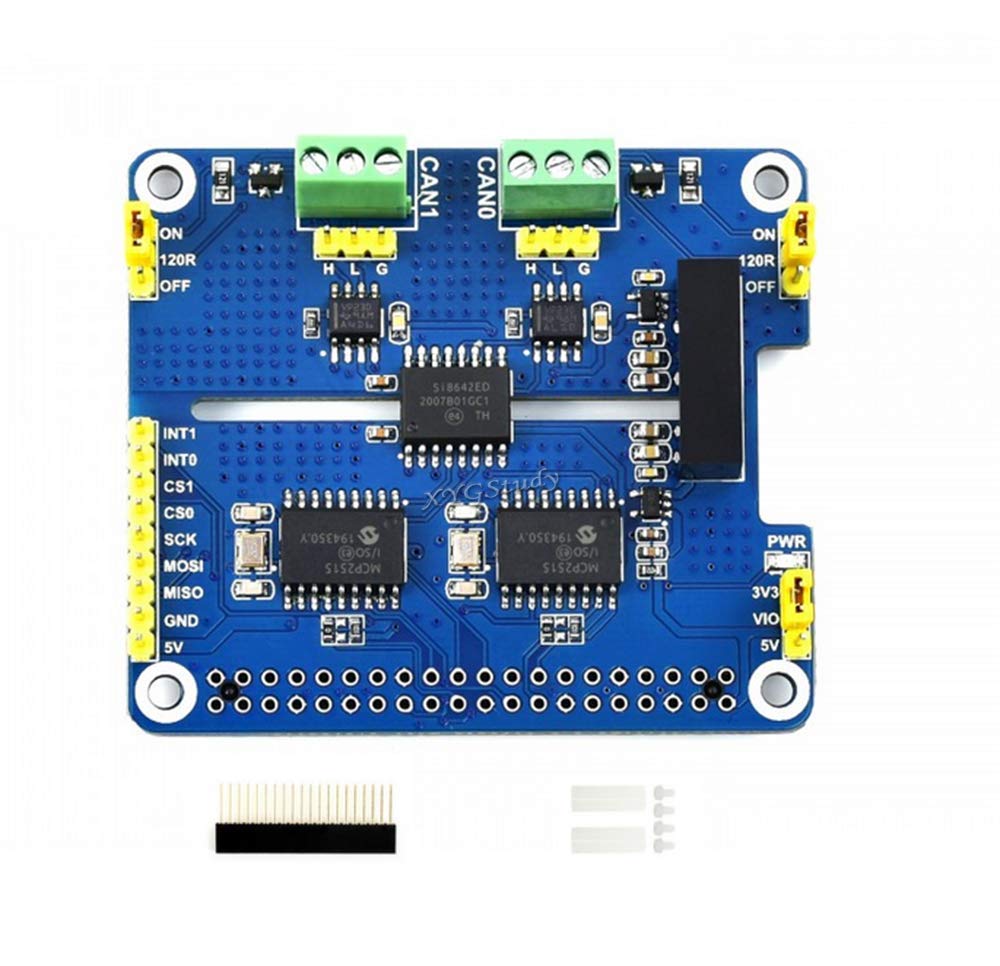

new | for Raspberry Pi 2-Channel Isolated CAN Bus Expansion HAT MCP2515 + SN65HVD230 Dual Chips Solution 3.3V/5V Breakout SPI STM32 with Multi Onboard Protection Circuits 2-CH @XYGStudy
SKU : 00301BAUXXB087PWBFV8
Brand : XYGStudy
new | for Raspberry Pi 2-Channel Isolated CAN Bus Expansion HAT MCP2515 + SN65HVD230 Dual Chips Solution 3.3V/5V Breakout SPI STM32 with Multi Onboard Protection Circuits 2-CH @XYGStudy
SKU : 00301BAUXXB087PWBFV8
Brand : XYGStudy
Product Specifications
Conditionnew
AsinB087PWBFV8
CategoryElectronics
SubcategorySingle Board Computers
LeafcategoryPersonal Computer
Color2-CH CAN HAT
CPU ManufacturerVIA
OriginUSA
BrandnameXYGStudy
Height1
Length1
Width1
Weight1
Product Details
Part Number: 2-CH CAN HAT
2-Channel Isolated CAN Bus Expansion HAT for Raspberry Pi, MCP2515 + SN65HVD230 Dual Chips Solution, Multi Onboard Protection Circuits
Enable isolated and stable CAN bus capability for your Raspberry Pi, Standard Raspberry Pi 40PIN GPIO header, customized for Raspberry Pi series boards
Adopts MCP2515 and SN65HVD230 dual chips combined solution, allows 2-channel CAN communication
Integrated power isolation, providing stable isolated voltage, requires no extra power supply for the isolated terminal
Product Ranking
#4477 in Computer Motherboards
Product Description
Overview
2-Channel Isolated CAN Bus Expansion HAT for Raspberry Pi, MCP2515 + SN65HVD230 Dual Chips Solution, Multi Onboard Protection Circuits

Features
Enable isolated and stable CAN bus capability for your Raspberry Pi, Standard Raspberry Pi 40PIN GPIO header, customized for Raspberry Pi series boards
Adopts MCP2515 and SN65HVD230 dual chips combined solution, allows 2-channel CAN communication
Integrated power isolation, providing stable isolated voltage, requires no extra power supply for the isolated terminal
Onboard digital isolator, signal isolation makes the communication more safe, more stable, and better anti-interference
Onboard TVS (Transient Voltage Suppressor) diode, provides ESD protection and transient peak voltage protection
Onboard voltage translator, select 3.3V/5V operating voltage by jumper
Onboard 120Ω terminal resistor, configured by jumper
Breakout SPI control pins, for connecting with host control boards like STM32/Arduino

Package Contains :
2-CH CAN HAT x1
Standoffs pack (2pcs) x1
2×20PIN female header x1

For more details you may need to know, pls firstly send me message via Amazon,
I will then send attached link including User Guide for you, thank you for patience :)
