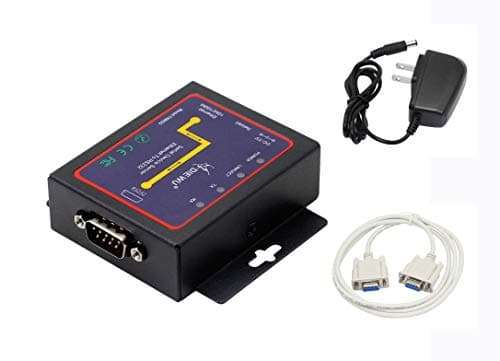

new | CERRXIAN RS232 to Ethernet Serial Device Server, 1 Port RS 232 DB9 Serial to Ethernet TCP IP Device Server Converter
SKU : 02501BAUXXB087J9F6LF
Brand : CERRXIAN
new | CERRXIAN RS232 to Ethernet Serial Device Server, 1 Port RS 232 DB9 Serial to Ethernet TCP IP Device Server Converter
SKU : 02501BAUXXB087J9F6LF
Brand : CERRXIAN
Product Specifications
Conditionnew
AsinB087J9F6LF
CategoryElectronics
SubcategoryDevice Servers
LeafcategoryPC Accessory
ColorBlack
Connector TypeRJ45
OriginUSA
BrandnameCERRXIAN
Weight1
Product Details
ACCESS SERIAL DEVICES REMOTELY -It is design to realize bidirectional transparent transmission between RS232 and Ethernet.Use this RS232 to Ethernet IP converter to connect, configure and remotely manage RS232 serial devices on an IP network.
QUICKLY CONNECTS DEVICES TO THE INTERNET - The rs232 to ethernet converter supports 300 baud to a 230400bps data rate, connecting a serial device to the ethernet instantly.
MULTIPLE CONTROL MODES - Support Auto-MDI/ MDIX, RJ45 Port with 10 / 100Mbps. Support Work Mode: TCP Server, TCP Client, UDP,VCOM.Support Flow control CTS/RTS.
FLEXIBLE INSTALLATION - The rugged aluminum housing with mounting bracket provides reliable performance that can be used in almost any environment.
WIDELY COMPATIBLE - Support all Windows systems, such as XP/WIN7/WIN8/WIN10.Suitable for CNC machinery, process control equipment, serial printers,access key panels, video cameras, card readers,etc.TIP:If you need a drive, please contact us.
Product Ranking
#20 in Computer Networking Device Servers
Product Description
The rs232 to ethernet converter is designed for PC software that uses serial port mode and cannot communicate with networked devices.Receive the data of the specified virtual serial port, and then send the data out in the form of network data, and convert it back to serial data.
It is internally integrated with TCP/IP protocol.User can apply it to device networking communication.
Features:UART Interface:RS232 Male
Network Interface:RJ45 port with 10/100Mbps
Support Auto-MDI/MDIX
Support Work Mode: TCP Server, TCP Client,VCOM
Support virtual serial port(VCOM)
Support Web Browser Settings
Support Baud-rate 300bps~230400bps
Support Reload function
Support Modbus RTU
Support Flow control CTS/RTS.
Support IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Network transmission rate:10/100Mbps
LED Indicator:DC 5V Power,Link/ACT,TX,RX,
Power Consumption<1.8 W
Operating Temperature -10-50°C.
Storage Temperature: -20~70°C
Humidity: 10%~90%, no condensation
Size:7.1x5.7x2.3cm
Support all Windows systems, such as XP/WIN7/WIN8/WIN10
Application:Industrial Data Transmission, Industrial Automation,Smart Home, Power Control, Environmental Monitoring, Power Monitoring, Self-Service Banking System, Telecom Machine Room Monitoring,etc.
Package:1x Serial Device Server,1x db9 serial cable,1x DC 5V Adapter,1x User Manual
Product Description
The rs232 to ethernet converter is designed for PC software that uses serial port mode and cannot communicate with networked devices.Receive the data of the specified virtual serial port, and then send the data out in the form of network data, and convert it back to serial data.
It is internally integrated with TCP/IP protocol.User can apply it to device networking communication.
Features:UART Interface:RS232 Male
Network Interface:RJ45 port with 10/100Mbps
Support Auto-MDI/MDIX
Support Work Mode: TCP Server, TCP Client,VCOM
Support virtual serial port(VCOM)
Support Web Browser Settings
Support Baud-rate 300bps~230400bps
Support Reload function
Support Modbus RTU
Support Flow control CTS/RTS.
Support IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Network transmission rate:10/100Mbps
LED Indicator:DC 5V Power,Link/ACT,TX,RX,
Power Consumption<1.8 W
Operating Temperature -10-50°C.
Storage Temperature: -20~70°C
Humidity: 10%~90%, no condensation
Size:7.1x5.7x2.3cm
Support all Windows systems, such as XP/WIN7/WIN8/WIN10
Application:Industrial Data Transmission, Industrial Automation,Smart Home, Power Control, Environmental Monitoring, Power Monitoring, Self-Service Banking System, Telecom Machine Room Monitoring,etc.
Package:1x Serial Device Server,1x db9 serial cable,1x DC 5V Adapter,1x User Manual
